Yamaha CZR15

15 inch Passive Speaker

$0 Tax $72 Back or Join VIP for upfront discounts.

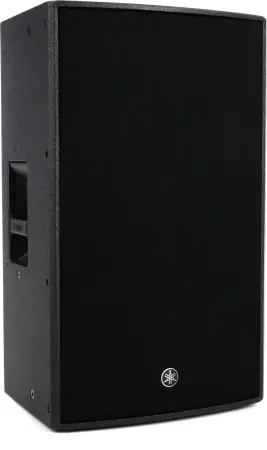

Yamaha CZR15 | 15 inch Passive Speaker | 1600W Peak with 129dB SPL

The Yamaha CZR15 is a 15-inch passive PA speaker built for high-output live sound with clear highs, strong low-end response, and flexible deployment options. With 1,600W peak power handling, 129dB SPL, and bi-amp capability, it is a strong choice for portable PA systems, installed sound, and stage monitoring.

Passive PA Speaker

Yamaha CZR15 is a high-performance 15-inch passive PA speaker designed for live sound reinforcement, portable event systems, and installed audio applications. Its 2-way bi-ampable design, high SPL capability, and flexible mounting options make it a practical choice for users who need powerful output, clear vocal reproduction, and easy system integration.

Yamaha CZR15 Competitive Differences

  • 1,600W peak power handling with up to 129dB SPL for high-output sound reinforcement
  • Rotatable constant directivity horn supports vertical or horizontal placement for flexible system design
  • Custom transducers with neodymium magnets deliver detailed highs and controlled low-end performance
  • Compatible with Yamaha PX Series amplifier speaker processor tuning settings for optimized system performance

Yamaha CZR15 Description

The Yamaha CZR15 is built for users who need strong sonic performance from a passive loudspeaker in a wide range of sound reinforcement environments. This 2-way cabinet combines a 15-inch low-frequency driver with a 2-inch high-frequency compression driver to deliver powerful output, clear detail, and dependable coverage for front-of-house or monitor use.

Its custom-designed transducers are engineered for both impact and clarity. The 15-inch woofer uses a 3-inch voice coil, cast-aluminum frame, and neodymium magnet to produce tight, controlled low end with solid mid-bass and vocal definition. The high-frequency section features a titanium diaphragm, 2-inch voice coil, 1-inch throat compression driver, and neodymium magnet for articulate top-end response.

The cabinet is designed for easy integration into different system configurations. A rotatable horn allows the Yamaha CZR15 to be used vertically or horizontally, while the constant directivity design helps maintain smooth and even coverage. It can also function effectively as a stage monitor, making it a flexible option for rental companies, venues, musicians, and production professionals.

The plywood enclosure is both lightweight and durable, finished with a premium-grade polyurea coating for added protection in demanding environments. When paired with a Yamaha PX Series amplifier, the speaker can also take advantage of dedicated processor tuning settings for EQ, limiting, crossover management, and delay alignment in larger systems.

CZR15 Features

  • 2-way passive loudspeaker with 15-inch LF driver and 2-inch HF compression driver
  • Bi-ampable design for flexible system configuration
  • 1,600W peak power handling
  • 800W program power rating
  • Maximum peak SPL of 129dB at 1 meter
  • Custom-designed transducers with neodymium magnets
  • Titanium diaphragm high-frequency driver for detailed high-end response
  • Rotatable horn for vertical or horizontal mounting orientation
  • 90° horizontal by 50° vertical coverage
  • Constant directivity horn for smooth, even sound dispersion
  • Compatible with Yamaha PX Series amplifier processor tuning settings
  • Plywood cabinet with durable polyurea coating
  • Can be used in main PA or stage monitor applications
  • Dual SpeakON parallel inputs

CZR15 Specifications

  • Powered: No
  • Power Configuration: 2-way Passive/Bi-amped
  • LF Driver Size: 15 in woofer, 3 in voice coil with neodymium magnet
  • HF Driver Size: 2 in HF compression driver
  • Impedance: 8 ohms
  • Power Rating: 800W Program
  • Total Power: 1600W Peak
  • Inputs: 2 x SpeakON (parallel)
  • Frequency Range: 43Hz-20kHz (passive), 34Hz-20kHz (with DSP processing)
  • Crossover Frequency: 2.0kHz
  • Maximum Peak SPL: 129dB SPL @ 1m
  • Horizontal Coverage Angle: 90 degrees
  • Vertical Coverage Angle: 50 degrees
  • Enclosure Material: Plywood cabinet with polyurea coating
  • Mounting Options: 2 x 1.37 in (35mm) pole sockets, 12 x M10 fly points, wedge position
  • Dimensions: 30 x 17.7 x 18.1 in
  • Weight: 47 lb
  • Manufacturer Part Number: CZR15
