Full Range 10-Inch Loudspeaker
The

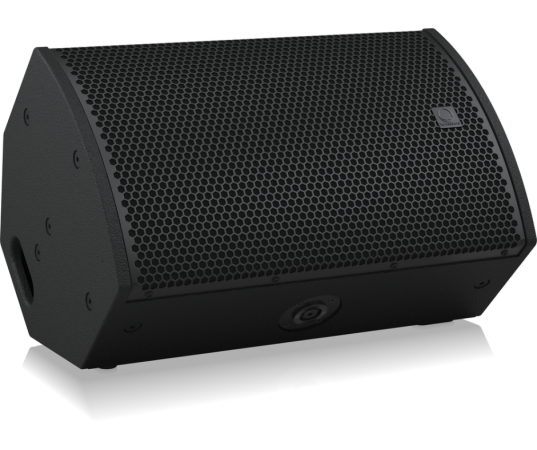

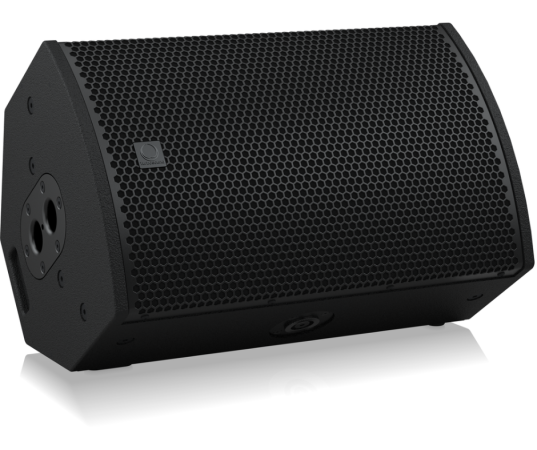

Turbosound TS-PQ10 is a high-performance 2-way passive loudspeaker delivering 1,400 watts peak power, engineered for touring and installation environments. With its compact 10" design and advanced Catenary waveguide, it’s a versatile solution for FOH, side-fill, monitor, or delay line applications, offering precise coverage and compatibility with Lab Gruppen amplification systems.
Turbosound TS-PQ10 Competitive Differences
- Rotatable 80° x 50° exponential Catenary horn
- 1400W peak power with compact 10" footprint
Turbosound TS-PQ10 Description
The
TS-PQ10 brings Turbosound’s touring-grade performance to a compact and flexible format. At the heart of the system is a 10-inch ferrite low-frequency driver featuring a low-mass voice coil for fast transient response, paired with a 1.7-inch voice coil neodymium high-frequency compression driver. The drivers are optimized by an internal passive crossover, housed in a reflex-loaded enclosure.
The rotatable exponential Catenary horn provides 80° horizontal by 50° vertical dispersion, allowing the speaker to be positioned in multiple orientations without compromising coverage. This makes it an ideal choice for both fixed installations and mobile setups where placement flexibility and directional control are key.
Designed for seamless integration with Lab Gruppen PLM+ and IPX amplification platforms, the TS-PQ10 benefits from factory-designed presets and FIR filter compatibility to ensure consistent, optimized performance across a range of applications.
The cabinet is finished in durable PU semi-matte black paint and constructed from 15 mm (⅝") plywood. It includes a dual pole mount socket, multiple rigging points, and an integrated carry handle for maximum convenience.
Model Features
- Processed passive 2-way speaker with 10" LF driver
- 1400W peak / 350W continuous power
- 1.7" voice coil neodymium compression driver with polyimide diaphragm
- 80° x 50° rotatable Catenary horn
- Internal passive crossover in a reflex-loaded cabinet
- Dual 35 mm pole sockets for flexible mounting
- Multiple rigging points for suspension
- Durable 15 mm plywood enclosure with PU finish

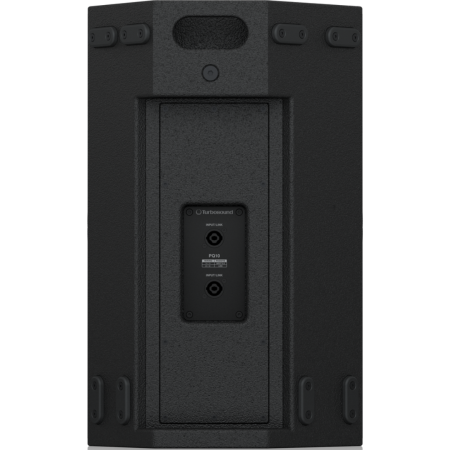

- Twist-locking input and link connectors
Model Specifications
- Power Handling: 350W Continuous / 1400W Peak
- Coverage: 80° Horizontal x 50° Vertical (rotatable horn)
- Dimensions: 21.5 x 13.4 x 12.6 in (54.5 x 34 x 32 cm)
- Weight: 39.2 lb (17.8 kg)
What's In The Box
- TS-PQ10 loudspeaker
- Quick start information
Turbosound TS-PQ10
(TurboSound PQ10_000)
