High-Performance Dual 10-inch Powered Line Array Loudspeaker
The

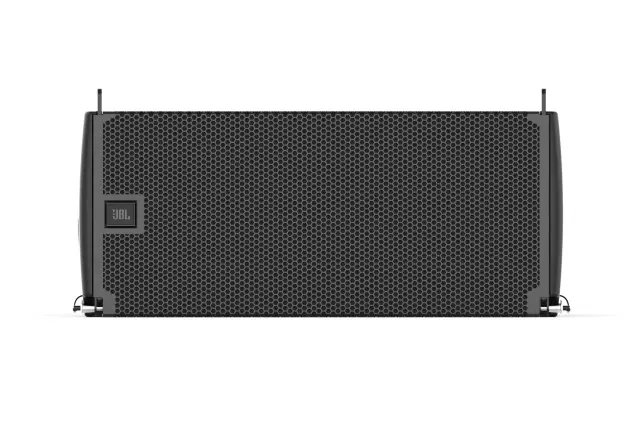

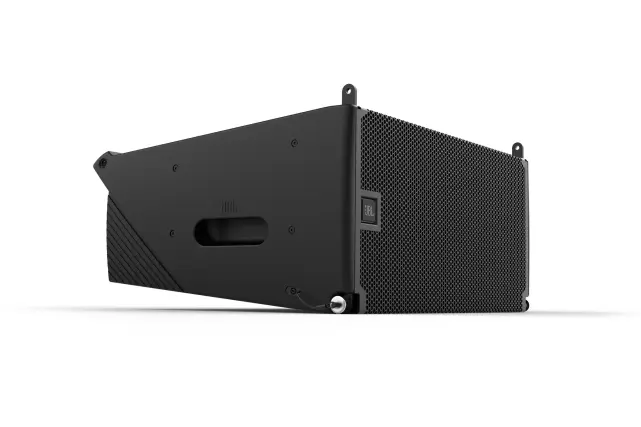

JBL SRX910LA is a two-way active line array loudspeaker designed to deliver professional-grade performance in scalable systems. Perfect for rental companies, touring artists, DJs, and fixed installations, this lightweight and compact system offers exceptional sound fidelity, high SPL, and plug-and-play convenience. With integrated DSP, built-in amplification, and advanced rigging options, the SRX910LA is a reliable solution for medium to large sound-reinforcement applications.
JBL SRX910LA Competitive Differences
- Dual 10-inch JBL Differential Drive® woofers for class-leading output and low distortion
- Built-in passively cooled Class-D amplifier delivering 600W total power
- Frequency range of 53 Hz–19 kHz with a wide 105-degree horizontal coverage
- Innovative three-point rigging system for versatile and scalable configurations
- Integrated user-controllable DSP with LevelMax limiting for transducer protection
- Durable composite enclosure with aluminum baffle and plywood internal bracing
- Dual Ethernet ports with Neutrik etherCON connectors supporting HARMAN HControl Ethernet
- Compatible with JBL Performance software for system configuration and control
- Compact and truck-pack friendly design
JBL SRX910LA Description
The
JBL SRX910LA embodies the pinnacle of portable sound-reinforcement technology. Featuring dual 10-inch Differential Drive® woofers and a three-inch neodymium compression driver, this loudspeaker achieves superior audio fidelity and maximum SPL. The Class-D amplifier and DSP make setup effortless, ensuring consistent performance across all applications.
Ideal for a variety of professional audio scenarios, from touring events to permanent installations, the SRX910LA offers exceptional flexibility with its innovative rigging system and comprehensive control via JBL Performance software. The rugged yet lightweight composite enclosure ensures durability without sacrificing portability, making it the perfect solution for demanding sound environments.
SRX910LA Features
- Two 10-inch neodymium Differential Drive® woofers
- One 1.5-inch exit compression driver with three-inch voice coil
- Built-in Class-D amplifier:
- Frequency range: 53 Hz–19 kHz
- Maximum SPL: 135 dB
- 105-degree nominal horizontal coverage

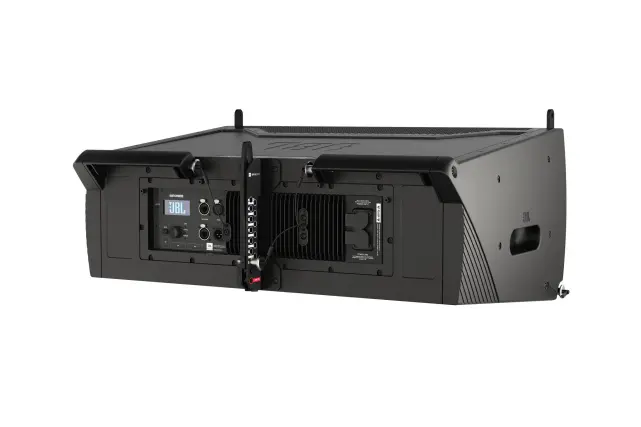

- Integrated user DSP with rear-panel LCD control
- Durable polypropylene and aluminum construction with recessed handles
- Compatible with JBL Performance software on Windows, macOS, and iPad OS
SRX910LA Specifications
- Frequency Range (-10 dB): 53 Hz–19 kHz (array preset)
- Coverage Pattern: 105 degrees nominal (400 Hz–16 kHz)
- Maximum SPL: 135 dB
- Amplifier Design: Class-D, 600W total power
- Drivers:
- LF: 2 x 10-inch JBL Differential Drive® woofers
- HF: 1 x 1.5-inch exit neodymium compression driver
- Enclosure: Polypropylene with aluminum baffle and plywood bracing
- Dimensions (H x W x D): 12.0 x 28.2 x 20.5 in (305 x 716 x 519 mm)
- Net Weight: 59 lbs (26.7 kg)
