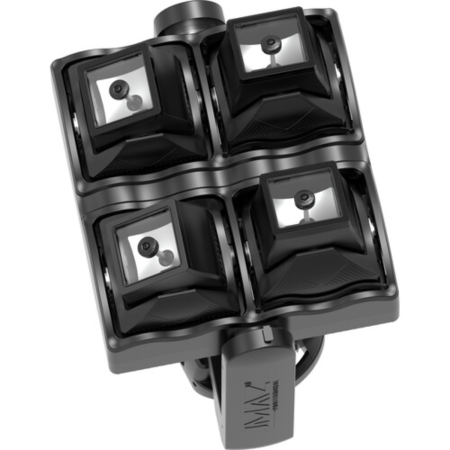

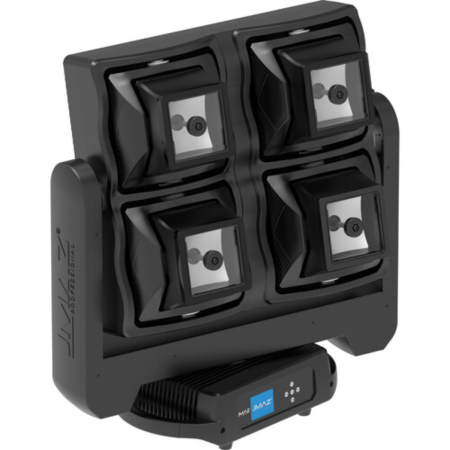

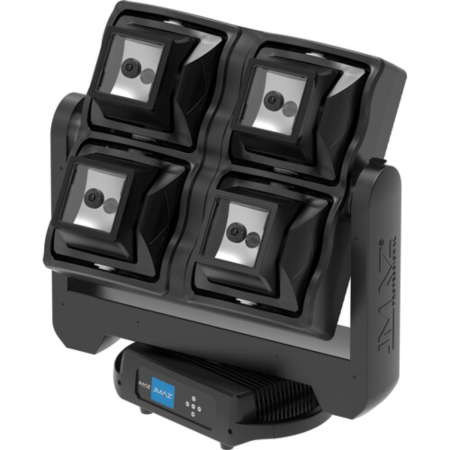

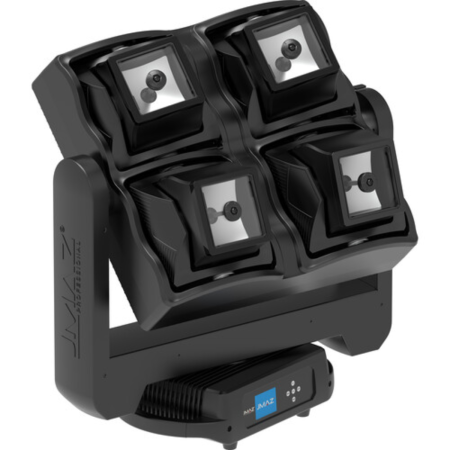

RGBW Quad Moving Head Fixture
The JMAZ Centipede Quadro combines four individually controlled RGBW heads, animated RGB LED rings, and full-fixture movement in one intelligent lighting system. Its sharp beams, pixel control, color macros, and professional network protocols make it useful for concerts, clubs, DJ events, touring productions, and large-stage lighting designs.
JMAZ Centipede Quadro Competitive Differences
- Four 60W RGBW LED heads create sharp, independently controlled beams
- 120 RGB SMD LEDs produce animated ring effects around the main heads
- Individual head pixel control supports layered and coordinated visual effects
- Full-fixture movement combines with individual 76° head articulation
- 16-bit RGBW color mixing provides smooth and precise color transitions
- Variable 2500K to 8000K color temperature produces warm through cool white output
- Supports DMX512, RDM, Art-Net, sACN, and Kling-Net control protocols
- Produces up to 22,140 lux at 3 meters through a narrow 3.5° beam
JMAZ Centipede Quadro Description
The JMAZ Centipede Quadro is designed for lighting professionals who need powerful moving beams and animated pixel effects from one multi-head fixture. Four 60W RGBW LEDs generate focused 3.5° beams with an output of up to 22,140 lux at 3 meters.
Each main head is surrounded by 30 RGB SMD LEDs, providing a total of 120 ring LEDs for additional color and motion effects. Individual pixel control, built-in virtual colors, movement presets, and dynamic ring macros make it possible to create detailed looks ranging from synchronized beam patterns to eye-catching animated effects.
The fixture provides continuous and extended movement options along with individual 76° head articulation. Pan and tilt inversion, multiple DMX personalities, and 16-bit RGBW color mixing support accurate programming for complex stage designs.
DMX512, RDM, Art-Net, sACN, and Kling-Net compatibility allows the fixture to integrate into traditional DMX systems and advanced networked lighting environments. Electronic dimming, high-speed strobing, and a variable 2500K to 8000K color temperature provide additional control over intensity, movement, and white-light appearance.

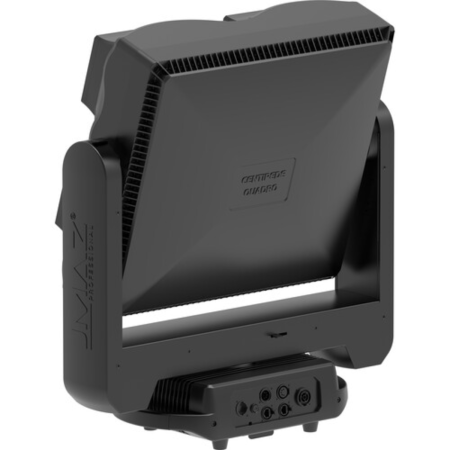

The fan-cooled housing supports floor-base and omega-bracket mounting. A powerCON TRUE1 power cable, 5-pin DMX cable, mounting brackets, and a safety cable are included for professional installation and operation.
Centipede Quadro Features
- Four 60W RGBW LED moving heads
- 120 RGB SMD ring LEDs rated at 0.2W each
- Eight controllable pixel zones
- Individual head pixel control
- Individual 76° head movement
- Continuous and extended full-fixture movement
- 16-bit RGBW color mixing
- Adjustable 2500K to 8000K color temperature
- Built-in virtual colors
- Dynamic ring color and effect macros
- Built-in movement presets and macros
- Electronic dimming from 0 to 100%
- Electronic shutter and strobe from 0 to 25Hz
- Pan and tilt inversion
- 38-, 46-, and 88-channel DMX modes
- DMX512, RDM, Art-Net, sACN, and Kling-Net control
- 5-pin XLR DMX input and output
- RJ45 network input and output
- powerCON TRUE1 power input and output
- Fan cooling
- Floor-base and omega-bracket mounting options
- IP20 rated
Centipede Quadro Specifications
- Fixture Type: Intelligent RGBW quad moving head
- Main Light Source: 4 RGBW LEDs, 60W each
- Ring Light Source: 120 RGB SMD LEDs, 0.2W each
- Pixel Zones: 8
- Colors: Red, green, blue, and white
- Color Temperature: 2500K to 8000K
- Beam Angle: 3.5°
- Illuminance at 3m: 22,140 lux
- Illuminance at 5m: 10,090 lux
- Illuminance at 7m: 5,112 lux
- Individual Head Movement: 76°
- Pan Ranges: 270° or 360°
- Tilt Ranges: 360° or 540°
- Dimming: Electronic, 0 to 100%
- Strobe Rate: 0 to 25Hz
- DMX Channel Modes: 38, 46, or 88 channels
- Control Protocols: DMX512, RDM, Art-Net, Kling-Net, and sACN
- DMX Connections: 5-pin XLR input and output
- Network Connections: RJ45 input and output
- Power Connections: powerCON TRUE1 input and output
- Input Voltage: 100 to 240VAC, 50/60Hz
- Power Consumption: 320W
- Fuse: F12A, 250V
- Power Linking: Up to 6 units at 110V
- Power Linking: Up to 12 units at 208V or 230V
- Maximum Linked Current: 20A
- Cooling: Fan
- Operating Temperature: 14° to 140°F (-10° to 60°C)
- Mounting: Floor base or omega bracket
- Environmental Rating: IP20
- Exterior Color: Black
- Dimensions: 25 x 22.9 x 10.5 in (63.5 x 58.2 x 26.7 cm)
- Weight: 73.7 lb (33.4 kg)
- Certifications: CE, cETL, FCC, and RoHS
What's In The Box
- JMAZ Centipede Quadro lighting fixture
- powerCON TRUE1 power cable
- 5-pin DMX cable
- Two mounting brackets
- Safety cable
JMAZ JP1004
(JMAZ Centipede Quadro)
