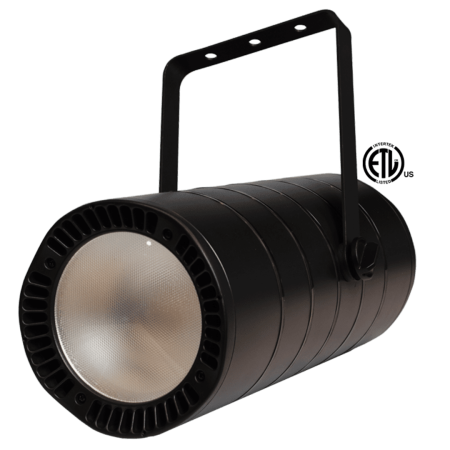

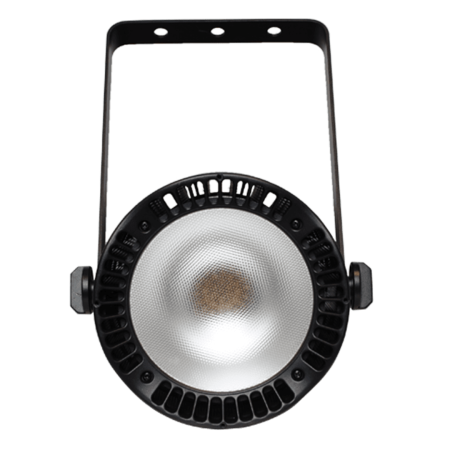

JMAZ Zona DWL

Fanless LED House Light with Tunable White and RGB Effects

The JMAZ Zona DWL is a powerful and versatile 400W LED house light designed for professional installations requiring superior color accuracy, silent operation, and dynamic visual effects. With a wide tunable white range, CRI ≥ 95, and an integrated RGB SMD ring effect, this fixture excels in theaters, houses of worship, and performance venues.

JMAZ Zona DWL Competitive Differences

• 400W total LED output (200W Warm White + 200W Cool White) with 50,000-hour lifespan
• Built-in 50W RGB ring effect (250 x 0.2W SMD LEDs)
• Wide CTO range from 2000K to 12000K for precise white balance
• High color accuracy with CRI ≥ 95
• Fanless design for completely silent operation
• 55° wide beam angle ideal for house lighting
• Multiple DMX modes (8/18/27 channels) and RDM support
• TRUE1 power input and hardwire DMX connections for secure installations
• Includes diffuser, barn doors, hanging yolk, DMX cable, safety cable, and manual

JMAZ Zona DWL Description

The JMAZ Zona DWL is a high-output house light that offers unmatched flexibility and performance in a compact, rugged design. Featuring a combined 400W LED engine—200W warm white and 200W cool white—it delivers brilliant tunable white lighting with a CTO range from 2000K to 12000K. The fixture also includes a vibrant 50W RGB SMD LED ring effect, enhancing ambiance and visual impact during performances or transitions.

Designed with silent fanless cooling, the Zona DWL is ideal for noise-sensitive environments. It supports smooth 16-bit dimming, multiple dimming curves, and strobe effects, with user-selectable control modes via DMX512 and RDM. Its flexible 55° beam angle ensures even coverage across large areas.

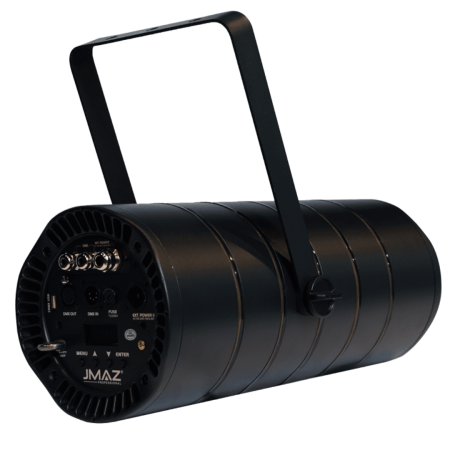

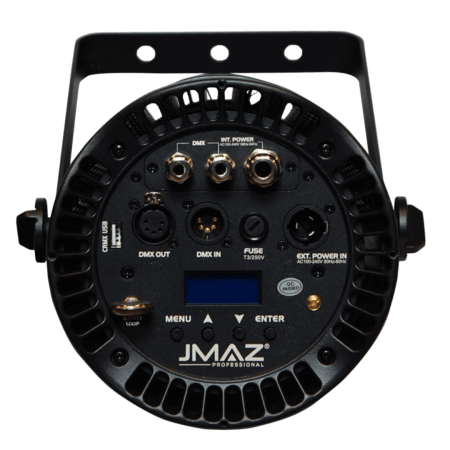

Installation is streamlined with TRUE1 power input, 5-pin DMX In/Out, and included hardware such as a hanging yolk, barn door, and cables. Whether you’re upgrading your venue or integrating into a new lighting system, the Zona DWL delivers premium performance and reliability.

Zona DWL Features

• 400W LED engine (200W Warm White + 200W Cool White)
• RGB Ring Effect: 50W (250 x 0.2W) SMD LEDs
• Wide CTO range: 2000K – 12000K
• CRI ≥ 95 for superior color rendering
• 55° beam angle for broad coverage
• Fanless cooling for silent operation
• 16-bit dimming with variable dimming curves
• Electronic strobe and built-in auto programs
• 3 control modes: 8, 18, or 27-channel DMX
• Supports DMX512 and RDM protocols
• TRUE1 In and hardwire power connection

Zona DWL Specifications

• Light Source: 400W total (200W Warm White + 200W Cool White)
• RGB Ring Effect: 50W (250 x 0.2W SMD LEDs)
• Color Temperature: 2000K – 12000K
• LED Lifespan: 50,000 hours
• CRI: ≥ 95
• Beam Angle: 55°
• Cooling: Passive (fanless)
• Dimming: 16-bit electronic with variable curves
• Control Protocols: DMX512 (5-pin), RDM
• DMX Modes: 8 / 18 / 27 channels
• Power Input: TRUE1 In, hardwire
• Certifications: CE, cETL, FCC, RoHS

What's In The Box

• JMAZ Zona DWL fixture
• Barn door
• Diffuser
• Hanging yolk
• TRUE1 power cable
• 5-pin DMX cable
• Safety cable
• User manual

Jmaz ZONA DWL (JMAZ ZonaDWL)
