This package includes:

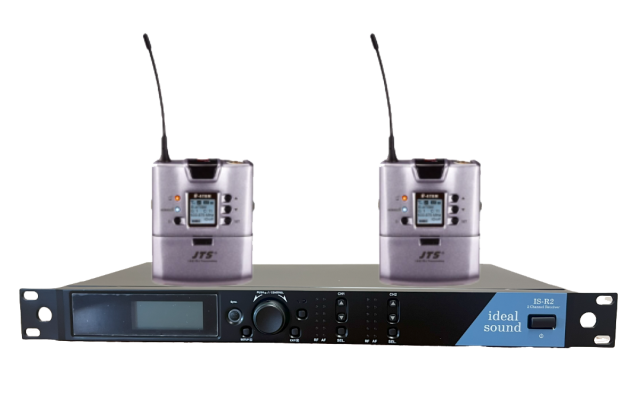

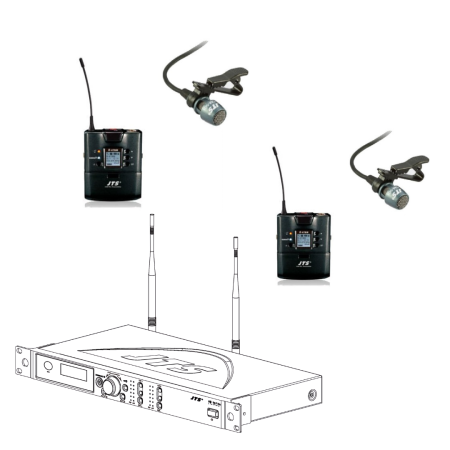

The JTS IS-R2/TBM-CM501 Wireless System Package is a versatile and high-quality audio solution designed for professional wireless microphone applications. This package includes the JTS IS-R2 dual-channel receiver and two JTS R-4 TBM belt pack transmitters, each paired with a CM-501 lapel microphone. Here's an overview of each component:
1. **JTS IS-R2 Dual-Channel Receiver**: The JTS IS-R2 is a dual-channel wireless receiver that ensures reliable and clear audio reception for two wireless microphones simultaneously. It features advanced wireless technology with automatic frequency scanning, providing interference-free operation and high signal stability. The IS-R2 receiver delivers excellent sound quality and is ideal for a variety of applications, including live performances, presentations, and conferences.
2. **JTS R-4 TBM Belt Pack Transmitters with CM-501 Lapel Microphones**: The JTS R-4 TBM belt pack transmitters are compact and lightweight, making them easy to wear and use during performances or presentations. Each transmitter is paired with a CM-501 lapel microphone, a high-quality condenser microphone designed for clear and accurate vocal reproduction. The CM-501 lapel microphones are discreet and perfect for hands-free operation, allowing for natural and uninhibited movement. These microphones are ideal for speakers, presenters, and performers who need to maintain a professional appearance while delivering high-quality audio.
In summary, the JTS IS-R2/TBM-CM501 Wireless System Package offers a reliable and versatile wireless microphone solution for a range of professional audio applications. The dual-channel receiver ensures stable and interference-free operation for two microphones, while the belt pack transmitters and lapel microphones provide clear and accurate vocal performance with the convenience of hands-free operation. This package is perfect for live performances, presentations, conferences, and other events where high-quality wireless audio is essential.
SPECIFICATIONS:
IS-R2:
Frequency Oscillation Mode Phase-locked loop (PLL)
Carrier Frequency Range 470~960 MHz
Remoset Frequency 2.4 GHz Diversity
True diversity Bandwidth 36MHz Signal/Noise Ratio >105dB(A)
Total Harmonic Distortion (Thd) <0.6%@1KHz
Receiving Sensitivity-95dBm，S/N>80dB
Image Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type 1/2λ BNC detachable
Antenna Booster Power DC12V/100mA
Function Display By LCD Contents Of Display Group, channel, frequency, battery level, antenna A/ B, muting level, AF indication, RF indication, channel scanning, output level attenuation, volume indication
Control Functions Power, group, channel, frequency, muting level, button lock, volume, output attenuation (XLR), scan ,Mix Output Audio Frequency Output Level(MAX) Ø6.3 Phone Jack：+4dBu XLR Jack：+10dBu(Line)、-10dBu(MIC)
Audio Frequency Output Impedance 600Ω
Muting Noise muting and tone code locking
Output Port 2 x balanced XLR jack 2 x unbalanced Ø6.3 jack
Power Supply 100~240VAC
Dimension (Mm) 485mm (W) x45mm (H) x 260mm (L)
JTS R-4 TBM w/ CM-501:
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 506-542 MHz
Bandwidth 108MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ± 48KHz (Peak)
Chassis Aluminium alloy
LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector 4P Mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18k Hz
Battery UM3, AA x2
Dimensions 62mm (W) x80.3mm (H) x22.6mm (D)
Weight 93g
Notes Actual product specifications may vary depending on model and region.
J T S IS-R2/TBM-CM501 Lapel Set
(JTS 2 Mic Belt Pack & Lapel Package)
