JTS R-4/JSS-4A

4 Mic Wireless System w/ Condenser Capsules

$3,155.00 Available
$0 Tax $673 Back or Join VIP for upfront discounts.

(more)

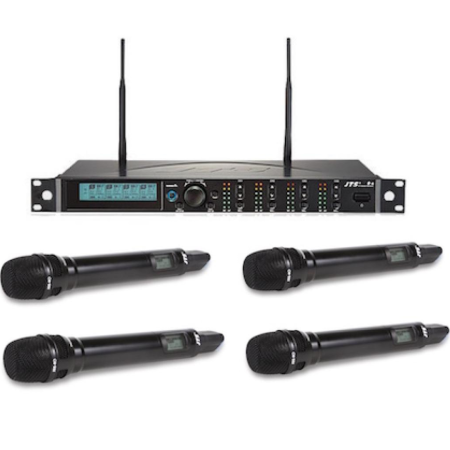

This package includes:

(1) JTS R-4 | 4 Channel Diversity Receiver
(4) JTS JSS-4A | UHF Handheld Transmitter w/ Condenser Capsule

Includes:
(1) JTS R-4 4-channel Receiver
(4) JTS JSS-4A (TC-22 Capsule) Handheld Microphones

The system is designed with JTS newest generation wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel system in a 19” one U case. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.

JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance.

SPECIFICATIONS:

R-4
Frequency Preparation
PLL Synthesized Control
Carrier Frequency Range UHF 506-542 MHz
S/N Ratio > 105dB
T.H.D <0.6% @ 1KHz
Display Contents Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter (LED BAR), RF Meter (LED BAR) , Battery Status
Controls Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 100 ~ 240V
Output Connector 4 independent XLR outputs, and 1 Ø6.3mm and 1 XLR for mixed output
Dimension (m / m) 212.3mm(W)*38.3mm(H)* 144mm(D)

JSS-4A
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 506-542 MHz
Bandwidth 108MHz Wideband
RF Outputs Low / High
Stability < ±10KHz
Frequency Deviation ± 48KHz (Peak)
Chassis Aluminium alloy
LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector 4P Mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 50Hz ~ 18k Hz
Battery UM3, AA x2
Dimensions 50mm (W) x253mm (H) x35.5mm (D)
Weight 93g

JTS Professional Handheld wireless mic system (JTS R-4/JSS-4A)

Battery Life UM3, AA x2 hours
Frequency Response 50Hz ~ 18k Hz Hz
Power Consumption 100 ~ 240V V

Brand JTS
Name JTS R-4/JSS-4A | 4 Mic Wireless System w/ Condenser Capsules
Primary Category Wireless Microphone System
SKU R-4/JSS-4A

Build Material Aluminium alloy
Dimensions 212.3mm(W)*38.3mm(H)*144mm(D) mm
Weight 93g g

Control Interfaces Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad, REMOSET ID Pairing, RF Output Adjust

Choose the JTS R-4/JSS-4A wireless system for reliable multi-channel wireless microphone performance with advanced frequency management, easy installation, and comprehensive control features, ideal for professional audio applications requiring clear sound and flexible setup.

The system uses PLL synthesized control to manage carrier frequencies within the UHF 506-542 MHz range, providing stable and interference-resistant wireless audio transmission. The patented REMOSET feature simplifies synchronization of microphone data with the receiver by pushing a single button, enabling simultaneous data reception for all four microphones.

The JTS R-4/JSS-4A system's uniqueness lies in its patented REMOSET feature for easy data synchronization, a wide 108MHz bandwidth for more compatible channels, and a compact 19" one U receiver case with cascaded antenna and power outputs for convenient installation.

The system features PLL synthesized control, a high S/N ratio of over 105dB, low total harmonic distortion below 0.6% at 1kHz, and detailed display contents including group, channel, frequency, antenna status, mute display, AF and RF meters, and battery status. The patented REMOSET feature allows all microphone data to be sent and received simultaneously with one button push. The microphones have aluminium alloy chassis, LCD displays, and controls for power, AF level, frequency, lock-on mode, and RF output adjustment.

Receiver dimensions are 212.3mm (W) x 38.3mm (H) x 144mm (D). Microphone dimensions are 50mm (W) x 253mm (H) x 35.5mm (D) with a weight of 93g. The system operates on 100-240V AC power. Audio frequency response ranges from 50Hz to 18kHz. The microphones use two AA batteries (UM3). Output connectors include 4 independent XLR outputs, a 6.3mm jack, and an XLR for mixed output on the receiver, and 4P Mini XLR on the microphones.
