Customizable Multi-Circuit Rack Power Distribution Strip
The

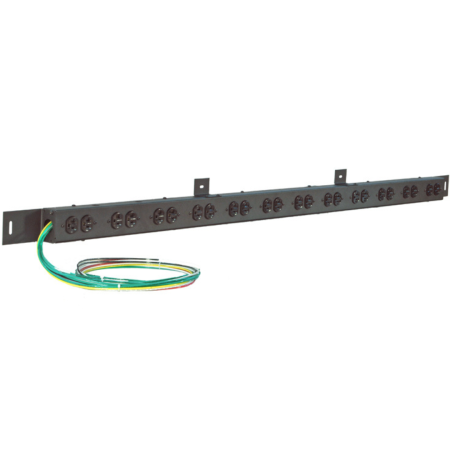

Juice Goose PD1A is a high-capacity power distribution strip designed for professional AV integrators and contractors needing multiple circuits in a single rack space. Offering twelve NEMA 5/15-20R duplex receptacles and custom wiring configurations, it’s an efficient solution for clean, organized power in commercial and fixed installations.
Juice Goose PD1A Competitive Differences
- 12 duplex NEMA 5/15-20R outlets for high circuit density
- Custom wiring options including number and orientation of circuits
- Compact chassis reduces rack clutter and saves space
- Flexible metal conduit, SJT cords, and isolated ground ("IG") options
- Quick production turnaround (typically 3–5 business days)
- ETL listed for safety and compliance
Juice Goose PD1A Description
The
PD1A is part of Juice Goose’s PD Series of modular, rack-mounted power distribution units — tailored for demanding AV, broadcast, and IT environments. With up to twelve duplex receptacles and fully customizable internal wiring configurations, the PD1A delivers precise power distribution where and how you need it. Its slim and durable 63-inch steel chassis allows high circuit density without bulk.
This model supports isolated ground (IG) outlets and custom specifications such as wire gauge, harness length, harness orientation (top or bottom), and conduit options. Ideal for installations where rack-integrated multi-circuit power is required, the PD1A is a contractor-friendly solution for fast and reliable integration.
PD1A Features
- 12 x NEMA 5/15-20R duplex outlets
- Customizable circuits (standard or isolated ground)
- Flexible mounting and wiring configurations
- Conduit and wire harness options available
- Cold rolled steel chassis with textured black powder coat
- Quick-turn production (3–5 days standard)
- Made in the USA
PD1A Specifications
- Chassis Dimensions: 63" L x 2.5" W x 1.62" D
- Mounting Bracket Spacing: 21"
- Minimum Weight: 16 lbs
- Material: Cold Rolled Steel, Textured Black Powder Coat
- AC Outlets: 20A Duplex (standard or IG)
- Wire Gauge: 12 AWG (20A), 10 AWG (30A, PD3 series only)
- Wire Type: Stranded THHN, 600 VAC, 60°C max
- Harness Location: Top or Bottom (configurable)
- Harness Length & Conduit: Custom-specified in feet
- Safety Certification: ETL Listed
JUICE GOOSE PD1A
(Juice Goose PD-1A)
