Heavy-Duty 20A Rackmount Power with Metering and USB Charging
The
Juice Goose RP100-20A is a premium-grade, 20-amp rackmount power distribution unit designed for audio professionals and AV integrators who require more power capacity without sacrificing protection or usability. Built for demanding environments, it features real-time metering, surge suppression, USB power ports, and a robust Tour Classâ„¢ steel chassis.
Juice Goose RP100-20A Competitive Differences
- 20A current capacity with NEMA 5-20P plug for high-demand systems

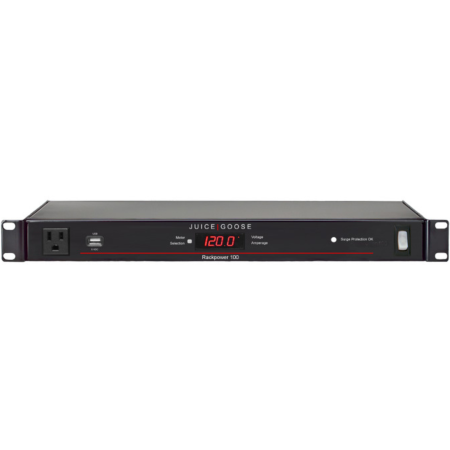

- Dual-function volt/amp digital meter with front-panel toggle

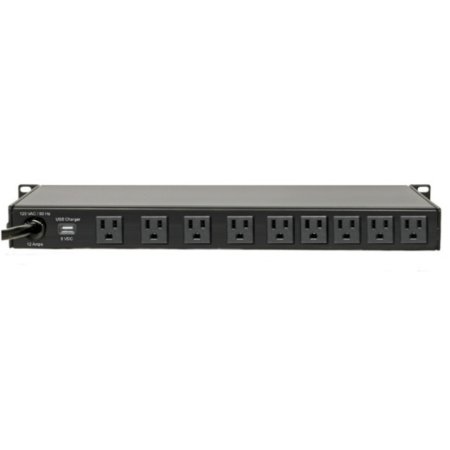

- 11 total switched AC outlets: 1 front, 8 rear 15A, 1 rear 20A
- Dual USB ports (front and rear) for utility lighting or charging devices
- Replaceable MOV surge protection with LED status indicator
- Tour Classâ„¢ chassis: steel unibody design with reinforced rackmount brackets
- 15 ft. 12/3 SJT power cord for extended reach in larger setups
Juice Goose RP100-20A Description
Built to handle serious power distribution needs, the
RP100-20A is ideal for permanent AV installs, mobile racks, and live event setups. It features a power meter that accurately displays voltage and current in 0.10 increments, allowing real-time monitoring of system load and health.
Eleven AC outlets (all switched) offer flexibility, including one on the front panel, eight 15A-rated outlets on the rear, and one 20A-rated outlet on the rear to support higher draw devices. The outlets are rotated and spaced to accommodate bulky wall warts.
For convenience, USB ports on both front and rear panels allow easy access for charging phones, tablets, or powering USB rack lights. Built with a cold-rolled steel 7" deep chassis, the RP100-20A is durable, reliable, and road-ready.
RP100-20A Features
- 20A rackmount power distribution and conditioning
- Dual-function LED volt/amp meter (0.10 resolution)
- USB-A power ports (5VDC) on front and rear
- 11 switched AC outlets: 1 front, 8 x 15A rear, 1 x 20A rear
- Surge protection with replaceable MOV (LED status indicator)
- 15 ft. 12/3 SJT power cord with NEMA 5-20P plug
- Professional Tour Classâ„¢ steel chassis with reinforced rack ears
- 3-year warranty
RP100-20A Specifications
- Input Voltage: 120 VAC, 60Hz
- Current Capacity: 20A max / 16A technical rating
- Power Cord: 15 ft., 12/3 SJT with NEMA 5-20P plug
- Output (All Switched):
- 1 x NEMA 5-15R (front)
- 8 x NEMA 5-15R (rear)
- 1 x NEMA 5-20R (rear)
- USB Ports: 1 front, 1 rear (5VDC)
- Surge Protection: 300 joules, 10,000A peak (replaceable MOV)
- Monitoring Accuracy:
- Voltage: to 0.10V
- Current: 0.25A–25.0A, 0.10A increments
- Chassis: 16-gauge steel with 11-gauge rack ears
- Dimensions (W x H x D): 19" x 1.75" x 7"
- Weight: 12 lbs
- Warranty: 3 Years
JUICE GOOSE RP100-20A
(Juice Goose RP10020A)
