Premium Power Monitoring and Distribution for Pro Audio Racks
The

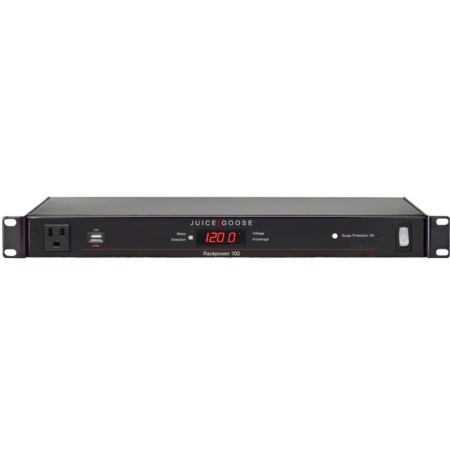

Juice Goose RP100-15A delivers reliable 15A power distribution, line conditioning, and real-time power monitoring in a rugged, tour-ready 1U chassis. Ideal for musicians, audio professionals, and AV integrators, this unit combines advanced features like LED metering, replaceable surge protection, and USB power ports to handle modern demands onstage or in the studio.
Juice Goose RP100-15A Competitive Differences
- Integrated LED volt/amp meter for real-time monitoring of power consumption
- Dual USB ports (front and rear) for utility lights or charging accessories
- 11 total AC outlets: 1 front, 9 rear (15A NEMA 5-15R), rear outlets rotated for wall warts
- Replaceable surge protection module with LED status indicator
- 7-foot power cord with NEMA 5-15P plug
- Heavy-duty Tour Classâ„¢ chassis with reinforced rack ears and flush-mount top
- Front-mounted power switch & breaker for easy access
- Made for pro touring use — supports rack-mounting over 200 lbs
Juice Goose RP100-15A Description
Designed for demanding touring rigs and professional AV setups, the
RP100-15A is a robust power management solution that offers more than just distribution. A bright digital display provides real-time readouts of voltage (to the nearest 0.10V) and amperage (to the nearest 0.10A, up to 25A), with a simple push-button toggle.
A pair of 5V USB ports (one on the front and one on the back) let you power USB lighting or mobile devices, while eleven AC outlets (including nine rotated rear outlets for wall-wart clearance) handle gear of all kinds. The internal MOV surge protection module is easily replaceable, extending the life of the unit. And the 16-gauge Tour Class™ steel enclosure, complete with heavy-duty rack ears, ensures it’s road-ready.
RP100-15A Features
- Digital meter for voltage and current (to 0.10 resolution)
- 1 x USB port (front) + 1 x USB port (rear)
- 11 total AC outlets: 1 front, 10 rear (all switched)
- Rotated and widely spaced rear outlets for wall warts
- Replaceable surge protection with front-panel status LED
- Tour Classâ„¢ all-steel chassis with flush top
- Front-panel circuit breaker/power switch
- UL-rated with 3-year warranty
RP100-15A Specifications
- Input Voltage: 120 VAC, 60Hz
- Current Capacity: 15A max (12A continuous technical rating)
- Power Cord: 7 ft, 14/3 SJT with NEMA 5-15P plug
- AC Outlets: 11 total NEMA 5-15R (9 rear, 1 front, 1 rear with extra spacing)
- Surge Protection: 300 joules / 10,000A peak pulse
- Monitoring Range:
- Voltage: 0.10V resolution
- Current: 0.25A–25A, 0.10A resolution
- Chassis: 16-gauge steel, reinforced rackmount design
- Dimensions (W x H x D): 19" x 1.75" x 7"
- Weight: 12 lbs
- Operating Temp Range: -10°C to +40°C
- Certifications: UL, ETL
- Warranty: 3 Years
JUICE GOOSE RP100-15A
(Juice Goose RP100-15)
