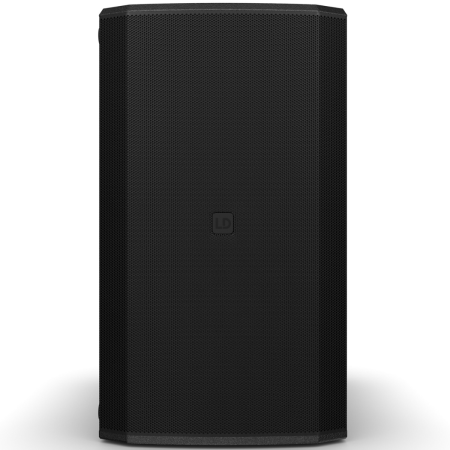

LD Systems MAILA SUB

Powered Dual 15" Bandpass Subwoofer

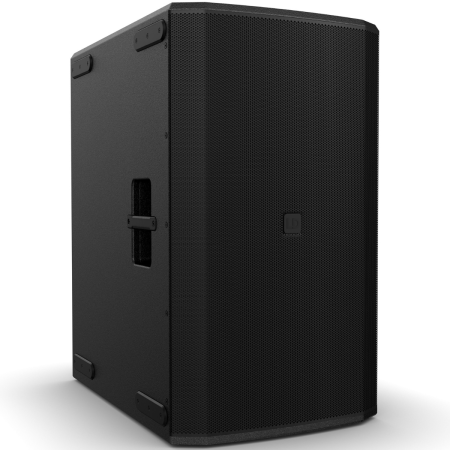

LD Systems MAILA SUB is a high-performance 2x15” powered bandpass subwoofer designed as the low-frequency foundation of the MAILA system. Equipped with a 2.5 kW Class D DSP amplifier and advanced SysCore® processing, it delivers powerful, controlled bass response down to 33 Hz with exceptional clarity and impact.

LD Systems MAILA SUB Competitive Differences

• Dual 15" neodymium drivers in symmetrical bandpass design with 2.5 kW RMS power

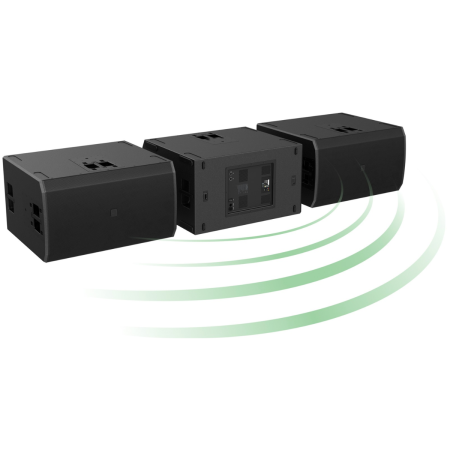

• Cardioid presets with integrated DSP control and wireless app configuration

LD Systems MAILA SUB Description

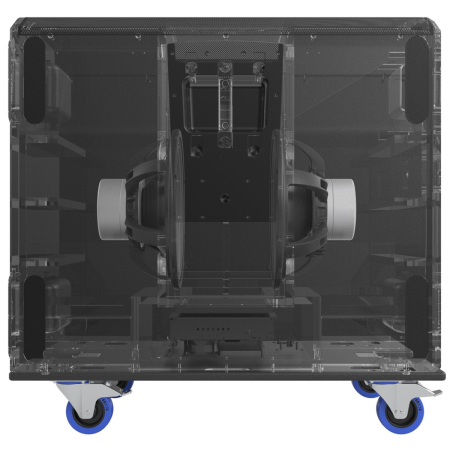

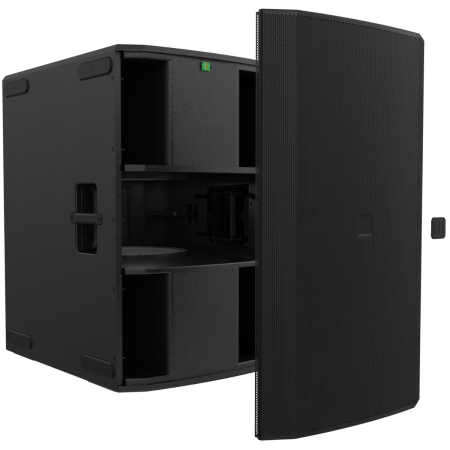

The LD Systems MAILA SUB forms the core low-frequency element of every MAILA system. Its planar wave bandpass design with quarter-wave horn and symmetrical driver construction ensures exceptional impulse compensation and tight, punchy bass reproduction. By positioning the two 15” neodymium drivers opposite each other, the system minimizes mechanical vibration while maximizing acoustic efficiency.

Powered by a 2-channel 2,500 W RMS Class D amplifier with SysCore® DSP, the subwoofer achieves up to 137 dB peak SPL (pink noise, halfspace/1 m) and 132 dB average SPL. The integrated DSP includes fully parametric 10-band EQ, delay line, and selectable presets, including cardioid configurations to significantly reduce rear sound radiation—ideal for stage applications and noise-sensitive environments.

The enclosure is constructed from 18 mm birch multiplex with a durable polyurea coating, built to withstand rigorous touring and installation demands. Four large bass reflex ports optimize airflow and cooling efficiency in both vertical and horizontal orientations, while convection cooling ensures reliable thermal management without fan noise.

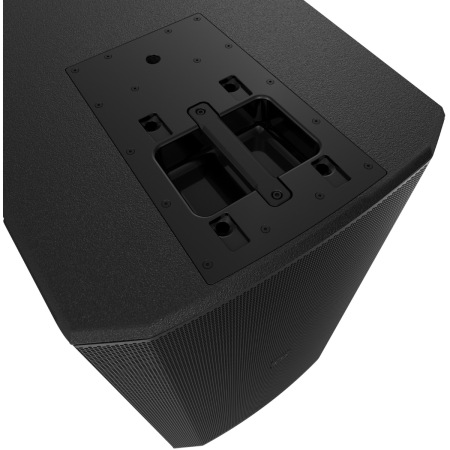

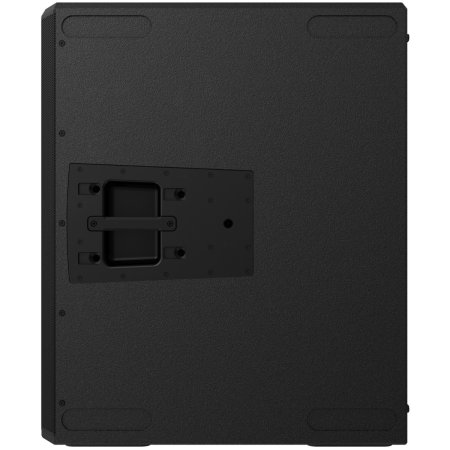

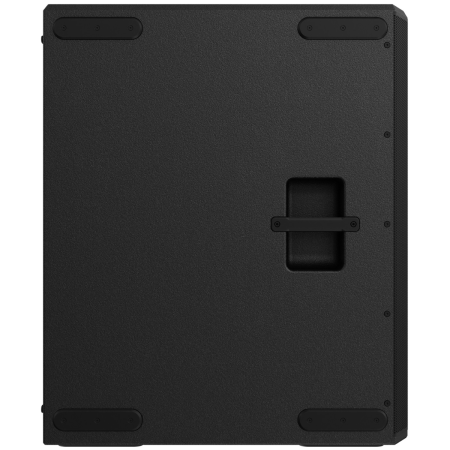

Two integrated docking plates allow vertical or horizontal mounting with MAILA SPA (M20) or MAILA COL modules, offering flexible system configuration. Six ergonomic handles simplify handling during load-in and load-out. For enhanced transport convenience, the optional MAILA SUB CB castor board and protective cover are available separately.

With LogoLink®, Bluetooth® 5.0 antennas are seamlessly integrated into the LD logo, enabling wireless system control via the free MAILA app (iPadOS). The app automatically detects connected MAILA components, assists with system setup—including SAT angle calculation—and provides wireless software updates.

MAILA SUB Features

• Dual 15" high-power bandpass subwoofer
• 2,500 W RMS Class D DSP amplifier with SysCore® processing
• Frequency response down to 33 Hz (-6 dB)
• Max SPL: 137 dB peak (pink noise, halfspace/1 m)
• Cardioid presets for reduced rear sound radiation
• Fully parametric 10-band EQ, delay line, and preset control
• Bluetooth® 5.0 with app control (MAILA app, iPadOS)
• Dual docking plates for vertical or horizontal setups (M20 compatible)
• Four bass reflex ports for optimized airflow and cooling
• 18 mm birch multiplex cabinet with polyurea coating

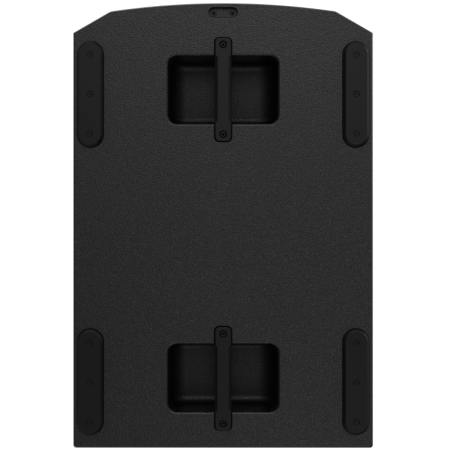

• Six integrated carrying handles
• Optional castor board (MAILA SUB CB) and protective cover available

MAILA SUB Specifications

• RMS Power Output: 2,500 W
• Amp Class: Class D
• Max SPL (Pink Noise, Halfspace/1 m): 137 dB
• Max SPL Average (Sine Burst): 132 dB
• Low Frequency Limit (-6 dB): 33 Hz
• Drivers: 2 x 15" Neodymium
• Voice Coil: 4"

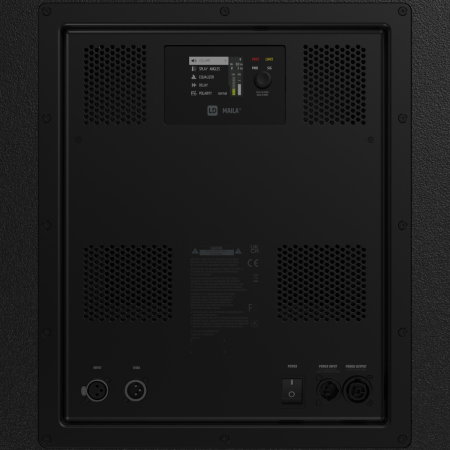

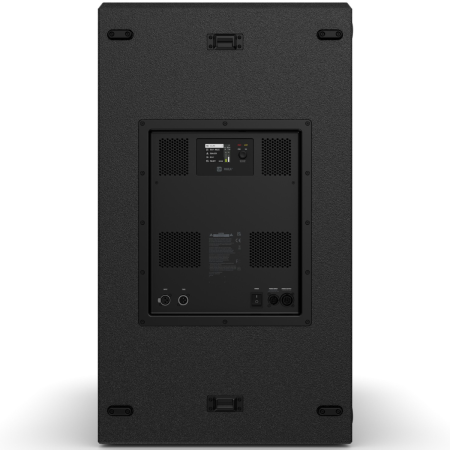

• Inputs: 1 x XLR 3-pin female
• Outputs: 1 x XLR 3-pin male
• Input Impedance (Balanced): 20,000 Ω
• DSP: 10-band fully parametric EQ, delay, presets
• AD/DA Conversion: 24-bit / 48 kHz
• Bluetooth® Version: 5.0
• Operating Voltage: 100 – 240 V AC, 50/60 Hz
• Rated Power Consumption: 1,300 W
• Cabinet Material: 18 mm Birch Multiplex
• Finish: Polyurea coating
• Cooling: Convection cooling
• Dimensions (W x H x D): 21.26 x 36.77 x 31.61 in (540 x 934 x 803 mm)
• Weight: 198 lb (89.8 kg)

What's In The Box

• LD Systems MAILA SUB subwoofer
• Mains cable

LD Systems LDS-LDMAILASUB (LD Systems LDMAILASUB)
