LD Systems Maui 5 W

ULTRA PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH WHITE

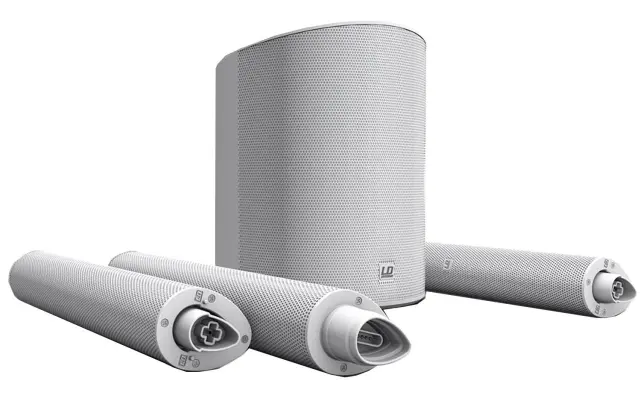

The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.

The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance.

Product number: LDMAUI5W
Product type: PA system
Type: active
Color: white
Max. SPL (continuous): 114dB
Max. SPL (peak): 120dB
Frequency response: 50 - 20000Hz
Dispersion (H x V): 120° x 20°
Overall height: 1985mm
Weight: 11.3kg
Other features: DSP-based signal processing, 4 channel mixer, Bluetooth

Woofer characteristics
Low/mid driver dimensions: 8"
Low/mid driver dimensions (mm): 203.2mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2"
Woofer voice coil (mm): 50.8mm
Cabinet construction: vented
Cabinet material: ABS plastic
Subwoofer width: 305mm
Subwoofer height: 405mm
Depth Subwoofer: 395mm

Mid/Hi System
Midrange size: 4 x 3"
Midrange size: 4 x 76.2mm
Midrange magnet: Neodymium
Midrange brand: Custom-made
Midrange voice coil: 1"
Midrange voice coil: 25.4mm
Mid/Hi system impedance: 4Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: ABS plastic
Mid/Hi system width: 32mm
Mid/Hi system height: 535mm
Mid/Hi system depth: 105mm

Amplifier Module (integrated in Subwoofer)
Amplifier: Class D
Amplifier Output System (RMS): 200W
Amplifier Output System (Peak): 800W
Protection circuits: DSP-based multiband limiter, over-current, short circuit, thermal overload
Cooling: Convection

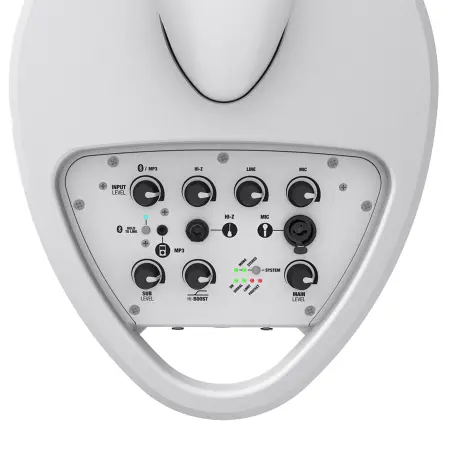

Controls: limiter, Main Level, signal, Mic Level, sub level, BT Pairing, Line Level, on, MP3 / Hi-Z Level, BT level, protect (protection circuit engaged)
Indicators: protect (protection circuit engaged), limit, signal, on
Operating voltage: Switching Power Supply, 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion)
Line inputs: 2 x stereo
Line input connectors: XLR, 6.3 mm Jack
Mic inputs: 1, 6.3 mm Jack, XLR
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm Jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin
DSP characteristics
Bit depth AD/DA converter: 24 / 24bit
Internal sampling frequency: 48kHz

LD Systems MAUI5W (LD Systems Maui 5w)
