LD Systems U304.7 BPH

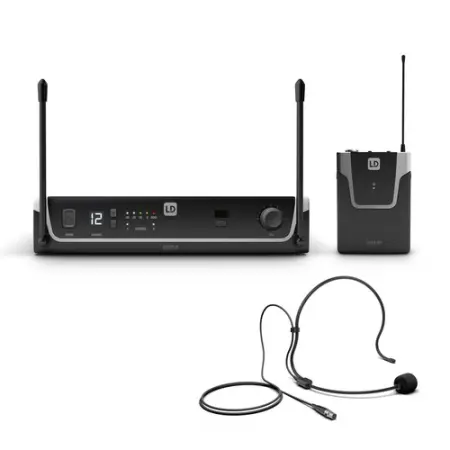

LD Systems LDS-U3047BPH - Wireless Microphone System with Bodypack and Headset 470 - 490 MHz

Developed in Germany, the UHF diversity radio systems of the U300 series offer impressive audio performance. They achieve a range of 100 m under ideal conditions.

Six U300 systems can be used simultaneously. A convenient one-touch synchronization of transmitter and receiver via infrared is used for fast, problem-free radio connection, and the squelch with pilot tone ensures a fail-safe function.

The U300 transmitters have an output power of 10 mW and a 10-hour runtime with two AA batteries. The frequency response of the handheld microphone ranges from 55 Hz - 16 kHz, and with a lower cut-off frequency of 25 Hz, the bodypack is also suitable for the transmission of 5-string bass guitars with a low H-string. The input level of the bodypack can be adjusted in three stages to adapt to active and passive guitars and basses, and the practical standby position of the operating switch enables temporary muting. The U300 receiver is equipped with a bright LCD channel display, an LED chain for displaying the audio signal strength as well as a balanced XLR and unbalanced 6.35 mm jack output. The jack output can be switched to the instrument level for direct connection to guitar and bass amplifiers.

The radio systems of the U300 series have a fresh, modern look and are available as vocal sets with the receiver and a dynamic hand-held microphone with a cardioid polar pattern, bodypack, and headset or bodypack and lavalier microphone. The exchange capsules of the U500 series can be used to change the hand microphone characteristics. U300 Instrument Sets are available with a bodypack and clip-on microphone for wind instruments or a double-shielded, low-capacitance cable for guitars and basses.

Features:

UHF diversity wireless system with FM technology
12 selectable channels
100 meter range under ideal conditions
Up to 6 systems can be used simultaneously
ASC infrared synchronisation between transmitter and receiver
Squelch with pilot tone
10-hour transmitter operating time with two AA batteries
Receiver in sturdy metal housing
Optional rack mounting kit as accessory

LD Systems LDS-U3047BPH (LD Systems U3047BPH)
