CAD WX1800BP

Bodypack UHF Wireless System w/ Lavalier, Headset & Instrument Cable

$249.99 Available
$0 Tax $68 Back or Join VIP for upfront discounts.

(more)

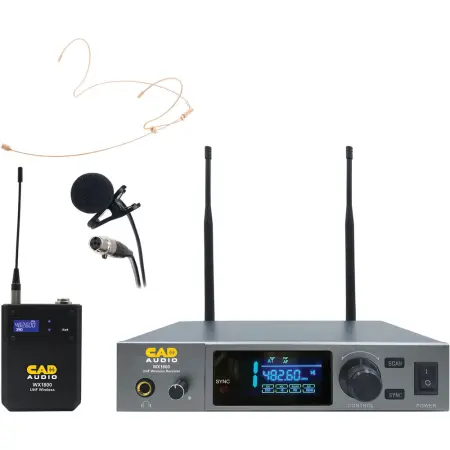

Bodypack UHF Wireless Microphone System

CAD WX1800BP is a complete UHF wireless system with a bodypack transmitter and multiple audio input options—including lavalier mic, headset mic, and instrument cable—making it ideal for speakers, performers, and musicians who need flexibility and mobility on stage or during presentations.

CAD WX1800BP Competitive Differences

  • Includes headset mic, lavalier mic, and instrument cable for versatile use
  • True diversity receiver with rackmount and antenna relocation kit included

CAD WX1800BP Description

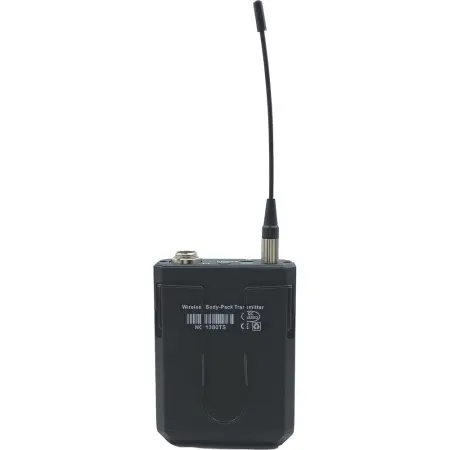

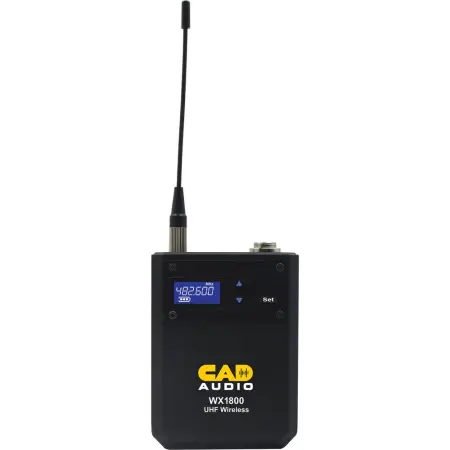

The CAD WX1800BP is a frequency-agile UHF wireless system built to perform reliably in demanding environments. Operating between 550–590 MHz, the system supports 100 selectable frequencies and up to 20 systems running simultaneously—perfect for stage productions, worship services, and corporate AV setups. The rugged metal bodypack transmitter connects easily to the included lavalier and headset microphones, or the instrument cable for guitar and other instruments. This flexibility allows users to switch between applications without changing transmitters. The system delivers clear audio up to 394 feet away, ensuring dependable performance even in large venues. Setup is simple thanks to auto-scan frequency selection and IR sync pairing. The true-diversity tabletop receiver includes both XLR and 1/4" outputs for integration into any sound system. Metal construction ensures durability, and the system operates for over 10 hours on just two AA batteries. The WX1800BP includes everything needed to get started—including a rackmount kit, antenna relocation hardware, and multiple mic and cable options—making it one of the most versatile wireless solutions in its class.

Model Features

  • Includes lavalier mic, headset mic, and guitar/instrument cable

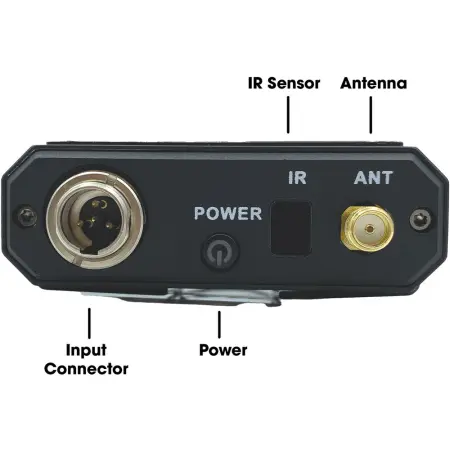

  • 100 selectable UHF frequencies with IR sync and auto-scan
  • True-diversity receiver with backlit LCD display
  • Up to 394 ft operating range

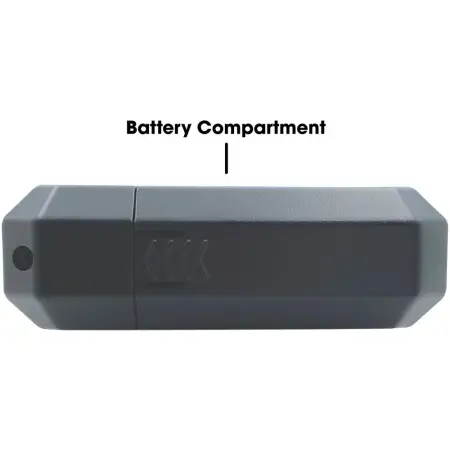

  • Bodypack runs 10+ hours on two AA batteries
  • Includes rackmount kit and antenna relocation hardware
  • Balanced XLR and unbalanced 1/4" outputs

Model Specifications

  • Wireless Technology: Analog UHF (550–590 MHz)
  • Frequency Channels: 100
  • Max Operating Range: 394 ft (120.1 m)
  • Microphones Included: 1x Lavalier, 1x Headset
  • Instrument Input: 1x Guitar Cable (TA4F)

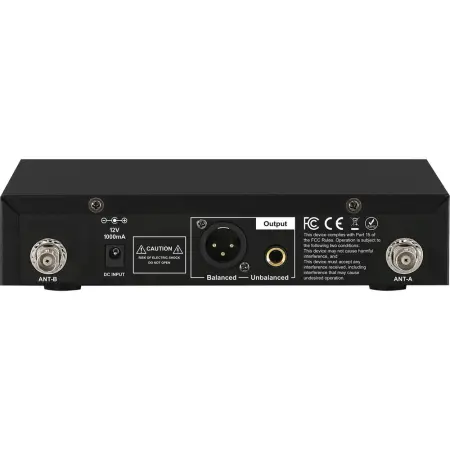

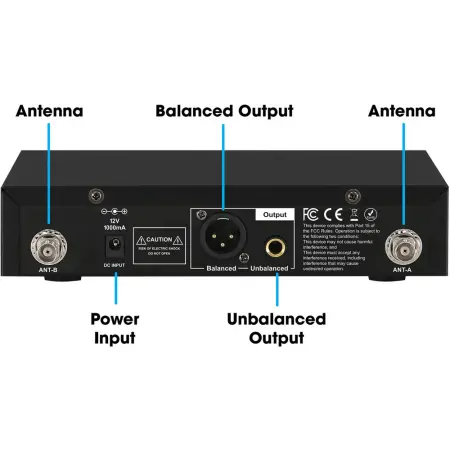

  • Receiver Outputs: XLR balanced, 1/4" unbalanced
  • Audio Frequency Response: 30Hz – 18kHz
  • Transmitter Battery Life: 10 hours (2x AA)
  • Receiver Dimensions: 16.8 x 12.8 x 2.8 in
  • Package Weight: 4.235 lb
  • UPC: 631922110234

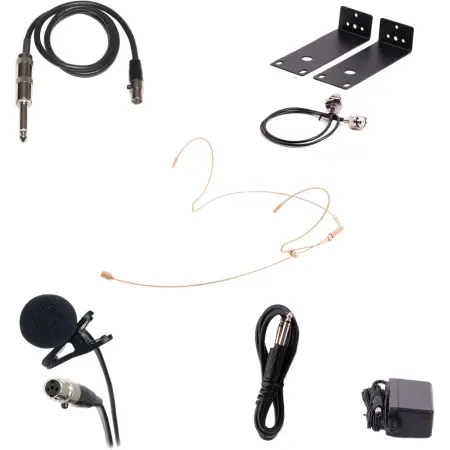

What's In The Box

  • RX1800 Receiver
  • TX1800 Bodypack Transmitter
  • Lavalier Microphone
  • Headset Microphone
  • Guitar/Instrument Cable
  • Rackmount Kit
  • 2x Antennas
  • Power Supply
  • Quick Start Guide

CAD Audio AMS-WX1800BP (CAD WX-1800 BP)

Battery Life 10 hours hours
Connectivity Protocols Analog UHF (550–590 MHz)
Frequency Response 30Hz – 18kHz Hz
Max SPL 394 ft ft
Power Consumption 2x AA batteries watts

Brand CAD
Name CAD WX1800BP Bodypack UHF Wireless System
Primary Category Wireless Microphone System

Channels 100 selectable frequencies

Dimensions 16.8 x 12.8 x 2.8 in inches
Included Accessories Lavalier mic, headset mic, guitar/instrument cable, rackmount kit, 2 antennas, power supply, quick start guide
Mounting Options Rackmount kit included
Weight 4.235 lb lb

Warranty Length Not specified years

The CAD WX1800BP offers flexibility with multiple microphone and instrument input options, a long operating range, and reliable frequency agility with 100 selectable channels. Its rugged metal bodypack and included accessories make it a complete wireless solution for performers and presenters needing mobility and dependable audio performance.

The system uses analog UHF technology operating between 550–590 MHz with true diversity reception to reduce interference. Users can easily select frequencies via auto-scan and IR sync pairing. The bodypack transmitter connects to various microphones or instruments, transmitting clear audio wirelessly to the receiver, which outputs balanced and unbalanced signals to sound systems.

The WX1800BP stands out by including multiple microphone types and an instrument cable in one package, supporting 100 frequency channels with true diversity reception, and providing a long 394 ft range. Its rugged metal construction and included rackmount and antenna relocation kits enhance durability and installation flexibility.
