The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

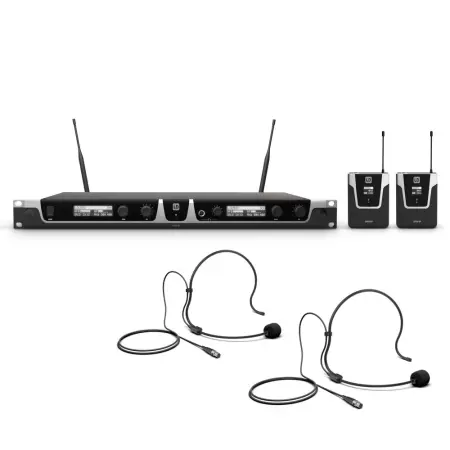

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
SPECIFICATIONS:
General
Product type
Wireless Microphone Systems
Type
Headsets
Transmission frequency range
584 - 608 MHz
Weight
5,235 kg
Items in this set

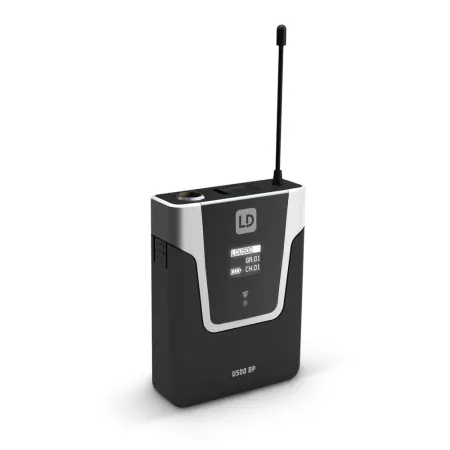

LD Systems U505 BP Bodypack transmitter
View items
Product type
Wireless Microphone System Accessories
Type
Bodypack
Transmission frequency range
584 - 608 MHz
Frequency response
30 - 16000
Channels
96 (8 groups of 12 channels)
Groups
8
Inputs
Mini-XLR (3-pin)
Signal-to-noise ratio
>90 dB
Rated HF output power
Variable (2mW, 10mW, 30mW)
Controls
2 x arrow keys (up/down value entry), Power On/Off, Set
Indicators
OLED Display
Operating voltage
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
86 mm
Depth
23 mm
Weight
0,09 kg
Other features
detachable antenna, IR frequency synchronisation, Pilot tone squelch, switchable gain, switchable gain, switchable RF power
LD Systems U505 R2 Dual receiver
View items
Product type
Wireless Microphone System Accessories
Type
Receivers, true diversity
Transmission frequency range
584 - 608 MHz
Modulation Type
FM
Channels
2 x 96 (8 groups of 12 channels)
Frequency response
30 - 16000
Groups
8
Antenna inputs
2
Antenna connector
BNC
Signal-to-noise ratio
> 100 dB
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 0.1 %
Controls
2 x volume, Down, Power On/Off, Up, volume
Indicators
2 x OLED Display
Audio output, balanced
2 x XLR
Audio output, unbalanced
2 x 6.3 mm TS
Audio mix output, balanced
XLR
Accessories (included)
2 x antenna, Audio cable, power adapter
Width
484 mm
Audio mix output, unbalanced
6.3 mm jack
Height
44 mm
Depth
200 mm
Max. output level
+10 dBu
Weight
2,05 kg
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Other features
channel search function, IR frequency synchronisation, Pilot tone
Operating voltage
12 V DC, 1000 mA
LD Systems WS 100 MH 1 Headset
View items
Product type
Wireless Microphone System Accessories
Type
Headsets
Frequency response
20 - 20.000
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Accessories (included)
Foam windscreen
Weight
0,049 kg
LD Systems WS 100 MH 1 Headset
View items
Product type
Wireless Microphone System Accessories
Type
Headsets
Frequency response
20 - 20.000
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Accessories (included)
Foam windscreen
Weight
0,049 kg
