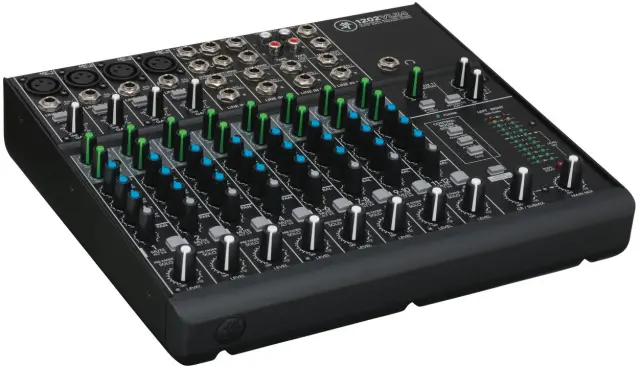

Mackie 1202VLZ4

Mackie 1202VLZ4 12-Channel Analog Mixer | Rugged and Reliable Audio Solution

Premium-Quality 12-Channel Mixer with Onyx Preamps

Competitive Differences

• 4 premium Onyx mic preamps offer a wide 60 dB gain range for natural, transparent sound.
• Sealed rotary controls provide extra protection against dust, grime, and spills.
• Built for durability with Mackie's signature rugged construction and long-term reliability.
• Incredible sound quality with a 128.5 dB dynamic range for clean, punchy mixes.

Full Description

Features

• 12-channel analog mixer featuring Mackie's signature high-headroom/low-noise design
• 4 Onyx mic preamps with up to 60 dB gain for professional sound quality
• Ultra-low-noise performance ensures clean, clear sound
• Sealed rotary controls resist dust and grime for long-term durability
• High-resolution stereo meters for quick visual feedback
• 3-band EQ on mic/line channels for precise sound shaping
• 128.5 dB dynamic range for full, punchy mixes
• Phantom power for condenser microphones (CH 1-4)
• Rackmountable with optional rack ears

Specifications

• Type: Analog
• Channels: 12
• Inputs (Mic Preamps): 4 x XLR (CH 1-4)
• Inputs (Line): 4 x 1/4" (CH 1-4), 8 x 1/4" (CH 5-12 Stereo), 2 x RCA (Tape)
• Outputs (Main): 2 x XLR , 2 x 1/4"
• Outputs (Other): 2 x RCA (Tape), 2 x 1/4" (Control Room), 1 x 1/4" (Alt)
• Headphones: 1 x 1/4"
• Send/Return I/O: 2 x 1/4" Send , 4 x 1/4" Return
• Phantom Power: Yes (CH 1-4)
• EQ Bands: 3-band (80 Hz, 2.5 kHz, 12 kHz)
• Aux Sends: 1-2 Post
• Busses/Groups: ALT 3-4
• Channel Inserts: Yes (CH 1-4)
• Rackmountable: Yes (Optional)
• Dimensions: 10.7 x 8.9 x 1.8 inches (271 x 226 x 46 mm)
• Weight: 5.5 lbs (2.5 kg) with power supply

What's in the Box

• Mackie 1202VLZ4 Mixer
• External Power Supply
• Owner’s Manual
