Powerful Analog Mixer for Live Sound and Recording
The
Mackie Onyx16 16-Channel Premium Analog Mixer delivers the high-quality performance professionals need for live audio, home recording, and content creation. With its renowned Onyx mic preamps, 24-bit/96kHz multitrack recording, and built-in DSP effects, this mixer is perfect for capturing pristine sound in any setting. Whether recording to a USB or SD card, the Onyx16 ensures maximum flexibility and control over your audio projects.
Mackie Onyx16 Competitive Differences
- 12 award-winning Onyx mic preamps providing up to 60dB of gain for professional sound quality
- 96kHz / 24-bit multitrack recording to Mac/PC via USB or direct-to-SD card stereo recording
- British-style Perkins EQ with sweepable midrange for vintage tone control
- Built-in high-resolution FX processor with customizable reverb, delay, chorus, and more
- Bluetooth® streaming for easy wireless audio playback directly to mixer channels
- Full-color display for intuitive control of effects and recording functions
Mackie Onyx16 Description
The
Mackie Onyx16 16-Channel Analog Mixer offers unmatched flexibility for professionals who need a compact, powerful mixer for live sound or studio applications. Featuring 12 Onyx mic preamps with up to 60dB of gain and premium analog circuitry, the Onyx16 delivers the studio-quality sound needed for any performance or recording session.
Equipped with flexible routing options, the Onyx16 allows you to record and playback via USB or SD card, making it an excellent choice for those working on-the-go or in smaller studios. The mixer also includes a professional-grade FX processor with multiple presets and user-adjustable parameters, ensuring that you can dial in the perfect sound for any situation. With Bluetooth® streaming, onboard recording, and a user-friendly interface, the Mackie Onyx16 provides all the tools you need to capture your best performances.
Onyx16 Features
- 12 Onyx mic preamps offering up to 60dB of gain
- 3-band Perkins EQ with sweepable midrange
- Built-in high-resolution FX processor with customizable effects
- USB multitrack recording at 96kHz / 24-bit resolution
- Direct-to-SD card stereo recording and playback
- Bluetooth® audio streaming
- Full-color display with intuitive navigation
- Footswitch input for FX mute (footswitch not included)
- Hi-Z switches for direct guitar and instrument input
- 100Hz low-cut filter and 48V phantom power on all mic channels
- Aux/Monitor outputs with dedicated per-channel send control
Onyx16 Specifications
- Channels: 16 total (12 mic preamps)
- EQ: 3-band Perkins with sweepable midrange
- Recording: 96kHz / 24-bit USB multitrack or direct-to-SD card
- Effects: Built-in digital FX processor with reverb, delay, and more
- Inputs: Stereo line inputs, Hi-Z inputs, Bluetooth® streaming, 1/8" stereo input

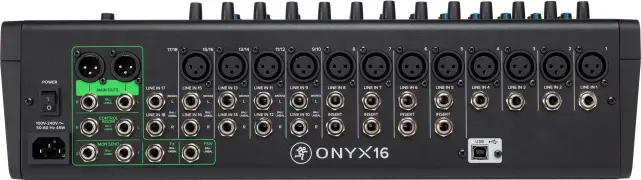

- Outputs: Control Room, Aux/Monitor outputs, headphone output
- Dimensions: 18.6" x 15.2" x 5.1" (47.2cm x 38.5cm x 13cm)
- Weight: 13 lbs (5.9 kg)
Mackie Onyx 16
(Mackie Onyx-16)
