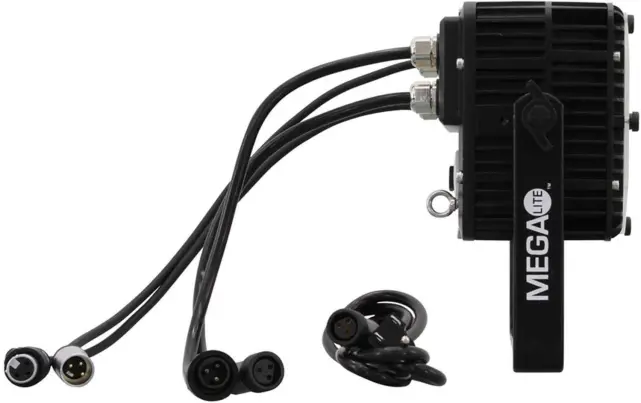

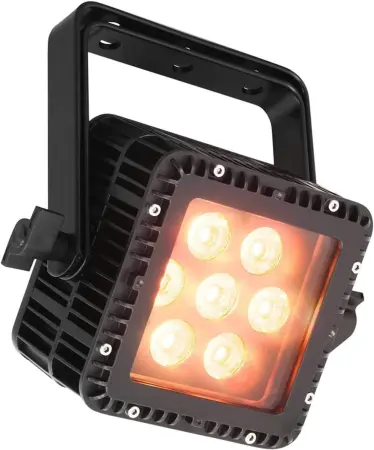

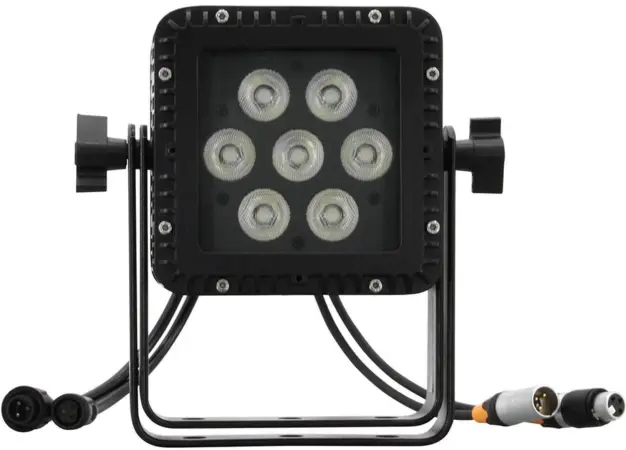

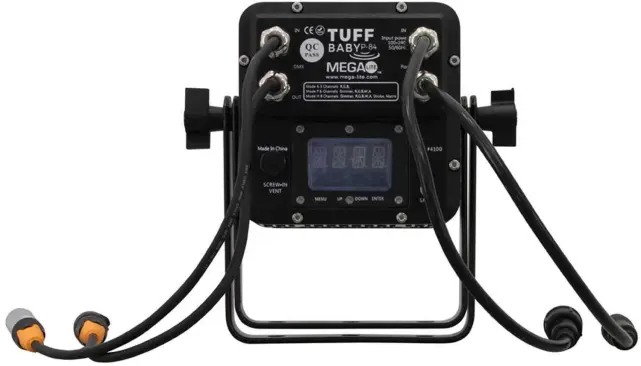

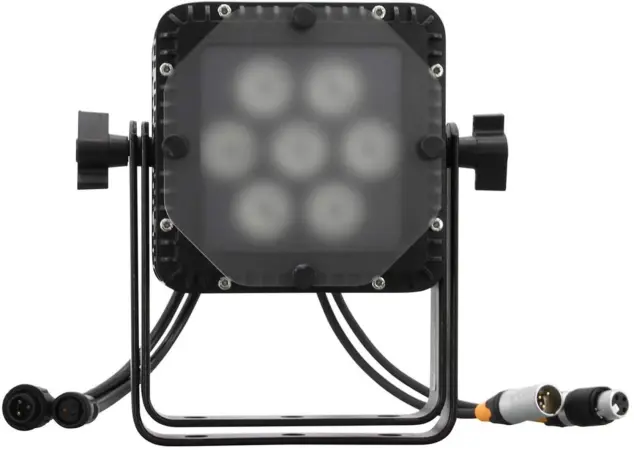

Introducing the Tuff Baby P-84, an LED ETL listed lighting fixture that’s weathered for outdoors and can still be used indoors. This compact IP 65 rated unit packs a punch with 7 penta RGBWA 12-watt LEDs. The addition of amber and white LEDs allows for pastel hues and varied tones that cannot be achieved with RGB LEDs alone. It has a 25º beam angle and also comes with a removable diffuser that creates a 30º diffused beam angle. The Tuff Baby P-84 has 3-pin XLR DMX connectors and a weather seal screw-type power connection. The fixture has a double mounting yoke for simple rigging or ground stacking. It is controlled via DMX 512, featuring 8 channels and master-slave control options.
SPECIFICATIONS:
ITEM ID:4100
SIGNAL CONNECTORS:WEATHER 3 PIN XLR CONNECTORS IN/OUT
POWER CONNECTION:WEATHER SEAL SCREW TYPE
THERMAL:MAXIMUM AMBIENT TEMPERATURE 104º F MAXIMUM SURFACE TEMPERATURE 140º F
DISPLAY:DIGITAL
FASTENING SYSTEM:DOUBLE MOUNTING YOKE
IP RATING:IP65
LED QUANTITY:7
LED WATTS:12W
LED LIFETIME:60 TO 100,000 AVERAGE
LED ANGLE:25º
DIFFUSION BEAM ANGLE:30º
POWER SUPPLY:110V≈240V 50/60HZ
BALLAST:ELECTRONIC
POWER CONSUMPTION:WATTS: 56W / AMPS: .84
PROTOCOL:DMX 512
DMX CHANNELS:3 MODES OF OPERATION
MODE 1:3 CHANNELS RED, GREEN, BLUE
MODE 2:6 CHANNELS DIMMER, RED, GREEN, BLUE, WHITE, AMBER
MODE 3:8 CHANNELS DIMMER, RED, GREEN, BLUE, WHITE, AMBER, STROBE, MACRO
CONTROL OPTIONS:MASTER SLAVE
Mega Lighting TUFF BABY P84-4100
(Mega Lite 4100)
