Obsidian Netron EN6 IP

IP66 rated, 6 Port Ethernet to DMX Gateway

$820.00 Available
$0 Tax $106 Back or Join VIP for upfront discounts.

Buy Store Reseal for $725.00.

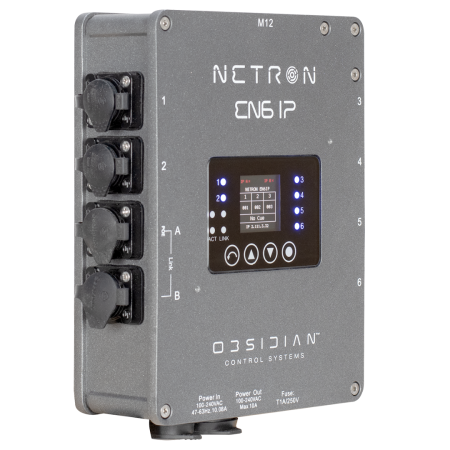

Obsidian Netron EN6 IP | IP66 rated, 6 Port Ethernet to DMX Gateway

Durable IP66 Ethernet to DMX Gateway for Versatile Lighting Control

The Obsidian EN6 IP is a highly reliable Ethernet to DMX gateway featuring six RDM-compatible ports within a robust, IP66-rated enclosure. Perfect for use in demanding environments like live productions, movie sets, and temporary outdoor installations, this gateway ensures enduring performance by offering protection against moisture, dust, and debris.

Obsidian EN6 IP Competitive Differences

  • Weatherproof IP66-rated construction for outdoor and indoor use
  • Compatible with ONYX NOVA, unlocking four DMX universes
  • Convenient power options: Line voltage or POE
  • Integrated 1.8” OLED display with waterproof touch buttons
  • Remote configuration access via a secure internal webpage

Obsidian EN6 IP Description

The Obsidian EN6 IP gateway is built to meet the needs of professional lighting applications where durability and flexibility are essential. Equipped with six RDM-compatible ports, it supports multiple protocols, including RDM, Art-Net, and sACN, and can be used for both DMX input and output. The device allows easy setup and control through its user and factory presets, making it an ideal choice for both seasoned professionals and quick setups. Its IP66 rating provides excellent resistance to dust and moisture, while a powder-coated aluminum chassis enhances durability. This unit is designed to operate seamlessly with ONYX NOVA, allowing access to four universes of DMX control for expansive lighting projects.

EN6 IP Features

  • Six 5-pin IP66 DMX/RDM optically isolated ports for bidirectional DMX In and Output
  • Supports RDM, Art-Net, and sACN for versatile compatibility
  • Factory and user-defined presets for quick, plug-and-play setup
  • Multiple power options: 100-240V AC or POE (802.3af)
  • 99 internal cues with adjustable fade and delay times
  • Integrated 1.8” OLED display with waterproof touch controls
  • Powder-coated aluminum chassis for enhanced durability
  • Remote configuration via internal webpage

EN6 IP Specifications

  • Mounting Options: Standalone, truss-mount (M10 or M12), wall-mount
  • Connections:
    • Six 5-pin IP66 DMX/RDM optically isolated ports (DMX In and Output)
    • Two locking IP66 RJ45 Ethernet network connections (one POE-enabled)
    • Locking IP66 Power In/Thru
  • Dimensions: 8 in. (204 mm) L x 7.1 in. (179 mm) W x 2.4 in. (61 mm) H
  • Weight: 4.41 lbs (2 kg)
  • Power Requirements: 100-240V nominal, 50/60 Hz or POE 802.3af
  • Power Consumption: 6W
  • Approvals: cETLus, CE, UKCA, IP66

What's in the Box

  • 1.5m IP66 locking power cable (EU or US version)
  • Two wall-mount brackets
  • M10 to M12 adapter
  • Metal display protection cover

Elation EN6 IP (Obsidian EN6-IP)

Research with AI

Brand Obsidian
Name Obsidian Netron EN6 IP
Primary Category Ethernet to DMX Gateway

CE Certified Yes
ETL Listed Yes (cETLus)
Warranty Length Not specified years

Connectivity Protocols RDM, Art-Net, sACN
IP Rating IP66
Power Consumption 6W W
Voltage Range 100-240V AC, 50/60 Hz or POE 802.3af volts
Wattage 6W W

Control Interfaces Integrated 1.8” OLED display with waterproof touch buttons, Remote configuration via internal webpage

Dimensions 8 in. L x 7.1 in. W x 2.4 in. H mm
Included Accessories 1.5m IP66 locking power cable (EU or US version), Two wall-mount brackets, M10 to M12 adapter, Metal display protection cover
Mounting Options Standalone, truss-mount (M10 or M12), wall-mount
Weight 4.41 lbs kg

Why to Invest?

Choose the Obsidian EN6 IP for a robust, weatherproof Ethernet to DMX gateway that ensures reliable lighting control in harsh environments. Its IP66 rating, durable aluminum chassis, and versatile connectivity protocols make it ideal for live productions, outdoor installations, and professional lighting setups requiring multiple DMX universes.

How it Works?

The EN6 IP converts Ethernet signals to DMX and RDM protocols through six optically isolated ports, allowing bidirectional communication. It supports multiple protocols including Art-Net and sACN, enabling seamless integration with lighting control systems. Configuration is accessible via an integrated OLED display or remotely through a secure internal webpage.

What's Unique?

The Obsidian EN6 IP stands out with its IP66-rated weatherproof design, integrated waterproof OLED touch display, and compatibility with ONYX NOVA software unlocking four DMX universes. Its multiple power options including POE and line voltage, combined with factory and user presets, provide unmatched flexibility and ease of use in demanding lighting environments.

Key Features

Six 5-pin IP66 DMX/RDM optically isolated ports for bidirectional DMX In and Output; Supports RDM, Art-Net, and sACN protocols; Factory and user-defined presets for quick setup; Multiple power options: 100-240V AC or POE (802.3af); Integrated 1.8” OLED display with waterproof touch controls; Powder-coated aluminum chassis for durability; Remote configuration via internal webpage; Mounting options include standalone, truss-mount (M10 or M12), and wall-mount.

Specifications

Dimensions: 8 in. (204 mm) L x 7.1 in. (179 mm) W x 2.4 in. (61 mm) H; Weight: 4.41 lbs (2 kg); Power Requirements: 100-240V nominal, 50/60 Hz or POE 802.3af; Power Consumption: 6W; Approvals: cETLus, CE, UKCA, IP66; Connections: Six 5-pin IP66 DMX/RDM ports, Two locking IP66 RJ45 Ethernet network connections (one POE-enabled), Locking IP66 Power In/Thru.

Included Accessories

1.5m IP66 locking power cable (EU or US version), Two wall-mount brackets, M10 to M12 adapter, Metal display protection cover.
