Obsidian RDM 6XL
$490.00

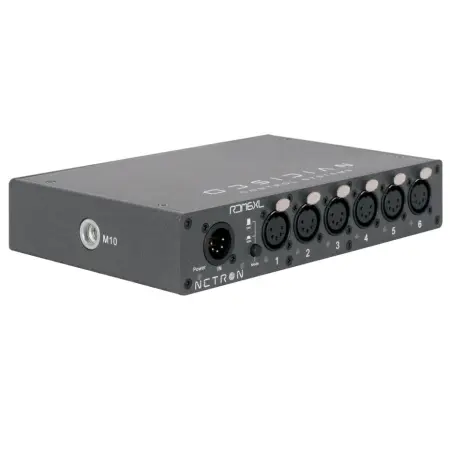

The Netron RDM 6XL is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated 5pin XLR outputs and flexible mounting options to cover any situation.
Features:
(6) XLR 5pin outputs
DMX and RDM compliant
Optically isolated ports
Power / DMX Through connectors
Powder-coated aluminum ½ rack housing
Specifications:
MOUNTING
Standalone
Truss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)
Rack-mount option (requires NET Shelf)
CONNECTIONS
Front
5pin DMX Input
(6) 5pin Opto-Isolated DMX Outputs
RDM Enable
Back
5pin DMX Input (parallel with front)
5pin DMX Through
Terminate
Locking Power In/Thru
PHYSICAL
Length: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)
ELECTRICAL
100-240 V nominal, 50/60 Hz, 10W
INCLUDED ITEMS
1.5m Locking power cable (EU or US version)
(2) Wallmount plates
(2) DIN-Rail clamps
| Brand | Obsidian |
| Name | Obsidian RDM 6XL |
| Primary Category | DMX/RDM Splitter |
| Connectivity Protocols | DMX, RDM |
| Power Consumption | 10W W |
| Voltage Range | 100-240 V nominal, 50/60 Hz V, Hz |
| Depth | 215 mm mm |
| Dimensions | 215 mm x 139 mm x 42 mm mm |
| Height | 42 mm mm |
| Included Accessories | 1.5m Locking power cable (EU or US version), (2) Wallmount plates, (2) DIN-Rail clamps |
| Mounting Options | Standalone, Truss-mount (M10 or M12), Wall-mount horizontal or vertical, DIN Rail horizontal or vertical, Rack-mount option |
| Weight | 1 kg (2.2 lbs) kg |
| Width | 139 mm mm |
