Obsidian DMX10-5 | Netron 10 Output 5-Pin DMX Isol...
$476.00

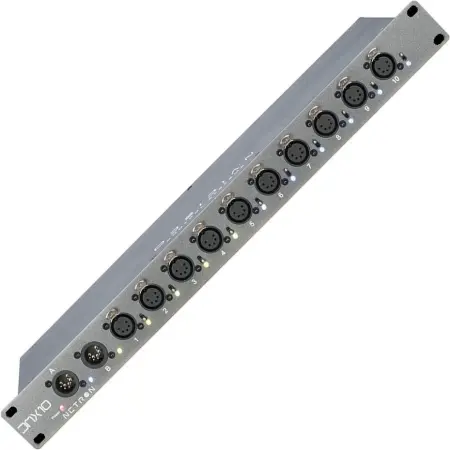

The Obsidian DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs.
Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication. This is a 5 pin XLR configuration.
Features:
Dual A/B 5pin XLR DMX Input
10 isolated 5pin XLR DMX Outputs
A/B routing per output port
LED feedback for In/Out/A/B/Power
Industrial strength powder-coated finish
Lightweight and rugged rackmount housing
Specs:
Mounting: Rackmount
Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82kg ( 4.0 lbs)
Electrical: 100-240 V nominal, 50/60 Hz
Approvals / Ratings: cETLus / CE / IP20 (pending)
Connections
Front: (2) 5pin DMX Input, (10) 5pin Opto-Isolated DMX Outputs
Back: Locking Power In
This is the 5 pin XLR model.
| Brand | Obsidian |
| Name | Obsidian DMX10-5 | Netron 10 Output 5-Pin DMX Isolated Splitter |
| Primary Category | DMX Splitter |
| Connectivity Protocols | DMX 5-pin XLR |
| IP Rating | IP20 (pending) |
| Voltage Range | 100-240 V nominal, 50/60 Hz V, Hz |
| Depth | 482.5 mm mm |
| Dimensions | 482.5 mm x 146 mm x 44 mm mm |
| Height | 44 mm mm |
| Included Accessories | Locking Power In cable |
| Mounting Options | Rackmount |
| Weight | 1.82 kg kg |
| Width | 146 mm mm |
