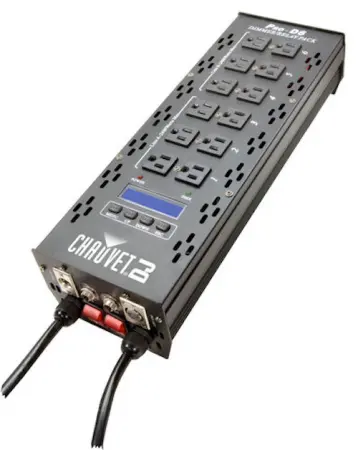

The Pro-D6 from Chauvet DJ is a 6-channel DMX-512 dimmer/switch pack that is designed to work on multiple voltages (115V and 230V) simultaneously. This is accomplished as the dimmer/relay pack comes fitted with 20 amp connectors. The Pro-D6 offers variable electronic dimming and each channel can be set as either dimmer or relay.
Includes
6-channel DMX dimmer/relay pack
Set each channel to any DMX address
Features a variable electronic dimmer (0 to 100%)
Includes 2 Edison plugs per channel
Features:
6-channel DMX dimmer/relay pack
Increase control by setting each channel to any DMX address
Increase flexibility by setting each channel as either a dimmer or relay
Features a variable electronic dimmer (0 to 100%)
Optional square, switch or linear dimming curves for each channel
Dual 20 A power lines (requires 2 separate circuits on the same phase)
Increase options with an individual switch, circuit breaker and plug per line
Accommodates different input voltages simultaneously
Includes 2 Edison plugs per channel
Specifications:
DMX Channels: 6
DMX Connectors: 3-pin
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight: 9.3 lb (4.2 kg)
Size: 18 x 5.8 x 3.8 in (457 x 147 x 97 mm)
Approvals: CE
Output: 10 A (per channel), 20 A (per power line), 40 A (max)
Breaker Size: 20A 250V
| Brand | Chauvet DJ |
| Name | Chauvet DJ PRO-D6 Dimmer/Relay Pack |
| Primary Category | Dimmer/Relay Pack |
| Channels | 6 |
| Dimensions | 18 x 5.8 x 3.8 in (457 x 147 x 97 mm) mm |
| Weight | 9.3 lb (4.2 kg) kg |
| Power Consumption | 10 A per channel A |
| Power Rating | 20 A per power line A |
| Voltage Range | 100 to 240 VAC, 50/60 Hz VAC |
| Warranty Length | CE Certified years |
