American DJ Data Distro 6 | 6-Way DMX & RDM Splitt...
$249.99
The American DJ Data Distro 6 is a compact and reliable 6-way DMX and RDM data splitter designed to simplify complex lighting setups. Whether you're running a large stage show or need streamlined cabling for a fixed installation, this device distributes DMX512 and RDM signals with stability and precision through six individually isolated 5-pin outputs. Built for professional performance, it ensures clean signal transmission and offers versatile mounting options.

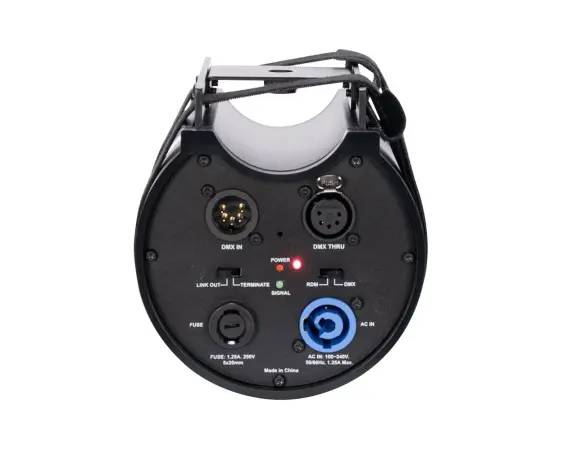

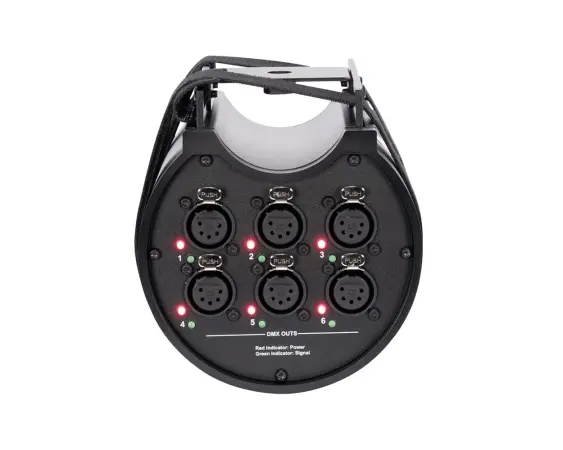

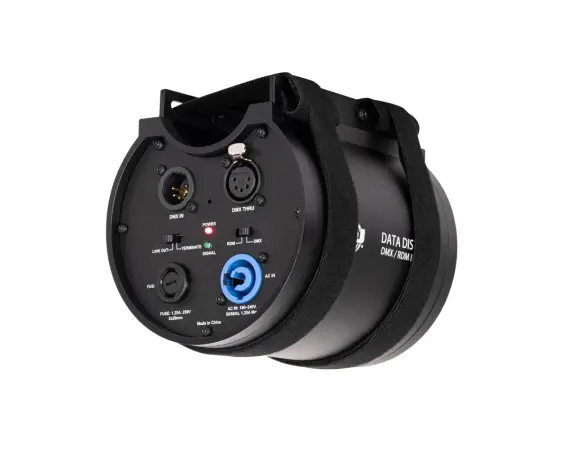

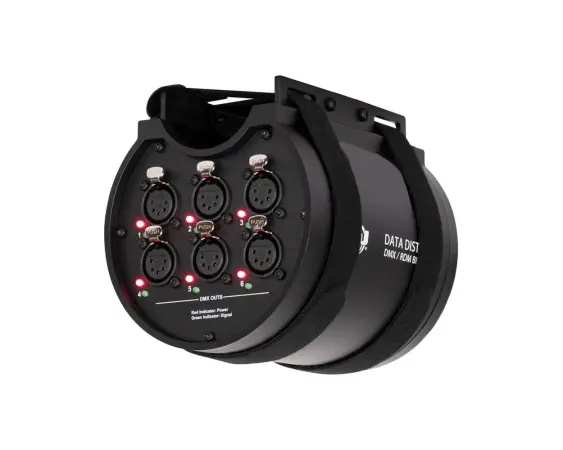

The Data Distro 6 by American DJ is a powerful and compact data management tool for professional lighting systems. With one 5-pin XLR input, one 5-pin thru, and six optically isolated 5-pin outputs, it makes distributing data across multiple DMX fixtures quick and efficient. Designed to support both DMX512 and RDM protocols, this unit is essential for setups requiring device feedback and remote configuration.

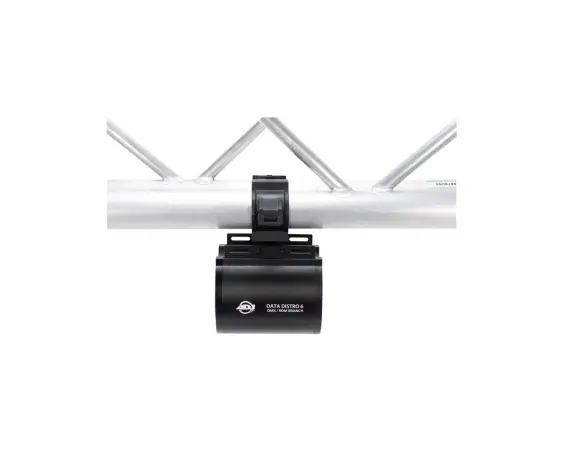

This splitter includes convenient onboard controls for switching between DMX and RDM operation, and activating termination. Its durable design includes a truss mounting bracket with Velcro straps and compatibility with an M10 clamp (not included), making it ideal for mobile or fixed installations. With universal power support and fuse protection, it’s ready to handle professional demands with ease and reliability.
| Brand | American DJ |
| Name | American DJ Data Distro 6 | 6-Way DMX & RDM Splitter with 5-Pin XLR I/O |
| Primary Category | DMX Splitter |
| CE Certified | Yes |
| ETL Listed | cETLus |
| FCC Certified | Yes |
| Connectivity Protocols | DMX512, RDM |
| IP Rating | IP20 |
| Power Consumption | 2.7W @ 120V, 2.9W @ 230V W |
| Power Rating | Fuse, T1.25A/250 (5.2x20mm) |
| Voltage Range | 100-240V AC, 50/60Hz V AC |
| Dimensions | 4.73" L x 5.43" W x 5.10" H inches |
| Included Accessories | Velcro straps |

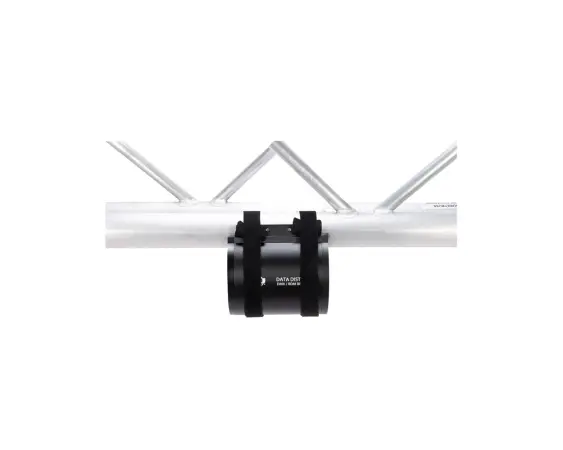

| Mounting Options | Truss mountable with Velcro straps or M10 clamp (clamp not included) |
| Weight | 1.83 lbs (0.83 kg) kg |
