American DJ D4 Branch RM
$199.99

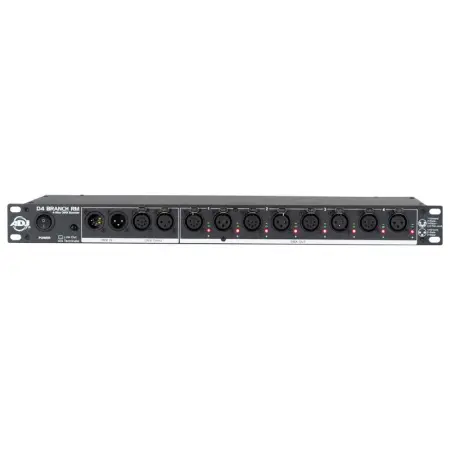

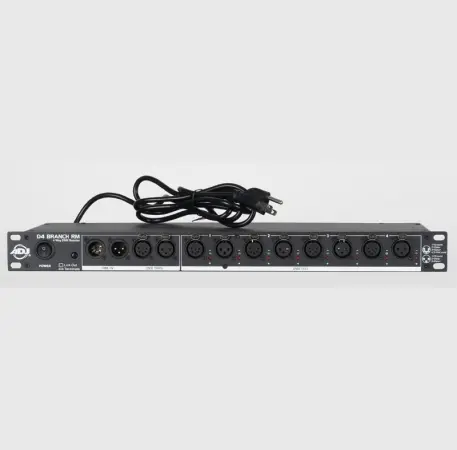

The ADJ D4 Branch RM is a single rack space, 4-way distributor/booster with 3-pin and 5-pin XLR input and output jacks.
The ADJ D4 Branch RM is a single rack space, 4-way distributor/booster with 3-pin and 5-pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to four (4) separate outputs that are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal, and the unit includes a link / terminate button for easy troubleshooting.
FEATURES:
4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
Built-in signal amplifier boosts the DMX signal for each port
Link / Terminate Button for Easy Troubleshooting
DMX Status LED Indicator
(1) 3-pin + (1) 5-pin XLR Isolated Inputs
(1) 3-pin + (1) 5-pin XLR Passive Loop Output
(4) 3-pin + (4) 5-pin XLR Isolated Outputs
SPECIFICATIONS:
SIZE / WEIGHT:
19” (482mm) x 5.5” (139.8mm) x 1.7” (44mm)
5.3 lbs. (2.4kg)
ELECTRICAL:
AC 120V/60Hz (U.S. Only), AC 240V/50Hz (E.U. Only)
APPROVALS:
cETLus pending
CE approved
FCC compliant
| Brand | American DJ |
| Name | American DJ D4 Branch RM |
| Primary Category | DMX Data Splitter |
| CE Certified | Yes |
| FCC Certified | Yes |
| Warranty Length | cETLus pending years |
| Dimensions | 19” x 5.5” x 1.7” mm |
| Weight | 5.3 lbs. kg |
| Voltage Range | AC 120V/60Hz (U.S. Only), AC 240V/50Hz (E.U. Only) volts |
