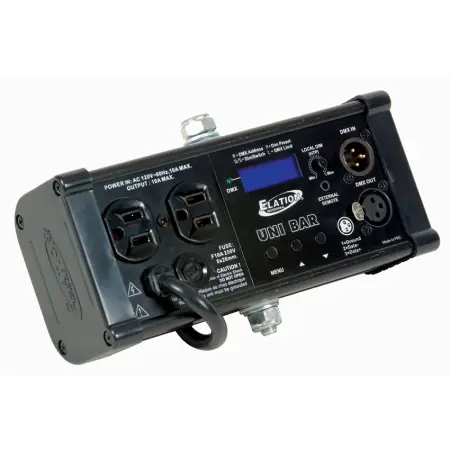

Elation Uni Bar
$120.00
Elation Lighting Uni Bar (Elation UniBar )
1 CHANNEL DIMMER
• 3-pin XLR DMX IN/OUT ports
• Serves as a Switch or Dimmer Pack depending upon operating mode
• USITT Standard DMX512
• 4 digits Segment Display shows current activity and function state
• Power failure memory
• Dimmer Preset and Dimmer Limit settings
• 120VAC-60Hz power input
• 10 Amp maximum channel output
• 10 Amp 250V 5x20mm fuse
• Weight - 2.5lbs.
• Dimensions - 7.90 x 3.250 x 2.650
• On board HTP dimmer control
• Input for optional analog HTP dimmer controller
| Brand | Elation |
| Name | Elation Uni Bar |
| Channels | 1 |
| Control Interfaces | 3-pin XLR DMX IN/OUT ports, Input for optional analog HTP dimmer controller |
| Dimensions | 7.90 x 3.250 x 2.650 inches inches |
| Included Accessories | 10 Amp 250V 5x20mm fuse |
| Weight | 2.5 lbs lbs |
| Power Consumption | 120VAC-60Hz VAC |
| Warranty Length | Not specified years |
Right from your cart
$700+ Orders Qualify for 0% Interest or Up to 24 Months
Pay in 4 or Choose Your Financing Plan
NET/30, then Flexible Simple Interest
Get Longer 0% Options or Up to 60 Months
Prefer better payment terms over VIP discounts? Use our partner website. Standard priced products with up to 24 months at 0% interest, or up to 60 months of equal payments with interest.
View this item on SquareCable.com (opens in a new tab)Store card
Apply for KPODJ's Synchrony Store Card (opens in a new tab) for 6 months of deferred interest on all products and longer terms for certain items.
Just bought one of these. Pretty happy with it so far. I'm mainly using it as a relay control for my DF-50. Switch mode, not DMX. But I have a few conventional lights that I can and most likely will be using with this dimmer.<br /> <br /> It's a solid build. Heavier than expected, but it does have a safety I-bolt if you want/need to hang it. I did have a little trouble finding the right settings, but I think that's more user error on my part. I was in a hurry at the time. <br /> <br /> If you are in the need of a relay switch or just a single channel dimmer, I recommend this to you. I'm sure there are other products like it. But this is the one I went with and it works great.
