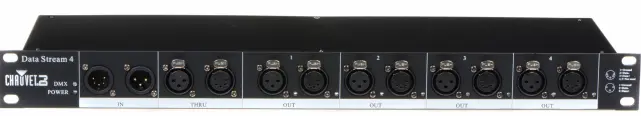

Chauvet DJ Data Stream 4 | Universal DMX-512 Optical Splitter
The Chauvet DJ Data Stream 4 is a universal DMX-512 optical splitter designed to distribute the incoming DMX signal in daisy chain configurations into four separate outputs with an additional "thru" port. This versatile and robust splitter ensures reliable DMX signal distribution for any lighting setup.
Key Features
- Universal, optical DMX splitter provides 4 outputs from a single input
- Increase flexibility with 3- and 5-pin XLR connections for each input/output
- Additional 3- and 5-pin output for linking other Data Stream 4 units
- Electrical isolation between input and output
- Conveniently mount with a shorter cable run using the single space (1U) mounting rack
Competitive Differences
- Universal compatibility with both 3- and 5-pin XLR connectors
- Enhanced reliability with electrical isolation between input and output
Full Description
The Chauvet DJ Data Stream 4 is an essential tool for professional lighting setups, providing reliable DMX signal distribution with universal compatibility. The splitter features both 3-pin and 5-pin XLR connections for each input and output, allowing for flexible integration with various lighting equipment. The unit also includes an additional 3-pin and 5-pin output for linking multiple Data Stream 4 units, expanding your DMX network. Its robust design ensures electrical isolation between the input and output, enhancing signal integrity. The 1U rack mount design allows for convenient installation and shorter cable runs.
Features
- Universal, optical DMX splitter provides 4 outputs from a single input
- Increase flexibility with 3- and 5-pin XLR connections for each input/output
- Additional 3- and 5-pin output for linking other Data Stream 4 units
- Electrical isolation between input and output
- Conveniently mount with a shorter cable run using the single space (1U) mounting rack
Specifications
- DMX Channels: 3- and 5-pin
- Input Voltage: Auto-ranging 100 - 240 VAC, 50/60 Hz
- Power and Current: 3 W, 0.1 A @ 120 V, 60 Hz; 5 W, 0.1 A @ 230 V, 50 Hz
- Weight: 5.8 lb (2.6 kg)
- Size: 19 x 5.3 x 1.8 in (483 x 134 x 46 mm)
- Approvals: CE
What's in the Box
- Data Stream 4
- Power cord
- Warranty card
Accessories
- Additional DMX cables
- Mounting hardware
