Outdoor-Rated DMX/RDM Signal Splitter for Stage & Architectural Lighting
The
Blizzard Lighting Pipeline Splitterally 6 Outdoorsy is a rugged, outdoor-ready DMX/RDM splitter and signal booster designed for professional lighting systems. With six optically and electronically isolated outputs, this compact unit ensures reliable signal distribution in demanding environments like festivals, concerts, and architectural installations.
Blizzard Lighting Pipeline Splitterally 6 Outdoorsy Competitive Differences
- IP-rated for safe outdoor use in all weather conditions
- Six fully isolated DMX/RDM outputs prevent ground loops and signal interference
- Heavy-duty powerCON® TRUE1-compatible input for secure AC connections
- M10 mounting point for clamp attachment to truss or rigging systems
- Protective rubber caps for DMX and power connectors when not in use
Blizzard Lighting Pipeline Splitterally 6 Outdoorsy Description
Built to thrive in rugged and exposed environments, the
Pipeline Splitterally 6 Outdoorsy is an outdoor-rated DMX/RDM splitter designed to simplify and secure your lighting signal distribution. Its durable housing and weather-resistant design make it ideal for permanent or temporary installations in open-air venues.
This unit features a single 5-pin DMX input and six optically and electronically isolated 5-pin outputs, ensuring signal integrity and preventing electrical faults from spreading across your DMX network. The powerCON® TRUE1-compatible connector delivers secure AC input, while rubber caps keep your DMX and power ports clean and dry when not connected.
A built-in M10 mounting point offers easy integration with clamps for truss mounting, making this splitter perfect for stage productions, architectural lighting, and outdoor events. Whether you're setting up a complex lighting rig or just need dependable DMX distribution outdoors, the Pipeline Splitterally 6 Outdoorsy is built to deliver.
Pipeline Splitterally 6 Outdoorsy Features
- Outdoor-rated DMX/RDM splitter and booster

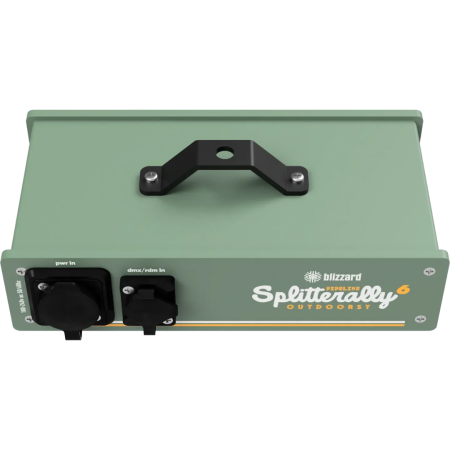

- 1x 5-pin DMX input

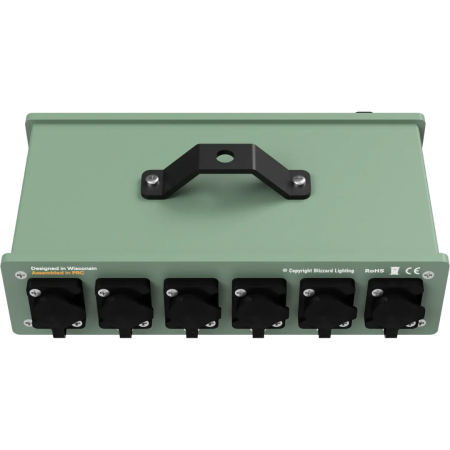

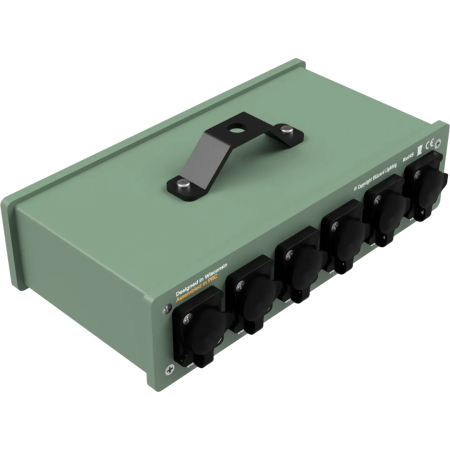

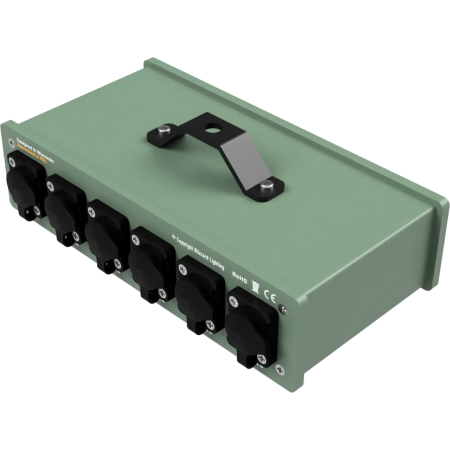

- 6x 5-pin optically and electronically isolated DMX outputs
- Rugged, compact enclosure suitable for harsh environments

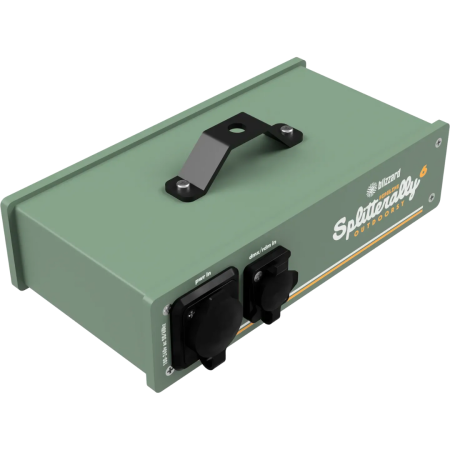

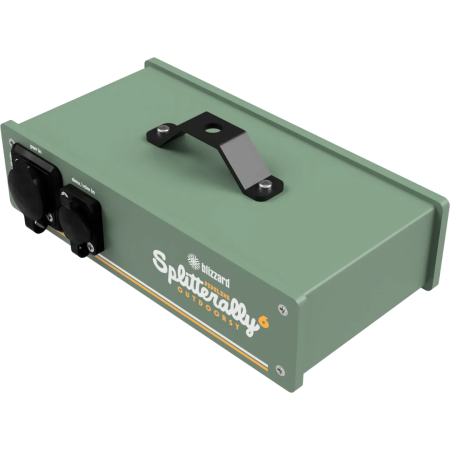

- powerCON® TRUE1-compatible power input
- M10 clamp mounting point for truss rigging
- Rubber caps protect DMX and power connectors from the elements
Pipeline Splitterally 6 Outdoorsy Specifications
- Dimensions (Single Pack): 10 in. (L) x 8 in. (W) x 4 in. (H)
- Weight: 4.2 lbs.
- DMX In: 5-pin (XLR)
- DMX Out: 6x 5-pin (XLR), isolated
- Power Input: powerCON® TRUE1-compatible
- Mounting: M10 threaded point for clamp
