OnStage LS-MS7620

Tripod Lighting and Microphone Stand

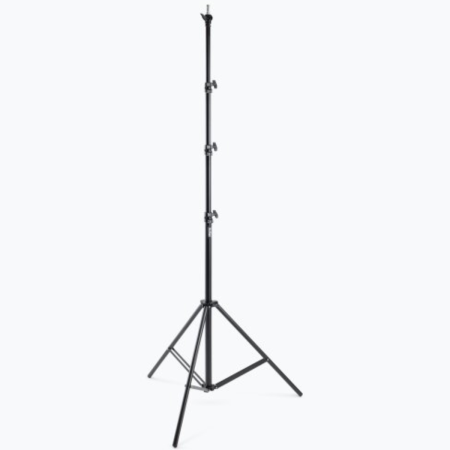

The On-Stage LS-MS7620 is a versatile 13-foot tripod lighting and microphone stand designed for positioning lights, overhead microphones, cameras, and photography accessories. Featuring a lightweight aluminum construction, four-section air-cushioned telescoping shaft, and adjustable height from 47 to 156 inches, it provides flexible equipment placement while supporting loads up to 15 lb (6.8 kg). Its wide tripod base and multiple mounting thread options make it suitable for live sound, stage lighting, photography, and studio applications.

On-Stage LS-MS7620 Competitive Differences

• 13-Foot Maximum Height: Extends from 47 to 156 inches (119.4 to 396.2 cm), allowing elevated positioning of microphones, lights, and other compatible equipment.
• Air-Cushioned Telescoping Shaft: Four-section air-cushioned design helps prevent sudden shaft drops and provides smoother, more controlled height adjustments.
• Versatile Mounting Options: Includes a removable, reversible 1/4"-20 and 3/8"-16 threaded spigot and an MA200 3/8"-16 to 5/8" microphone adapter.
• 15 lb Load Capacity: Supports compatible lighting fixtures, microphones, cameras, and photography accessories weighing up to 15 lb (6.8 kg).
• Stable Aluminum Tripod Construction: Features a 35-inch (88.9 cm) base spread with nonslip rubber feet for balanced positioning.
• Compact Storage: Retracts to 45 inches (114.3 cm) for easier transportation and storage between setups.

On-Stage LS-MS7620 Description

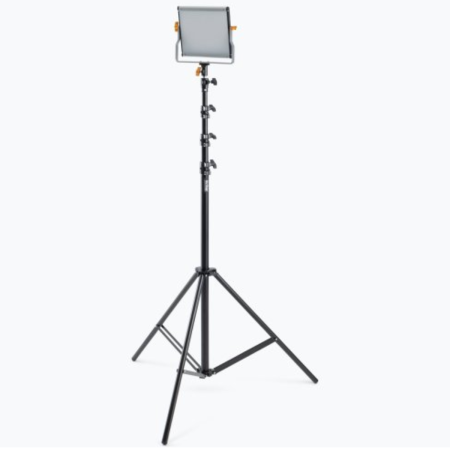

The On-Stage LS-MS7620 provides an adjustable support solution for applications requiring equipment placement at elevated heights. Its telescoping design extends to 13 feet, making it useful for overhead microphone placement, lighting setups, photography equipment, and other compatible accessories. The adjustable height range allows users to accommodate different room layouts and performance environments.

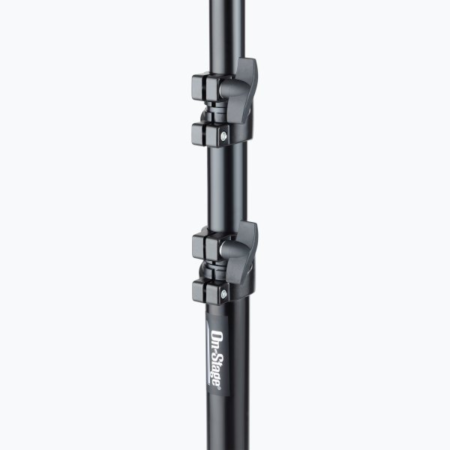

Constructed from aluminum, the stand combines a lightweight frame with a wide tripod footprint for stability. Nonslip rubber feet help prevent unwanted movement, while adjustable tension at the leg housing allows the base to be secured during setup. An anti-rotation device on the lower shaft adds control during height adjustments. The four-section air-cushioned mechanism slows shaft descent, helping protect mounted equipment when lowering the stand.

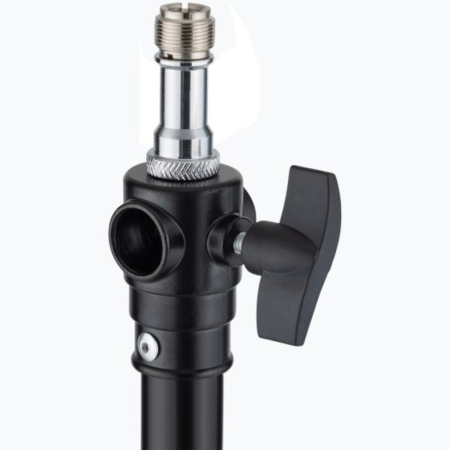

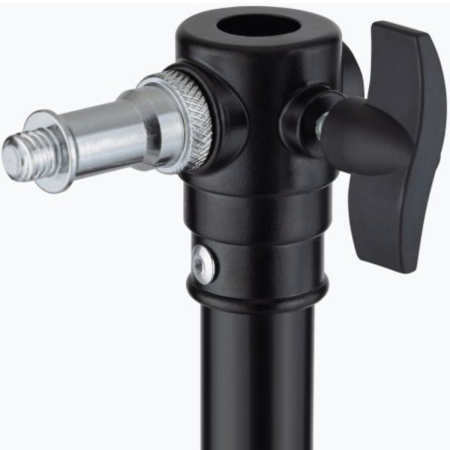

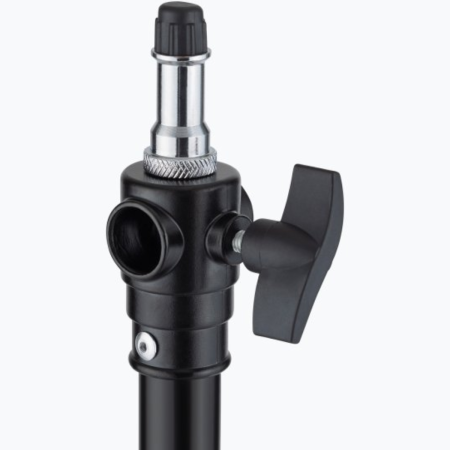

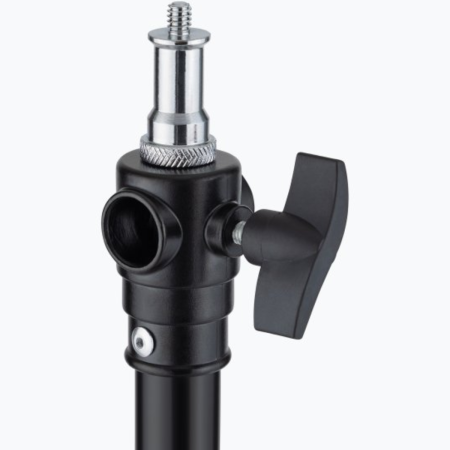

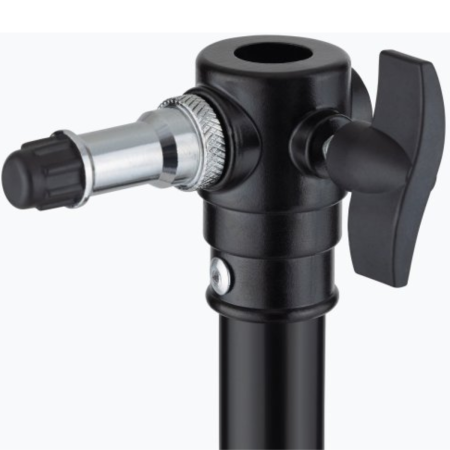

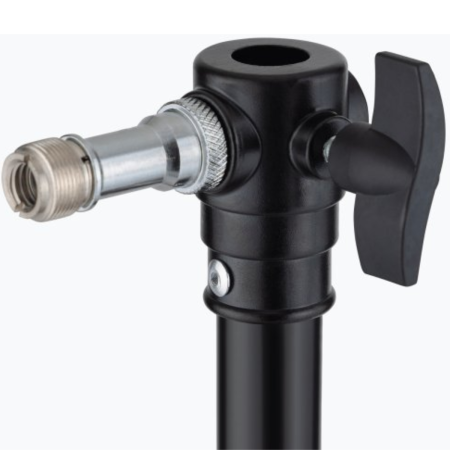

Flexible mounting options expand the stand's usefulness across audio, lighting, and photography applications. The included reversible spigot provides 1/4"-20 and 3/8"-16 threaded mounting options and supports vertical or perpendicular accessory positioning. An included MA200 adapter provides 5/8" microphone mounting compatibility, allowing the stand to accommodate different microphone holders and compatible accessories.

Designed for mobile DJs, live sound technicians, lighting operators, photographers, and recording studios, the LS-MS7620 offers a practical combination of extended height, mounting flexibility, and portability. Its 45-inch folded length makes it easier to store and transport, while the 15 lb load capacity supports a variety of appropriately sized lighting and microphone setups.

LS-MS7620 Features

• Multipurpose tripod stand for lighting, microphones, cameras, and photography accessories
• Adjustable working height from 47 to 156 inches (119.4 to 396.2 cm)
• Maximum height of 13 feet (3.96 m)
• Four-section air-cushioned telescoping shaft for controlled height adjustments
• Lightweight aluminum construction with black finish
• Maximum supported load of 15 lb (6.8 kg)
• 35-inch (88.9 cm) tripod footprint for stable equipment placement
• Nonslip rubber feet help prevent sliding
• Adjustable tension mechanism at the leg housing
• Anti-rotation device on the lower shaft
• Removable, reversible spigot with 1/4"-20 and 3/8"-16 male threads
• Spigot supports vertical and perpendicular accessory mounting
• Includes MA200 3/8"-16 to 5/8" microphone mounting adapter
• Retracts to 45 inches (114.3 cm) for convenient storage and transportation

LS-MS7620 Specifications

• Brand: On-Stage
• Model: LS-MS7620
• Product Type: Tripod Lighting and Microphone Stand
• Stand Configuration: General Purpose Tripod Stand
• Maximum Working Height: 156 in (396.2 cm / 3.96 m)
• Minimum Working Height: 47 in (119.4 cm / 1.19 m)
• Load Capacity: 15 lb (6.8 kg)
• Closed Length: 45 in (114.3 cm)
• Base Spread: 35 in (88.9 cm)
• Number of Shaft Sections: 4
• Shaft Type: Air-Cushioned Telescoping
• Top Mount: 5/8" Receiver
• Included Spigot: Reversible 1/4"-20 and 3/8"-16 Male Threads
• Included Microphone Adapter: MA200 3/8"-16 to 5/8"
• Mounting Orientation: Vertical or Perpendicular
• Construction Material: Aluminum
• Leg Shape: Round
• Foot Type: Nonslip Rubber Feet
• Finish: Black
• Air Cushioning: Yes
• Adjustable Leg Housing Tension: Yes
• Lower Shaft Anti-Rotation Device: Yes
• Detachable Base: No
• Leveling Leg: No
• Reverse Legs: No
• Accepts Second Riser: No
• Wheel Compatibility: Not Compatible
• Stand Weight: 4 lb (1.8 kg), per manufacturer product sheet
• Package Weight: 5.9 lb (2.7 kg)
• Package Dimensions (L x W x H): 46.75 x 4 x 3.88 in (1187.5 x 101.6 x 98.6 mm)
• UPC: 659814144105

What's In The Box

• On-Stage LS-MS7620 13-Foot Tripod Lighting/Microphone Stand
• Removable, Reversible 1/4"-20 and 3/8"-16 Mounting Spigot
• On-Stage MA200 3/8"-16 to 5/8" Microphone Adapter
