OnStage LS7805QIK

Power Crank-Up Lighting Stand

The On-Stage LS7805QIK is a portable crank-up lighting stand designed to safely support and position larger lighting configurations. Its adjustable 54" to 132" height range, 80 lb weight capacity, and 12-PAR mounting capability make it well suited for mobile DJs, performers, venues, and event-production applications.

On-Stage LS7805QIK Competitive Differences

• Crank system can be operated manually or with the aid of a power drill for easier raising and lowering of lighting rigs
• Supports up to 12 PAR cans using a six-fixture top T-bar and two three-fixture side bars
• U-mount lighting arms can be positioned up, down, and around the stand for flexible fixture placement
• Braceless lighting-arm design provides unobstructed mounting space for PAR cans
• Wide 54" base spread with nonslip feet improves stability and load balance

On-Stage LS7805QIK Description

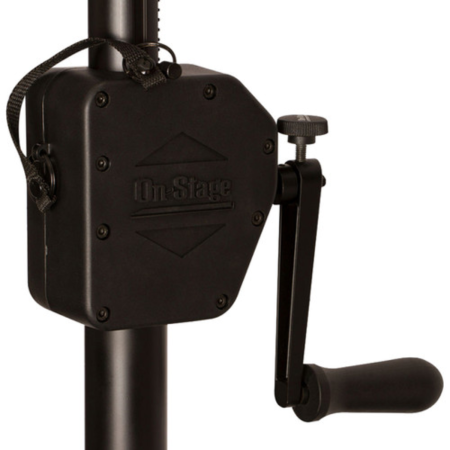

The On-Stage LS7805QIK provides an efficient way to set up and tear down portable lighting systems while supporting configurations up to 11' high. Its crank mechanism supplies additional leverage when raising or lowering a loaded lighting rig and can be turned by hand or operated with the aid of a power drill.

The stand combines aluminum and steel construction with an 80 lb weight capacity for dependable support in mobile and event-production environments. A wide tripod base and nonslip feet help maintain stability and load balance, including when the stand is positioned on irregular surfaces.

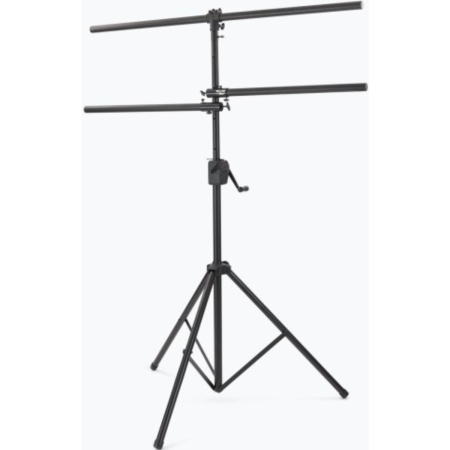

For flexible fixture placement, the LS7805QIK uses adjustable U-mount lighting arms that can be positioned around the stand. The top T-bar accommodates six PAR cans, while the two side bars accommodate three PAR cans each, providing mounting positions for up to 12 fixtures. Mounting hardware for all 12 fixtures is included.

When the event is over, the lighting bars detach and the tripod base folds flat to simplify storage and transportation. The crank handle also folds down when not in use, helping keep the stand compact for mobile DJs, lighting technicians, bands, and event-production crews.

LS7805QIK Features

• Crank-up lighting stand for portable lighting systems
• Crank operates manually or with the aid of a power drill
• Crank system provides leverage for safely raising and lowering lighting rigs
• Crank handle folds down when not in use
• Height adjusts from 54" to 132" (4.5' to 11')
• Supports loads up to 80 lb
• Top T-bar mounts up to six PAR cans
• Two side lighting bars mount up to three PAR cans each
• Supports mounting configurations for up to 12 PAR cans

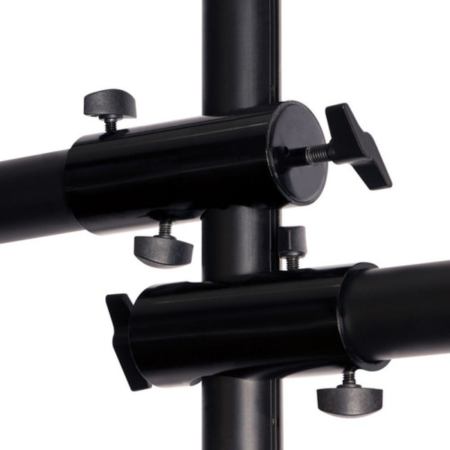

• U-mount lighting arms allow flexible positioning around the stand
• Braceless design leaves unobstructed space for mounting PAR cans
• Lighting arms help reduce setup and teardown time
• Wide tripod base with nonslip feet enhances stability
• Lighting bars detach for easier transport and storage
• Tripod base folds flat for storage
• Hardware included for mounting up to 12 fixtures

LS7805QIK Specifications

• Application: 12 PAR lighting stand
• Height Adjustment: 54" - 132" (1372 - 3353 mm)
• Maximum Height: 11' (132")
• Base Spread: 54" (1372 mm)
• Weight Capacity: 80 lb (36.3 kg)
• Construction: Aluminum and steel
• Color: Black
• UPC: 659814133130

OnStage LS7805QIK (OnStage Power Crank-Up Lighting Stand)
