Active Studio Monitor

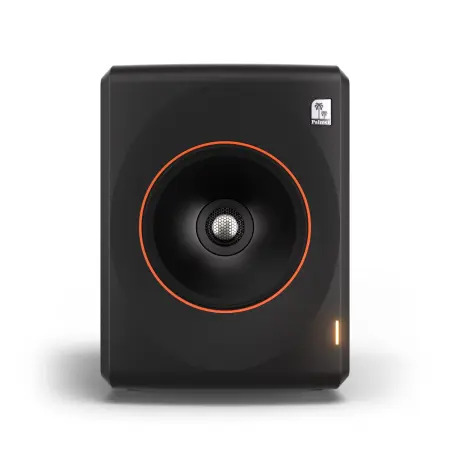

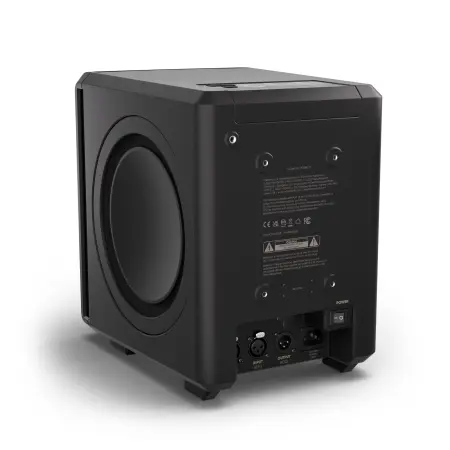

Palmer Orbit 11 is a 3-way coaxial studio monitor designed for uncompromising accuracy, tight low-end, and wide-range fidelity. Engineered for serious producers and engineers, it delivers flat response down to 28Hz without the need for a subwoofer. With dual impulse-compensated 8" woofers and a coaxially aligned 6.5" midrange and 1" tweeter, it offers phase-coherent monitoring with exceptional stereo imaging.
Palmer Orbit 11 Competitive Differences
- Coaxial point source design ensures perfect phase alignment
- Impulse-compensated dual 8" woofers deliver deep, resonance-free bass
Palmer Orbit 11 Description
The
Palmer Orbit 11 stands out as a high-resolution studio monitor with true 3-way coaxial configuration, providing outstanding clarity and imaging across its full 28Hz–28kHz frequency range. Its FIR filters and 96kHz/24-bit DSP ensure linear phase response with only 4ms latency, making it ideal for precision mixing and mastering.
Its cardioid front baffle reduces rear wall reflections, while the 120° x 120° constant directivity keeps your stereo image stable and focused. The cabinet is built from acoustically inert die-cast aluminum, minimizing resonance and offering a durable, low-vibration enclosure.

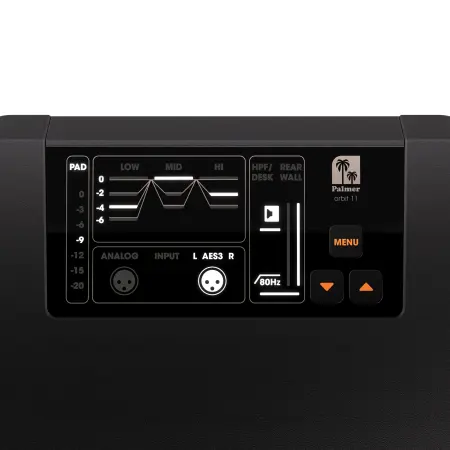

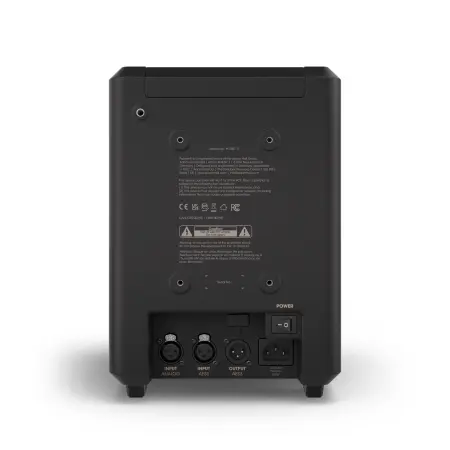

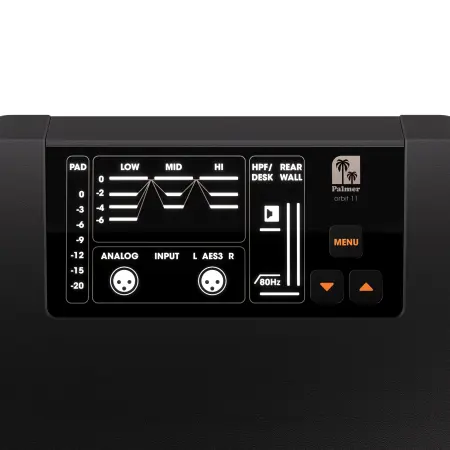

Connectivity includes balanced XLR and AES3 digital inputs, with through outputs for daisy-chaining. Top-mounted controls provide quick access to EQ presets, input selection, and room adaptation filters (desk, small and large rear wall distances).
Whether wall-mounted or desk-placed, the Orbit 11 adapts to your setup with precision, giving engineers and producers confidence in every decision.
Model Features
- 3-way coaxial design: 6.5" mid + 1" tweeter + 2 x 8" woofers
- 28Hz–28kHz response (±3 dB)
- FIR-based linear phase correction with 4ms latency
- Cardioid design reduces room interaction
- Wall-mountable with removable feet
- Onboard DSP with top-panel controls and EQ presets
- Analog and AES3 digital inputs with AES3 loop-out
Model Specifications
- Max SPL: 116dB
- Power Output: 1000W Peak / 400W RMS
- Frequency Response: 28Hz–28kHz (±3 dB)
- DSP: FIR filters @ 96kHz / 24-bit
- Drivers: 1" tweeter, 6.5" mid, 2 x 8" woofers
- Directivity: 120° x 120°
- Cabinet: Die-cast aluminum (5–16 mm)
- Colors: Black or White finish
What's In The Box
- Orbit 11 studio monitor
- Power cable
- Quick start guide
PALMER PORBIT11US
(Palmer ORBIT 11 Black)
