Active Studio Monitor

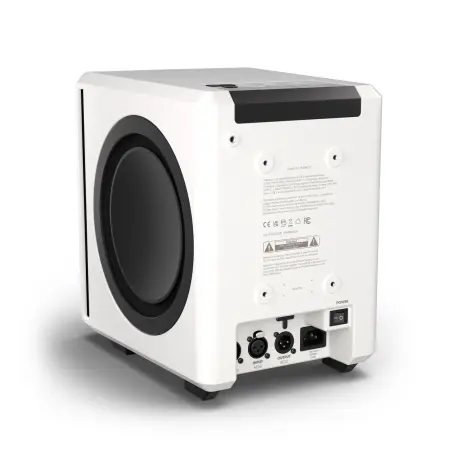

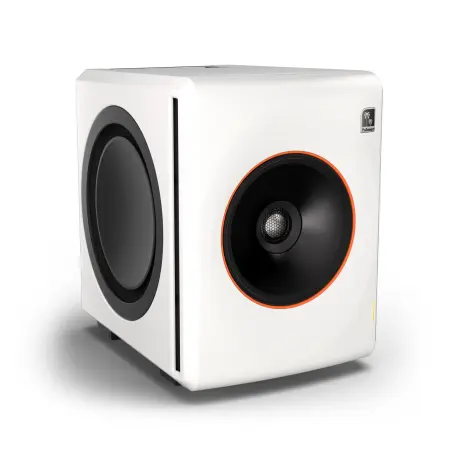

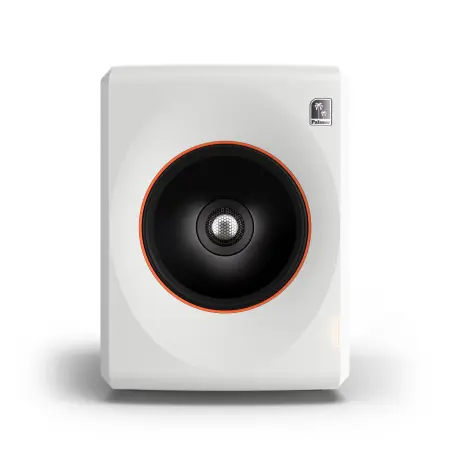

Palmer Orbit 11 W is the white-finish version of Palmer's high-performance 3-way coaxial studio monitor. Designed for critical listening environments, it delivers tight low-end and wide-range clarity without the need for a subwoofer. Its coaxial design with dual 8" woofers and a 6.5" mid plus 1" tweeter ensures exceptional phase coherence and stereo imaging across the entire 28Hz–28kHz spectrum.
Palmer Orbit 11 W Competitive Differences
- White cabinet finish for clean, modern studio aesthetics
- Coaxial point source with dual 8" woofers and FIR-based DSP alignment
Palmer Orbit 11 W Description
The
Palmer Orbit 11 W offers the same advanced monitoring performance as the original Orbit 11, with a sleek white finish to match lighter studio setups. Its 3-way coaxial configuration places the 6.5" mid and 1" tweeter on the same axis for a point-source experience, improving clarity and image stability.
Impulse-compensated 8" woofers handle bass down to 28Hz with minimal distortion. Built-in FIR filters operating at 96kHz/24-bit deliver a linear phase response with only 4ms latency, allowing for time-aligned, accurate monitoring.

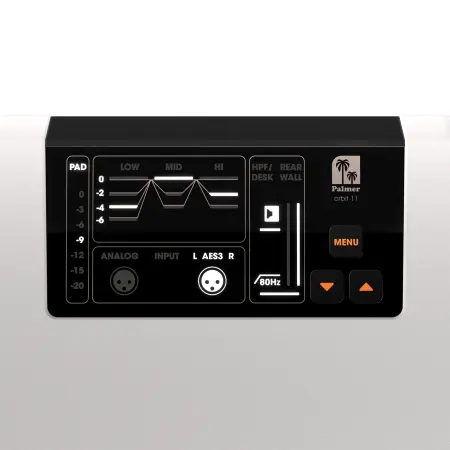

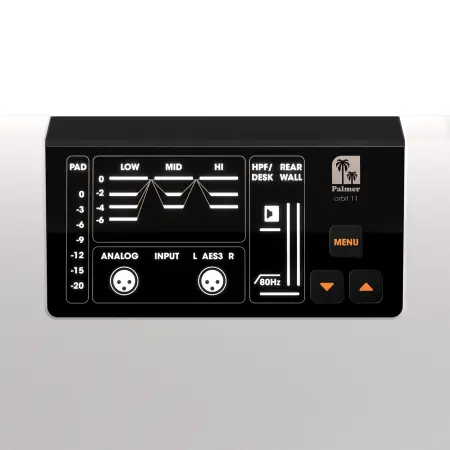

The die-cast aluminum enclosure ensures low resonance and long-term durability, while the cardioid front design minimizes reflections from rear walls. Top-panel DSP controls provide quick access to input selection, EQ, high-pass filters, and room compensation for desks or wall proximity.
Whether installed on desks or mounted on walls, the Orbit 11 W combines striking visuals with serious monitoring precision.
Model Features
- White version of the Orbit 11 studio monitor
- 3-way coaxial layout with 6.5" mid + 1" tweeter + dual 8" woofers
- 28Hz–28kHz linear frequency response (±3 dB)
- FIR DSP with 96kHz / 24-bit resolution
- Cardioid baffle design and 120° x 120° constant dispersion
- Top-mounted control panel for quick adjustments
- Analog XLR and AES3 digital inputs with daisy-chain out
Model Specifications
- Max SPL: 116dB
- Power Output: 1000W Peak / 400W RMS
- Frequency Response: 28Hz–28kHz (±3 dB)
- DSP: FIR filters @ 96kHz / 24-bit
- Drivers: 1" tweeter, 6.5" mid, 2 x 8" woofers
- Directivity: 120° x 120°
- Cabinet: Die-cast aluminum (5–16 mm)
- Finish: White
What's In The Box
- Orbit 11 W studio monitor (white)
- Power cable
- Quick start guide
PALMER PORBIT11WUS
(Palmer Orbit 11 White)
