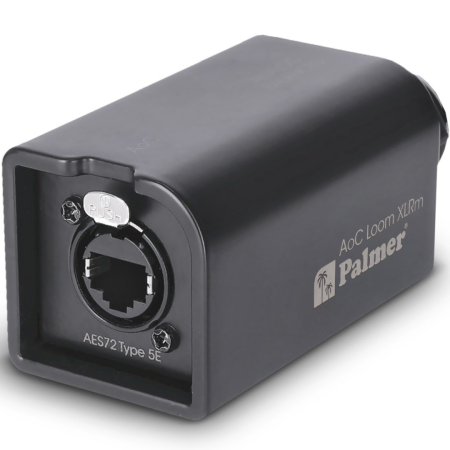

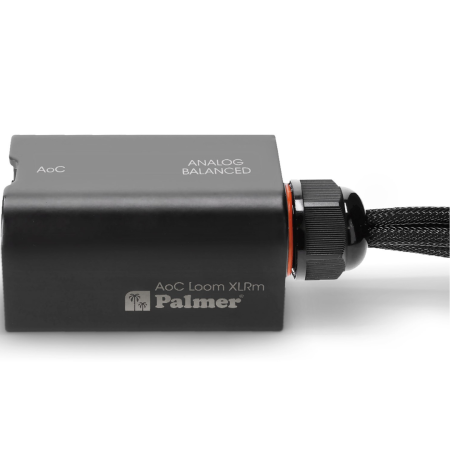

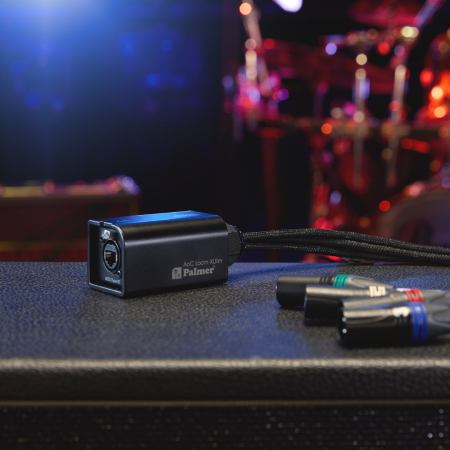

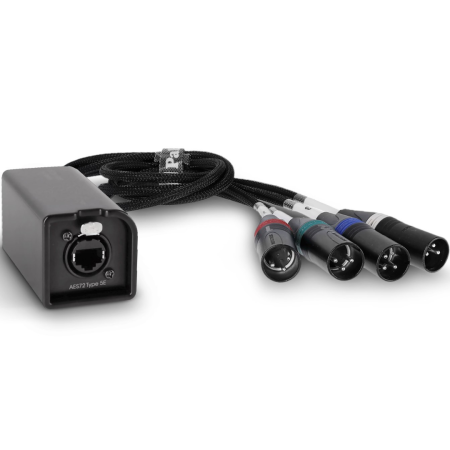

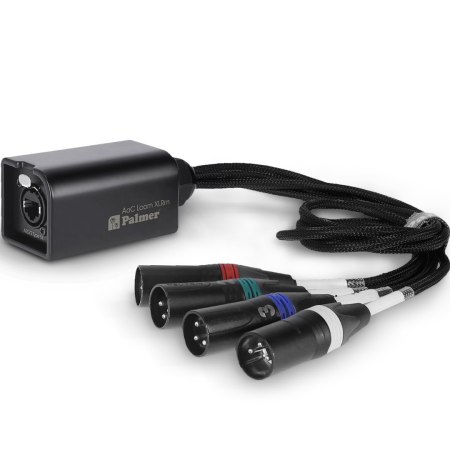

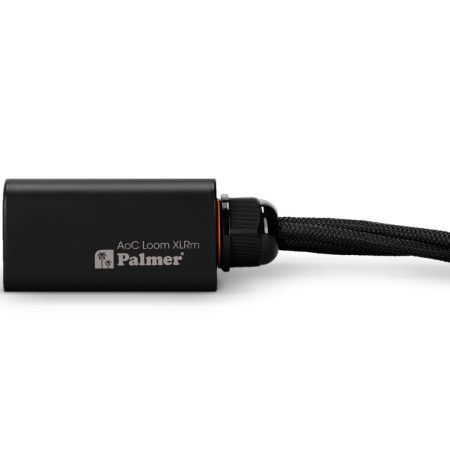

Palmer PAOCLXLRM

Compact 4-Channel XLR Audio Adapter Over Ethernet

The Palmer PAOCLXLRM is a durable and portable multicore adapter cable that enables the transmission of 4 balanced analog or 8 AES3 digital audio signals over a single Cat cable. Featuring male XLR outputs, this flexible tool is ideal for high-demand live events, studio sessions, or conference setups that require fast, efficient, and interference-free signal distribution.

Palmer PAOCLXLRM Competitive Differences

• Compact adapter format with 4 male XLR outputs and robust 0.5m mesh cable
• Color-coded and numbered outputs for easy signal identification
• Supports DMX, MIDI, and 48V phantom power transmission via Ethernet
• Heavy-duty aluminum and steel housing for long-term durability

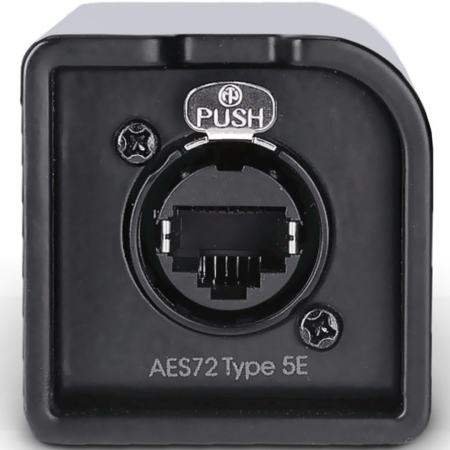

• Neutrik etherCON connector with anti-disconnect safeguard

Palmer PAOCLXLRM Description

With its compact, road-ready build, the PAOCLXLRM is a cost-effective alternative to conventional 4-channel multicore snakes. It’s designed for pro audio technicians who value mobility, reliability, and simplicity. This adapter facilitates audio, DMX, or MIDI control signals over a standard Ethernet cable, while maintaining pristine audio integrity.

The included etherCON connector prevents accidental disconnection, and the entire assembly is engineered with premium-grade materials, ensuring it withstands the rigors of professional use while delivering flawless signal quality.

PAOCLXLRM Features

• Transmits 4 balanced analog or 8 AES3 digital signals via RJ45

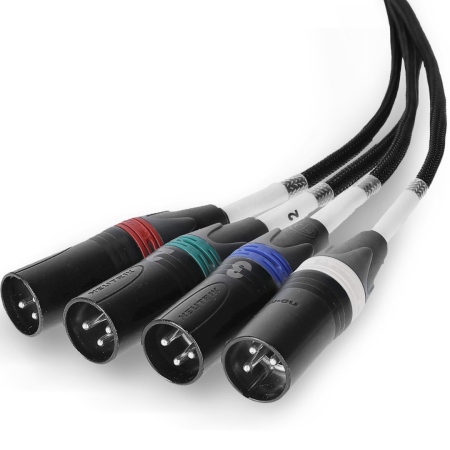

• Output connectors: 4x XLR 3-pin male
• Color-coded and numbered outputs for easy channel management
• Supports 48V phantom power, DMX, or MIDI control signals
• Includes a 0.5m mesh cable with robust splice
• Premium Neutrik etherCON connector with locking protection
• Durable aluminum and steel chassis

PAOCLXLRM Specifications

• Input: 1x RJ45 (etherCON)
• Outputs: 4x XLR 3-pin male, balanced
• Cable Length: 19.7 in (0.5 m)
• Max Input Level: +32 dBu
• Frequency Range: 0 Hz – 20 kHz
• THD: < 0.0005%
• Housing: Aluminum and steel
• Dimensions: 3.1" x 1.8" x 1.8" (80 x 45 x 45 mm)
• Weight: 0.84 lbs (0.38 kg)
• Operating Temperature: -4°F to 158°F (-20°C to 70°C)
• Humidity Tolerance: > 80% non-condensing

Palmer PAOCLXLRM (Palmer PAL-PAOCLXLRM)
