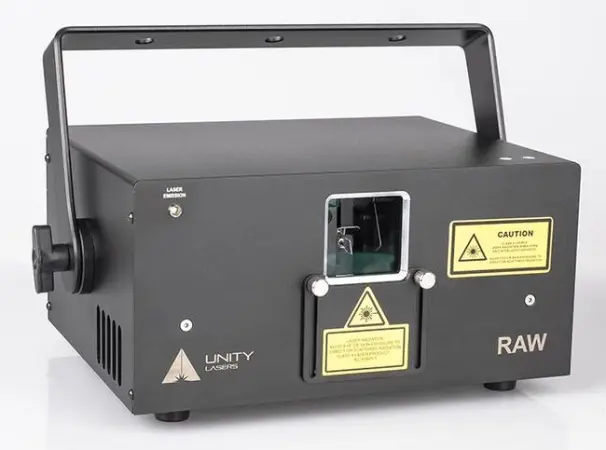

Pangolin Unity RAW 5

Full-Color RGB Laser Projector

The Pangolin Unity RAW 5 is a powerful and versatile laser system engineered for DJs, clubs, and entertainment venues seeking impactful beam effects and the flexibility of laser graphics. With 5,000mW of guaranteed output, this compact projector delivers bold aerial effects, text, logos, and animations—making it an excellent all-in-one solution for live shows and fixed installations.

Pangolin Unity RAW 5 Competitive Differences

• 5W RGB output for vibrant aerial effects and text projection
• Includes E-STOP, ILDA cable, and safety accessories for plug-and-play use

Pangolin Unity RAW 5 Description

The Unity RAW 5 offers outstanding performance at an economical price point, tailored for professionals and hobbyists alike. Its diode-based RGB engine (1300mW red, 1500mW green, 2200mW blue) provides high brightness with clean color blending, ideal for both indoor and small outdoor laser shows. Equipped with 25K PPS scanners and a 50° scan angle, the RAW 5 handles laser text, logos, and animations with ease while maintaining crisp beam control for aerial effects. Its analog modulation at 50kHz ensures smooth color fades and gradients, enhancing the quality of graphics and beam shows. Control is simple via standard ILDA, and even more powerful when paired with Pangolin’s FB3QS or FB4 hardware and QuickShow software. The system includes essential safety components like a mechanical shutter, keyed interlock, and daisy-chained E-STOP compatibility, ensuring reliable and compliant operation. Whether you're lighting up a club, running a mobile DJ rig, or designing laser graphics, the RAW 5 balances quality, power, and affordability.

Model Features

• Full-color RGB laser system with 5,000mW guaranteed output
• Designed for beam shows, text, logos, and laser mapping
• Analog modulation at 50kHz for smooth fades
• 25K PPS scanning speed with 50° scan angle
• Compatible with ILDA, DMX, and ArtNET (with Pangolin software)

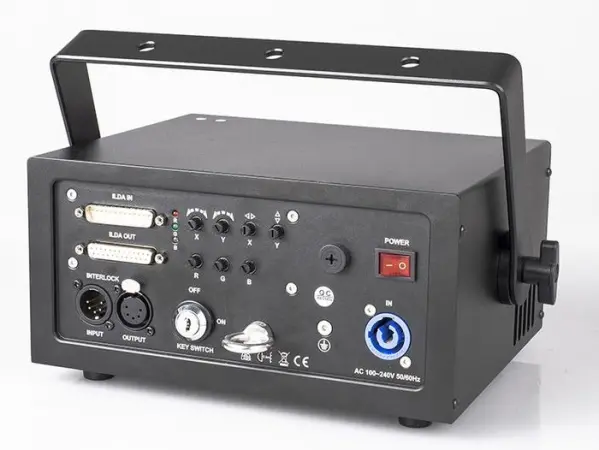

• Safety features include scan-fail protection, keyed interlock, and emission delay

Model Specifications

• Max Optical Output: >5,000mW
• Red / Green / Blue (mW): 1300 | 1500 | 2200
• Beam Size: 5 x 3 mm
• Beam Divergence: <1.1mrad (Full Angle)
• Scanning Speed: 25,000 PPS @ 8°
• Scan Angle: Max 50°
• Modulation: Analog 50kHz
• Control: ILDA (compatible with Pangolin FB3QS / FB4 + QuickShow)
• Power Requirements: 100–230V / 50Hz
• Power Consumption: Max. 100W
• Ingress Protection: IP20
• Operating Temperature: 10–40°C
• Dimensions: 9.4 x 5.0 x 7.6 in (238 x 126 x 192 mm)
• Weight: 15.4 lb (7 kg)

What's In The Box

• Unity RAW 5 laser projector
• Power cord
• 10M ILDA signal cable
• E-STOP box with 10M cable
• Set of 4 safety keys
• 3-pin interlock bypass plug
• User guide
