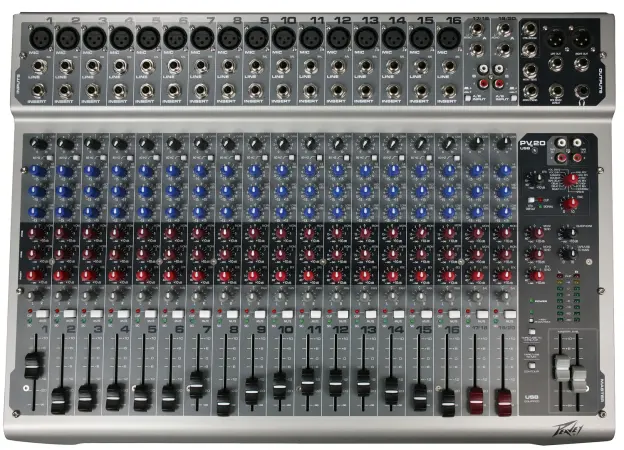

Peavey PV20 USB

Peavey PV 20 USB (Peavey PV-20 USB)

Overview
The PV 20 USB features built-in DSP effects with multiple reverbs and delays, plus vocal enhancer and much more, while a USB port allows direct connection to a USB-equipped computer for recording from the mixer or playing back digital audio (compatible with Mac OSX, Windows XP, ME & 2000). It also includes pre-fader monitor sends; post-fader effects send; inserts on all channels; and dual, switchable line inputs on the two stereo channels. All PV Series mixers include our Tape to Control Room and Tape to Mix assigns, which allow the operator to monitor an external stereo signal without using any of the mixer's channels. In addition, the mixers' Control Room output sends a stereo master output signal to an external source for monitoring. Phantom power, effects send and a contour switch are also standard on all models.
Features
Compatable with Mac OSX, Win XP, ME and 2000
Built-in DSP effects processor
Sixteen RQ™ (reference quality) low noise microphone inputs with insert points
Channels 17/18 and 19/20 with dual switchable stereo line inputs
3-band EQ on all channels
LED clip, signal and mute indication
Two pre-fader monitor sends
One post-fader effects send
Precision 60 mm faders on input channels and stereo master out
Control room outputs, global 48V phantom power
Tape to control room and tape to mix assignments
Stereo outputs with 1/4" unbalanced and XLR balanced connectors
Rugged console design
Universal switching power supply
USB port to connect to a computer for recording or playing back digital audio to/from computer
Weight Unpacked: 17.50 lb(7.938 kg)
Weight Packed: 21.00 lb(9.525 kg)
Width Packed: 6.12"(15.5448 cm)
Height Packed: 27.87"(70.7898 cm)
Depth Packed: 19.5"(49.53 cm)
