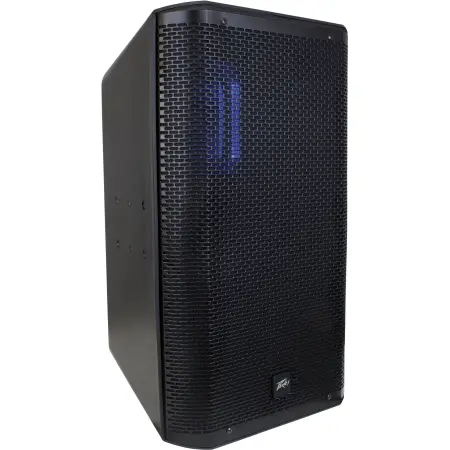

Peavey RBN112

The RBN 112 enclosure is a top quality, ultra-reliable loudspeaker. Unique to the RBN 112 is Peavey’s world-class ribbon driver. Used in studio environments for decades, Peavey has developed a method for applying this high-quality sound technology to live applications. The result is crystal-clear audio that traditional compression driver cannot rival.

To match the incredible high-frequency performance of Peavey’s ribbon driver, the RBN 112 enclosure is equipped with dual-voice coil neodymium Scorpion® speakers which feature Peavey’s exclusive field replaceable basket technology.

Incorporating modern digital signal processing, the RBN™ series features two XLR/1/4" combination inputs, a 3.5mm input, and a mic/line level selection. Each input features digital infrasonic high-pass filters, a 9-band graphic EQ, and delay.

Each output features a sophisticated compressor/limiter and fourth order high-pass/low-pass filters for crossover function and external subwoofer incorporation.

RBN enclosures feature an internal temperature monitor combined with a variable speed cooling fan, plus level and clip indication to ensure optimal performance. Completely user-friendly, the speaker system features internal presets built into the DSP, allowing users to quickly select the speaker’s application or orientation via the LCD on the rear of the enclosure.

FEATURES
Speaker configuration
Active/passive: Active
Type: 2-Way full range
LF driver: 12"
HF driver: Ribbon
Power amp (active)
Amplifier type: D
Wattage: 1500W
Mixer/preamp: No
Audio
Frequency response: 36Hz
Coverage pattern:
Max SPL: 130dB
Enclosure
Construction: ABS
Width: 14.07" (357.4 mm)
Height: 24" (609.6 mm)
Depth: 14.07" (357.4 mm)
Weight: 39 lb. (17.7 kg)
Inputs
XLR/TRS Combo 2
Output/thru

PV RBN-112 Speaker (Peavey RBN112)
