ProX X-PC10ASTRO

Rackmount Power Distribution Center

The ProX X PC10ASTRO is a 10-outlet, 1U rackmount power distribution center designed to organize and monitor power in professional audio, video, DJ, studio, and production racks. Ten rear-mounted AC outlets keep power cabling behind the equipment, while integrated voltage and amperage metering, surge protection, an LED worklight, a 5V USB port, and locking powerCON connections provide useful control and monitoring in a compact rack space.

ProX X PC10ASTRO Competitive Differences

• Ten rear-mounted AC outlets keep power connections and cable runs behind the rack
• Integrated voltage and amperage LED display provides real-time power monitoring
• Built-in surge protection helps protect connected rack equipment from power spikes

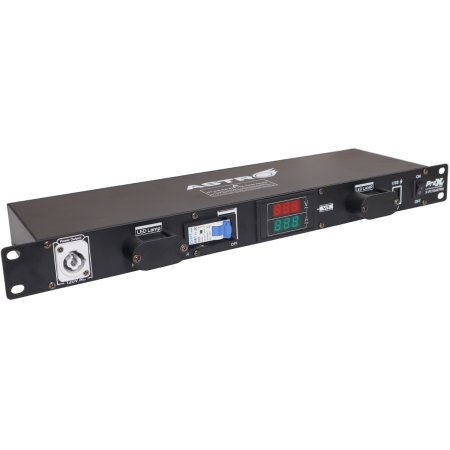

• Front-panel breaker switch provides centralized power control and protection
• Locking powerCON input and output connections support secure power linking
• Built-in LED worklight helps illuminate rack equipment in low-light environments
• 5V USB port provides convenient power for compatible USB devices and accessories
• Compact 1U chassis fits standard 19-inch equipment racks
• Rugged aluminum and steel construction is designed for regular production use

ProX X PC10ASTRO Description

The ProX X PC10ASTRO provides centralized power distribution for professional rack systems while keeping AC connections neatly routed behind the equipment. Its ten rear-mounted outlets are useful for powering mixers, processors, wireless systems, playback equipment, video gear, lighting controllers, and other rack-mounted devices without filling the front of the rack with power cables.

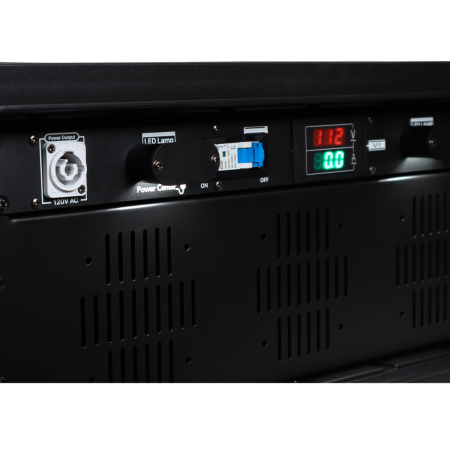

An integrated A/V meter displays voltage and current information for convenient monitoring of the rack's electrical load. Built-in surge protection and a front-panel breaker switch add protection and control, while the unit carries a maximum total load rating of 15A.

Locking powerCON input and output connectors provide secure power connections and allow compatible power distribution setups to be linked where appropriate. A built-in LED worklight adds visibility when operating or servicing equipment in dark booths, backstage areas, studios, and production environments.

The front-panel 5V USB port provides a convenient connection for charging compatible portable devices or powering USB accessories. Rugged aluminum and steel construction supports repeated professional use, while the 1U, 19-inch rackmount format makes the unit easy to integrate into mobile and installed systems.

X PC10ASTRO Features

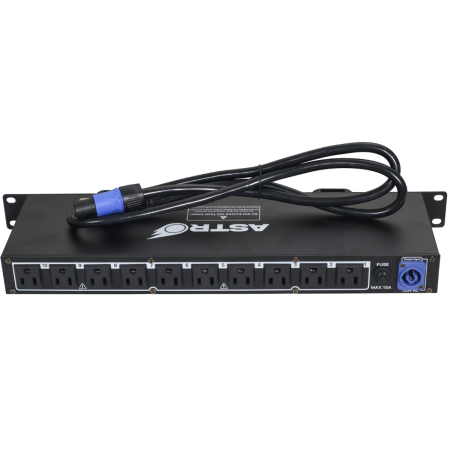

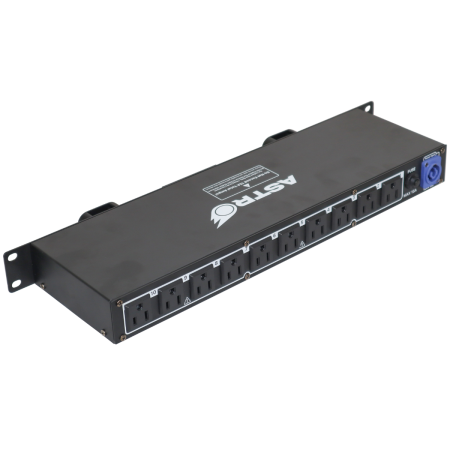

• 10 rear-mounted AC outlets
• 1U rackmount design
• Fits standard 19-inch equipment racks
• Integrated voltage and amperage LED meter
• Built-in surge protection
• Front-panel breaker switch
• Maximum total load of 15A
• Locking powerCON input and output connectors
• Built-in LED worklight
• 5V USB charging port
• Rear-panel outlet layout for organized cable management
• Rugged aluminum and steel construction
• Suitable for DJ, pro audio, video, studio, live event, and AV production racks
• Indoor use only

X PC10ASTRO Specifications

• Power Distribution: 10 rear-mounted AC outlets
• Rack Size: 1U
• Rack Compatibility: Standard 19-inch rack
• Maximum Total Current Draw: 15A
• Metering: Voltage and current LED display
• Protection: Surge protection and breaker switch
• Power Connections: powerCON input and output
• USB Output: 5V USB port
• Worklight: Integrated LED lamp
• Construction: Aluminum and steel
• Use: Indoor, dry locations only
• Dimensions: 19.00 x 5.50 x 2.00 in (483 x 140 x 51 mm)
• Weight: 5.00 lb (2.27 kg)
• Shipping Dimensions: 20.00 x 8.00 x 2.50 in
• Shipping Weight: 6.00 lb
• UPC: 804589618782

What's In The Box

• ProX X PC10ASTRO power distribution center
• Power cord

ProX X-PC10ASTRO (ProX XPC10ASTRO)
