ProX X-PW CONLEDX6 RITA

20A Power Distribution Box

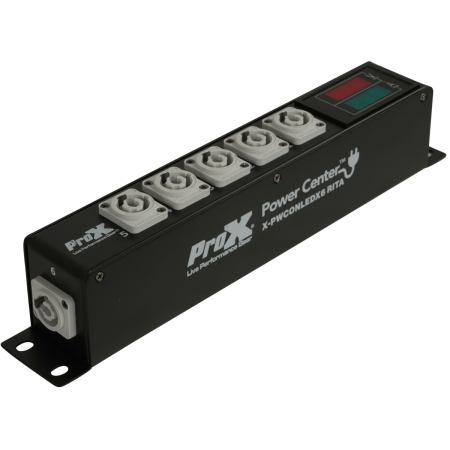

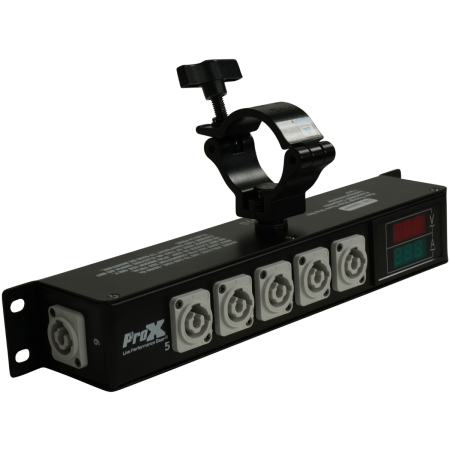

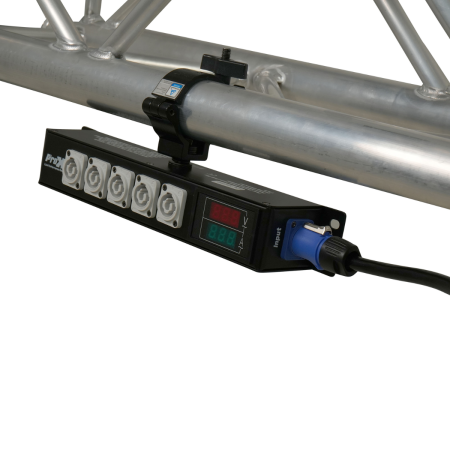

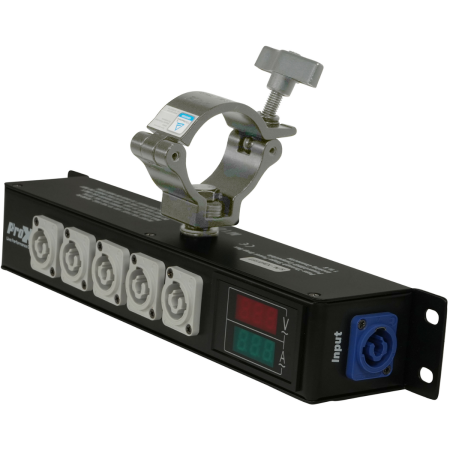

The ProX X-PW CONLEDX6 RITA is a compact power distribution box designed to provide secure, monitored AC power for live sound, stage lighting, broadcast, video production, mobile DJ, and other professional AV systems. One locking powerCON compatible input distributes power to five locking outputs, while the integrated LED voltage and amperage meter provides real-time information about the connected power source and system load.

ProX X-PW CONLEDX6 RITA Competitive Differences

• One REAN by NEUTRIK powerCON compatible locking input provides a secure upstream power connection
• Five powerCON compatible locking outputs distribute power from one centralized connection point
• Integrated LED voltage and amperage meter displays line voltage and total current draw in real time
• 20A rating supports professional power distribution applications using compatible 20A circuits and distribution systems
• Compact 2.00 x 2.75 x 13.00 in chassis fits easily into racks, equipment cases, shelves, and production setups
• Lightweight 2.00 lb construction minimizes added weight in portable and touring systems

ProX X-PW CONLEDX6 RITA Description

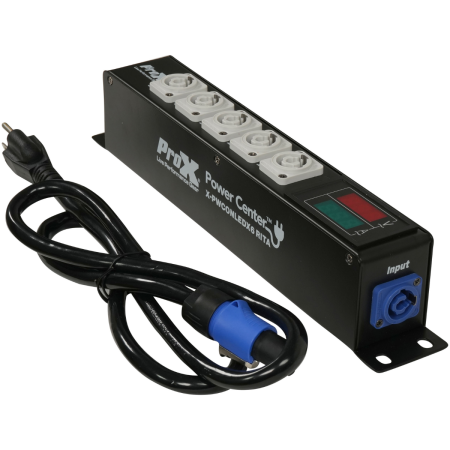

The ProX X-PW CONLEDX6 RITA provides a centralized way to distribute power to multiple pieces of professional production equipment while maintaining locking connections throughout the power chain. Its REAN by NEUTRIK powerCON compatible input accepts the upstream power connection, while five powerCON compatible outputs provide secure connections for downstream equipment.

The locking connector design helps reduce the risk of accidental disconnection caused by cable movement, crowded equipment areas, or routine handling during setup and teardown. Using one upstream connection for five outputs can also simplify cable management in live sound, lighting, broadcast, touring, and mobile production systems.

A built-in LED V&A meter continuously displays line voltage and total current draw. This gives operators a convenient way to check the incoming power source before equipment is brought online and monitor the connected load during operation.

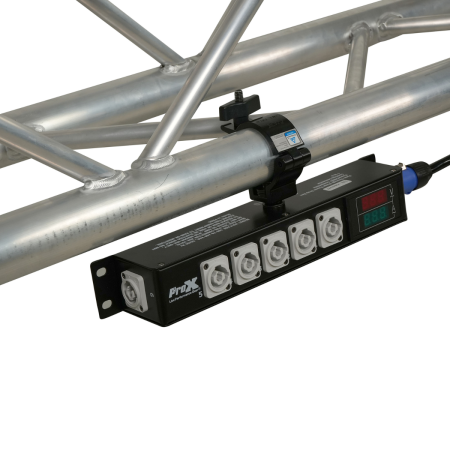

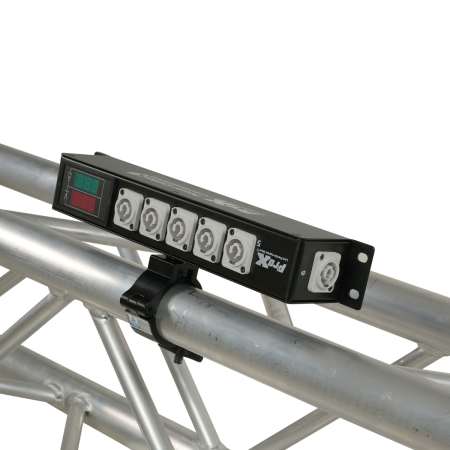

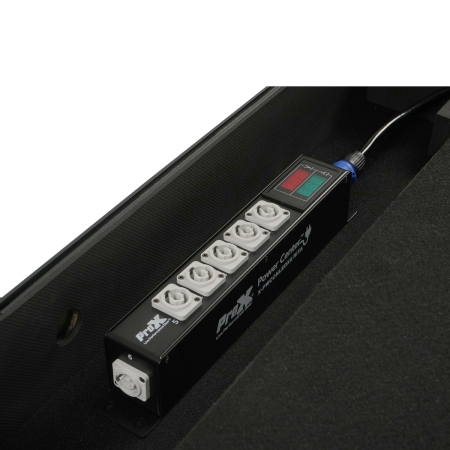

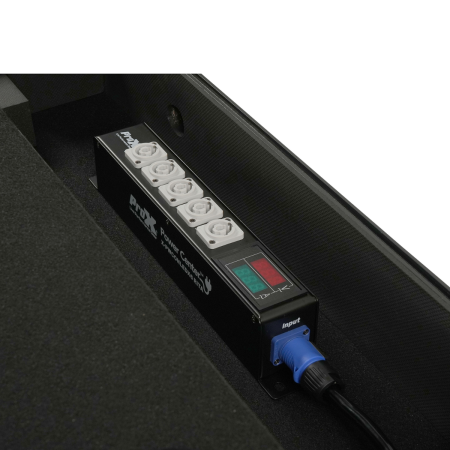

The low-profile chassis measures only 2.00 inches high, 2.75 inches wide, and 13.00 inches long while weighing 2.00 pounds. Its compact design makes it suitable for rack systems, amp shelves, production cases, console areas, mobile DJ systems, theatrical setups, houses of worship, studios, corporate AV systems, and other applications where secure and organized power distribution is required.

X-PW CONLEDX6 RITA Features

• 20A professional power distribution box
• 1 REAN by NEUTRIK powerCON compatible locking input
• 5 powerCON compatible locking outputs
• Single-input, five-output power distribution configuration
• Integrated LED voltage and amperage meter
• Real-time line voltage monitoring
• Real-time total current draw monitoring
• Locking connections help reduce accidental power disconnections
• Compact low-profile chassis for racks, shelves, cases, and portable production systems
• Suitable for live sound, stage lighting, broadcast, video production, mobile DJ, studio, theatrical, corporate AV, and touring applications

X-PW CONLEDX6 RITA Specifications

• Current Rating: 20A

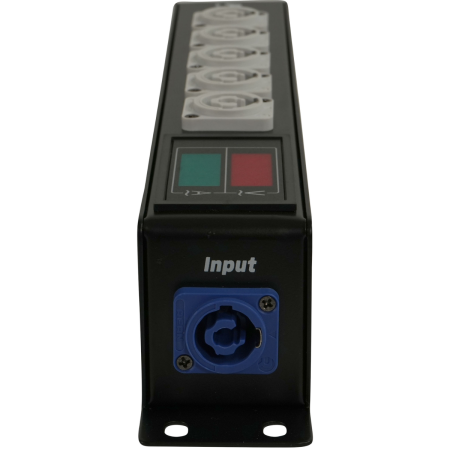

• Power Input: 1 x REAN by NEUTRIK powerCON compatible locking connector

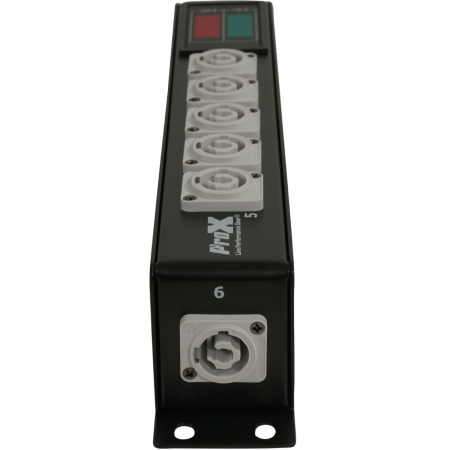

• Power Outputs: 5 x powerCON compatible locking connectors
• Metering: LED voltage and amperage display
• Exterior Dimensions: 2.00 x 2.75 x 13.00 in (50.8 x 69.9 x 330.2 mm)
• Weight: 2.00 lb (0.91 kg)
• Shipping Dimensions: 13.00 x 4.00 x 3.00 in (330.2 x 101.6 x 76.2 mm)
• Shipping Weight: 3.00 lb (1.36 kg)
• Shipping Boxes: 1
• Suggested Shipping Method: Parcel
