ProX X-PWTR1LEDX6DANA

Locking Power Distribution Center

The ProX X-PWTR1LEDX6DANA DANA is a compact single-input, six-output locking power distribution center designed for professional stage lighting, AV, DJ, touring, and live production systems. It combines REAN by NEUTRIK PowerX locking connections with real-time voltage and amperage monitoring, allowing multiple compatible devices to receive power from one organized distribution point while operators monitor the incoming supply and total current draw.

ProX X-PWTR1LEDX6DANA Competitive Differences

• One locking power input distributes AC power to six locking outputs for centralized multi-device power distribution.
• Real-time LED voltage and amperage meter displays incoming voltage and total current draw directly on the unit.
• REAN by NEUTRIK PowerX connectors provide secure twist-lock power connections throughout the distribution box.
• Five top-mounted outputs plus one side-mounted output provide flexible cable routing for truss, rack, stage, and mobile applications.
• Rated up to 20A at 100-240V AC, 50/60 Hz when used with appropriately rated upstream power components.
• 12 AWG pure copper internal conductors support high-current professional power distribution.
• M10 threaded mounting point and four additional mounting holes support truss, wall, case, and installation applications.

ProX X-PWTR1LEDX6DANA Description

The ProX X-PWTR1LEDX6DANA provides six locking power outputs from a single centralized input, reducing the number of individual feeder runs needed across a stage, truss system, equipment rack, or production area. It is designed for compatible lighting fixtures, powered audio equipment, video systems, signal processors, wireless systems, and other professional production gear.

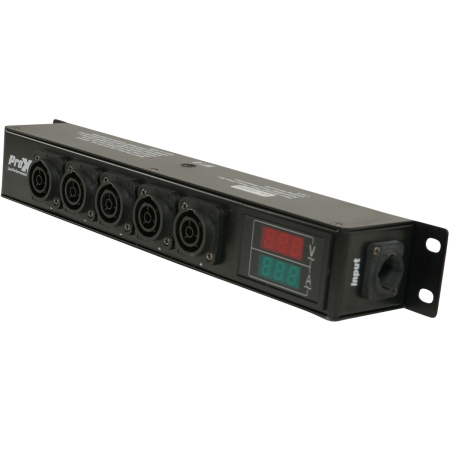

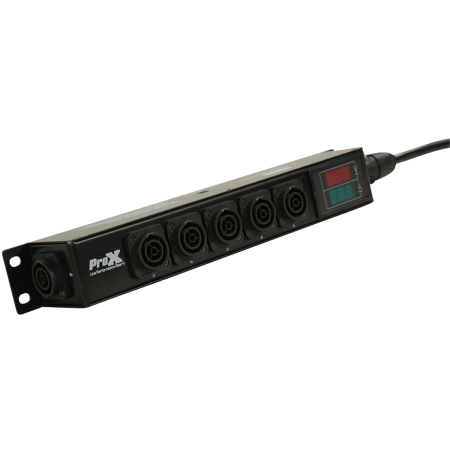

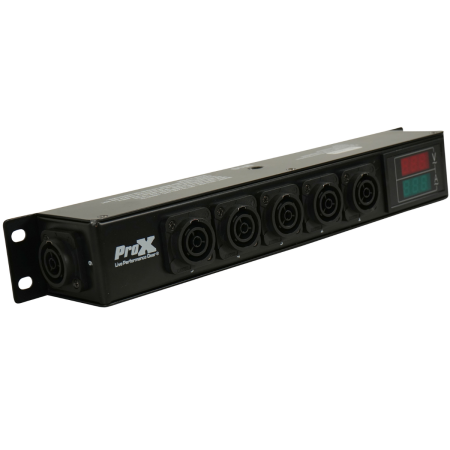

Power enters through a side-mounted REAN by NEUTRIK PowerX RCAC3M-X-000 male locking connector. Six REAN by NEUTRIK PowerX RCAC3F-X-000 female connectors provide the outputs, with five positioned on the top panel and one on the side. The twist-lock connection system helps prevent accidental disconnection while allowing flexible cable routing in different installation orientations.

A built-in LED voltage and amperage meter provides continuous visual monitoring of incoming line voltage and the combined current draw of connected equipment. This makes it easier to evaluate power conditions and monitor system loading during setup and operation.

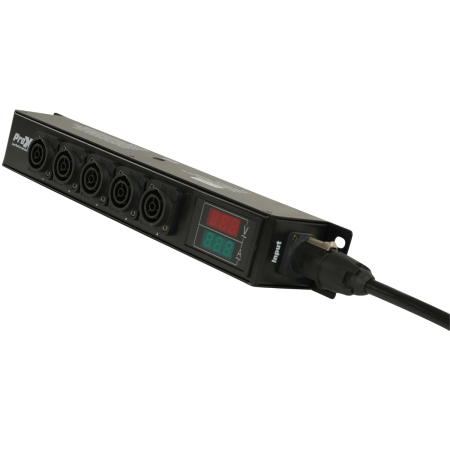

The rugged metal chassis uses 12 AWG pure copper internal conductors and is designed for a maximum unit load of 20A at 100-240V AC, 50/60 Hz. The included 12 AWG feeder cable uses a NEMA 5-15P Edison plug and REAN by NEUTRIK PowerX RCAC3F-X-000 locking connector. Because a NEMA 5-15P plug is rated for 15A at 125V, actual allowable current must never exceed the rating of the plug, cable, branch circuit, power source, or other upstream component being used.

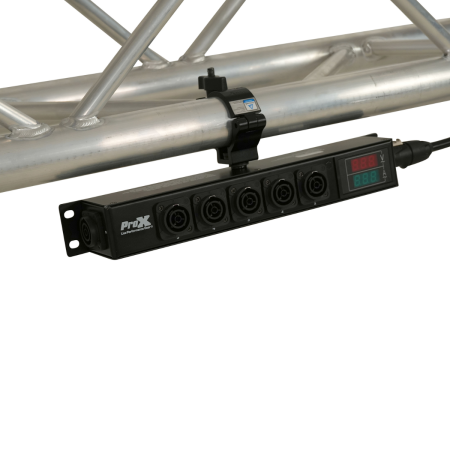

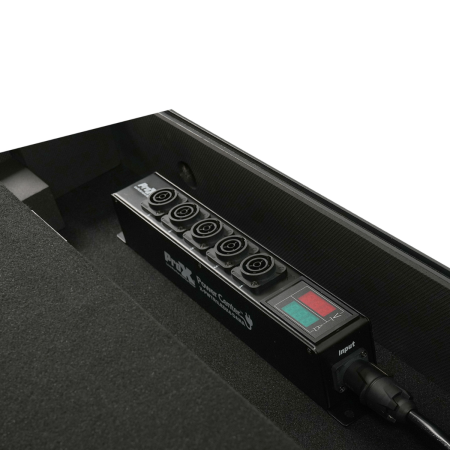

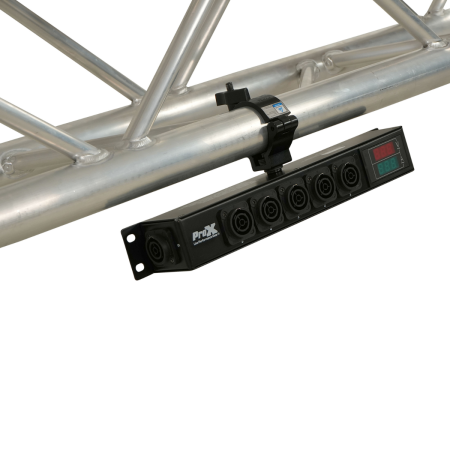

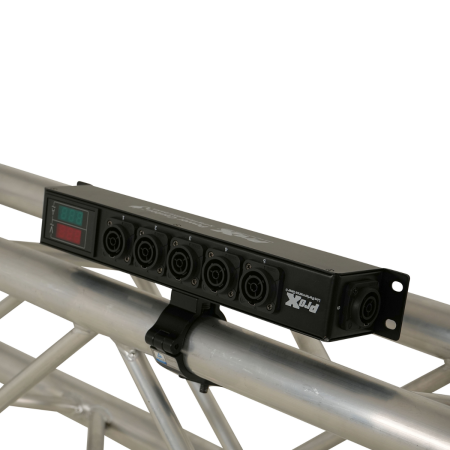

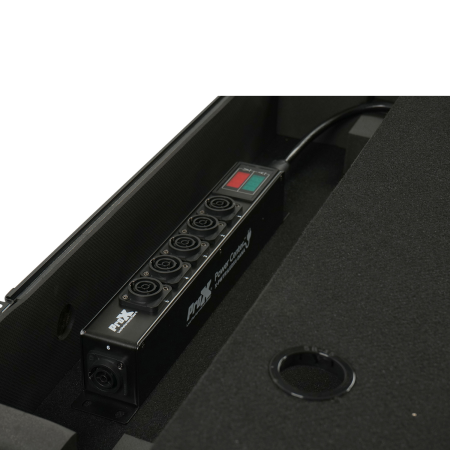

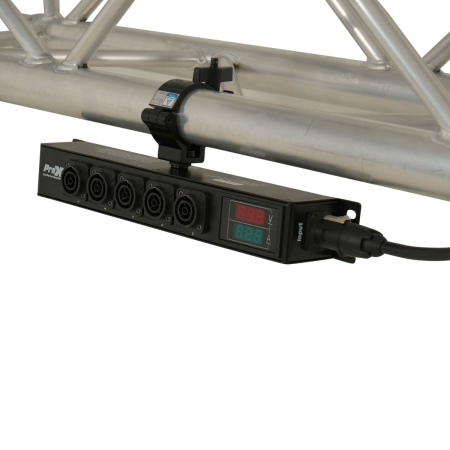

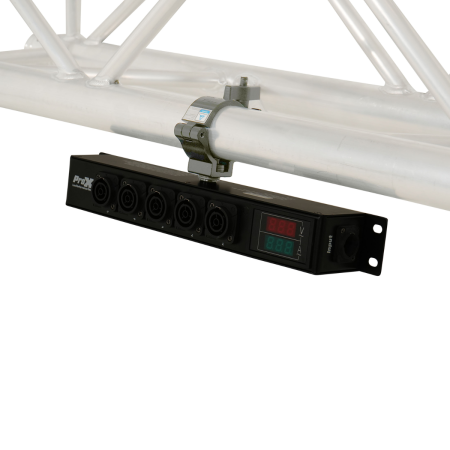

An M10 threaded rear mounting point accommodates compatible truss clamps and rigging hardware, while four additional mounting holes allow wall or case installation. Its compact 14.50-inch chassis can also be incorporated into rack-based systems while keeping power distribution organized and accessible.

X-PWTR1LEDX6DANA Features

• Single-input, six-output locking power distribution
• Six REAN by NEUTRIK PowerX locking outputs
• Five top-mounted outputs and one side-mounted output
• Side-mounted REAN by NEUTRIK PowerX locking input
• Input Connector: RCAC3M-X-000 male
• Output Connectors: 6 x RCAC3F-X-000 female
• Real-time LED voltage meter
• Real-time LED amperage meter
• Maximum unit rating of 20A
• 100-240V AC, 50/60 Hz operating range
• 12 AWG pure copper internal conductors
• Secure twist-lock connection system
• Clearly numbered outputs for easier cable identification
• All-metal steel chassis
• M10 threaded rear mounting point
• Four additional mounting holes
• Suitable for truss, wall, case, and rack-based installations
• Linkable power distribution design for larger systems within applicable load limits
• UL and cUL tested components
• IP20 rated
• Indoor use only

X-PWTR1LEDX6DANA Specifications

• Power Distribution: 1 input to 6 outputs
• Power Input: 1 x REAN by NEUTRIK PowerX RCAC3M-X-000 male locking connector
• Power Outputs: 6 x REAN by NEUTRIK PowerX RCAC3F-X-000 female locking connectors
• Output Configuration: 5 top-mounted, 1 side-mounted
• Maximum Unit Rating: 20A
• Operating Voltage: 100-240V AC
• Frequency: 50/60 Hz
• Metering: Real-time LED voltage and amperage display
• Internal Conductors: 12 AWG pure copper
• Included Cable Gauge: 12 AWG
• Included Cable AC Plug: NEMA 5-15P Edison male
• Included Cable Locking Connector: REAN by NEUTRIK PowerX RCAC3F-X-000 female
• Mounting: M10 threaded rear mount and 4 mounting holes
• Ingress Protection: IP20
• Use: Indoor only
• Exterior Dimensions: 2.50 x 2.00 x 14.50 in (63.5 x 50.8 x 368.3 mm)
• Weight: 2.20 lb (1.00 kg)
• Shipping Dimensions: 15.00 x 4.00 x 3.00 in (381 x 101.6 x 76.2 mm)
• Shipping Weight: 3.00 lb (1.36 kg)
• UPC: 798239008064

What's In The Box

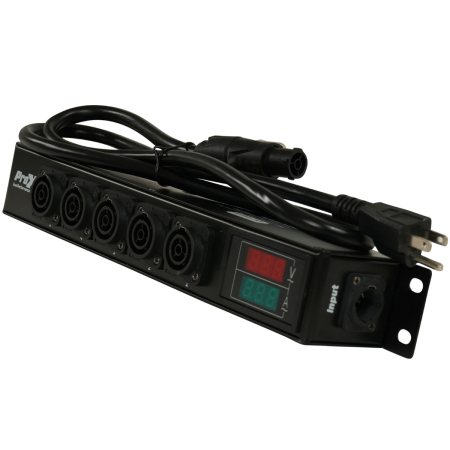

• ProX X-PWTR1LEDX6DANA DANA power distribution center

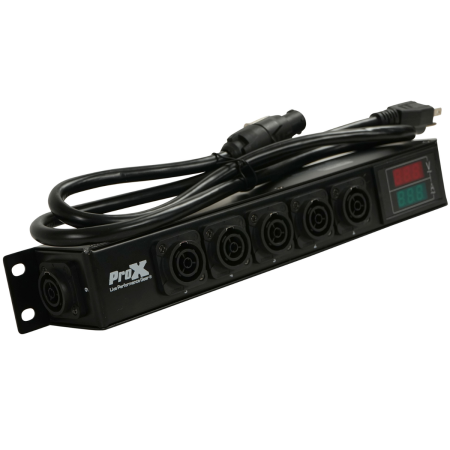

• 12 AWG power cable with NEMA 5-15P male plug and REAN by NEUTRIK PowerX RCAC3F-X-000 female connector

Safety Information

• Do not exceed the rated capacity of the distribution unit or any connected plug, cable, branch circuit, or upstream power source.
• The supplied NEMA 5-15P input plug is rated for 15A at 125V.
• IP20 rated for indoor use only.
• Do not expose the unit to rain or moisture.
