ProX X-PWCX4BOX

Power Distribution Splitter

The ProX X-PWCX4BOX is a compact indoor power distribution splitter designed to feed up to four compatible lighting fixtures or production devices from one centralized power source. Its 20A total rating, metal enclosure, LED power indicator, and M8 threaded mounting point make it useful for truss systems, mobile lighting rigs, touring productions, and custom equipment-case installations.

ProX X-PWCX4BOX Competitive Differences

• One power input distributes AC power to four PowerCON-compatible output connections.
• 20A total inlet and outlet rating supports multi-fixture lighting and AV power distribution.
• LED power indicator provides immediate visual confirmation when the distribution box is energized.

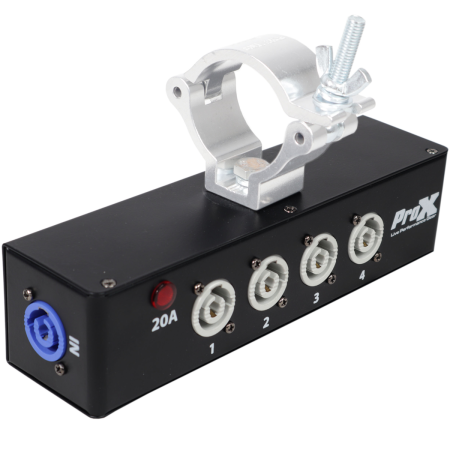

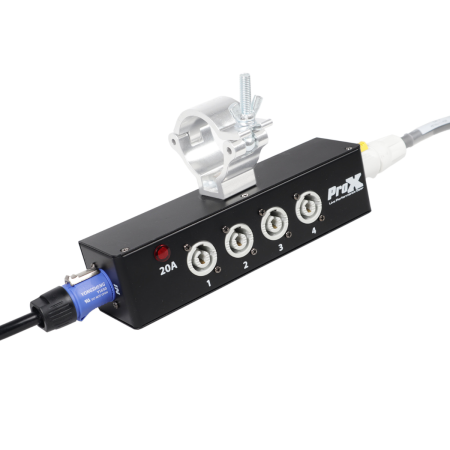

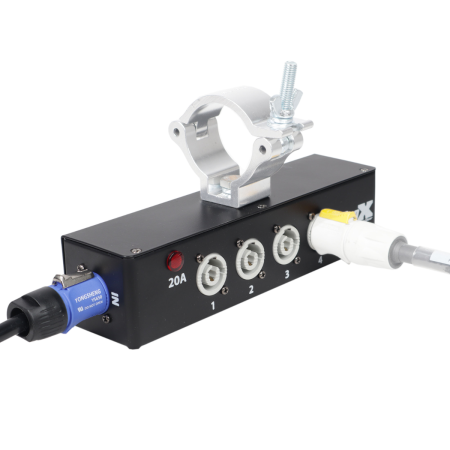

• M8 threaded mounting point accepts compatible truss clamps and mounting adapters.
• Compact metal enclosure measures only 8.75 inches long and weighs 1.50 lb for easy integration into portable rigs.
• Designed for use with UL-rated SJT 14-gauge power cabling.

ProX X-PWCX4BOX Description

The ProX X-PWCX4BOX provides a simple way to distribute power to as many as four compatible fixtures from a single centralized connection. Instead of running individual source cables to every fixture, the splitter can be positioned closer to the lighting rig or truss to create cleaner, more organized power runs.

Four PowerCON-compatible output connections provide a combined 20A total capacity. An integrated LED indicator makes it easy to confirm that the unit is receiving power, which is especially useful during setup and troubleshooting in dark stages, clubs, event spaces, and production environments.

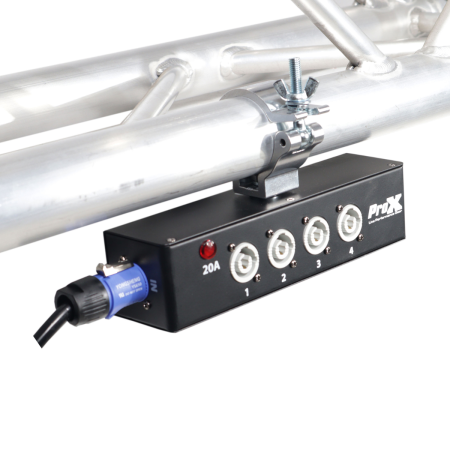

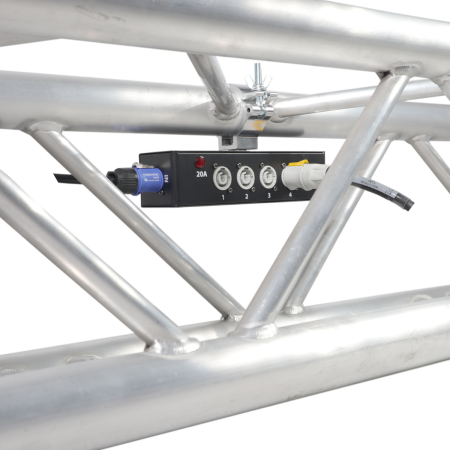

The metal enclosure is designed for repeated installation and transport, while an M8 threaded mounting point allows the unit to attach to compatible truss clamps or adapters. At only 8.75 inches long and 1.50 lb, the X-PWCX4BOX can be incorporated into truss systems and custom production cases without adding significant size or weight.

Designed for indoor professional lighting and AV applications, the X-PWCX4BOX is a practical power-distribution solution for mobile DJs, lighting technicians, production companies, venues, and installers that need centralized power for multiple compatible fixtures.

X-PWCX4BOX Features

• 4-way PowerCON-compatible power distribution
• One power input
• Four PowerCON-compatible outputs
• Powers up to four compatible fixtures or devices
• 20A total inlet and outlet rating
• LED power indicator
• Metal enclosure
• M8 threaded mounting hole
• Compatible with appropriate truss clamps and mounting adapters
• Designed for UL SJT 14-gauge power cabling
• Compact design for truss systems and custom case builds
• Suitable for touring productions and fixed installations
• Designed for indoor use

X-PWCX4BOX Specifications

• Power Distribution: 1 input to 4 outputs
• Outputs: 4 PowerCON-compatible connections
• Total Current Rating: 20A
• Power Indicator: LED
• Power Cable Type: UL SJT 14-gauge
• Enclosure: Metal

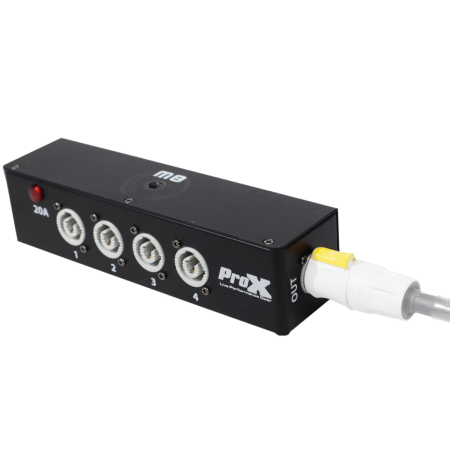

• Mounting Point: M8 threaded hole
• Application: Indoor use
• Exterior Dimensions: 2.25 x 2.25 x 8.75 in (57.2 x 57.2 x 222.3 mm)
• Weight: 1.50 lb (0.68 kg)
• Shipping Dimensions: 2.50 x 4.00 x 10.50 in (63.5 x 101.6 x 266.7 mm)
• Shipping Weight: 2.00 lb (0.91 kg)

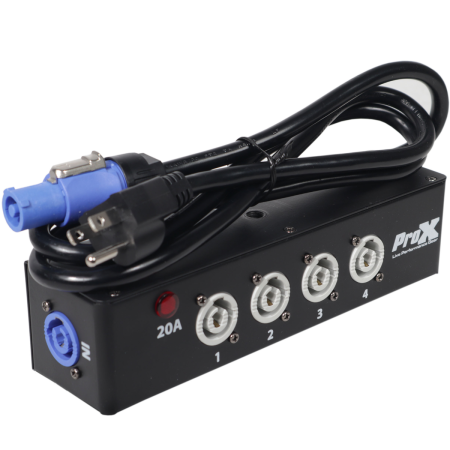

What's In The Box

• ProX X-PWCX4BOX power distribution box
• UL SJT 14-gauge power cord

ProX X-PWCX4BOX (ProX XPWCX4BOX)
