ProX X-PWTR1X5LYRA

Locking Power Distribution Box

The ProX X-PWTR1X5LYRA is a compact 1-to-5 locking power distribution box designed to simplify AC power routing for stage lighting, DJ systems, touring productions, and AV installations. A single locking power input feeds five locking outputs, allowing multiple compatible fixtures and devices to receive power from one organized distribution point.

ProX X-PWTR1X5LYRA Competitive Differences

• Splits one locking power input into five locking outputs for streamlined multi-device power distribution.
• Uses REAN by NEUTRIK PowerX connectors throughout for secure twist-lock connections.
• Four top-mounted outputs plus one side-mounted output provide flexible cable routing across truss and stage systems.
• Rated for up to 20A at 100-240V AC, 50/60 Hz, subject to the ratings of the input cable, plug, circuit, and upstream power source.
• 12 AWG pure copper internal conductors support low-resistance power distribution.
• M10 threaded rear mounting point and four additional mounting holes support truss, wall, case, and installation applications.
• Compact 11.75-inch chassis can be integrated into 1U rack installations without occupying the full width of a 19-inch rack bay.

ProX X-PWTR1X5LYRA Description

The ProX X-PWTR1X5LYRA provides a centralized way to distribute power to as many as five compatible devices from a single locking input. It is especially useful for moving heads, LED fixtures, stage lighting systems, mobile DJ rigs, and touring productions where minimizing separate power drops can simplify setup and cable management.

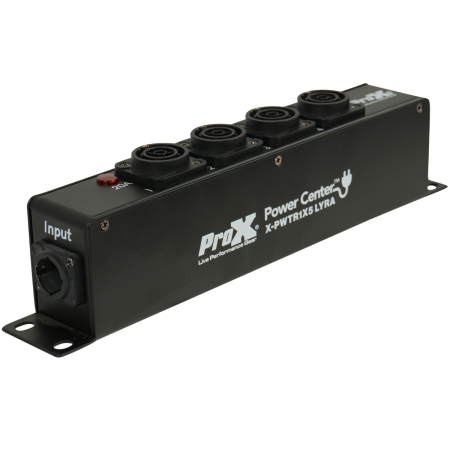

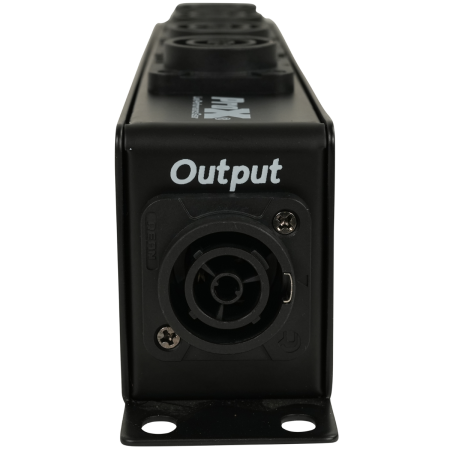

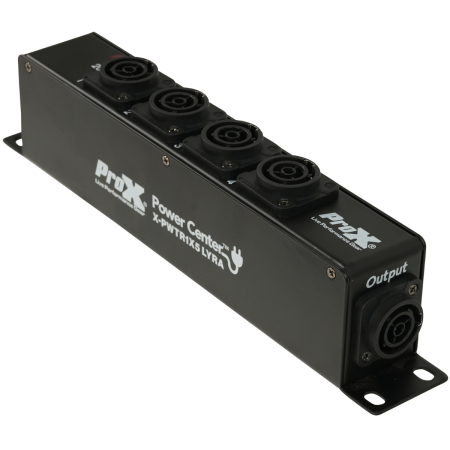

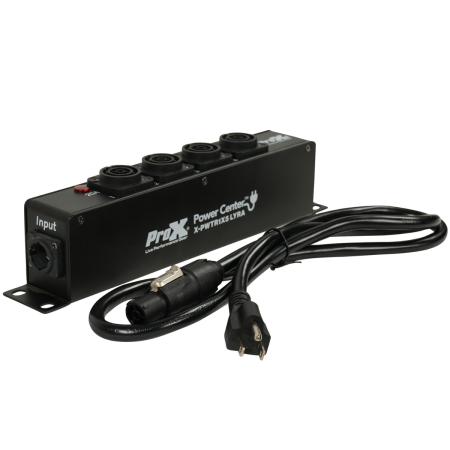

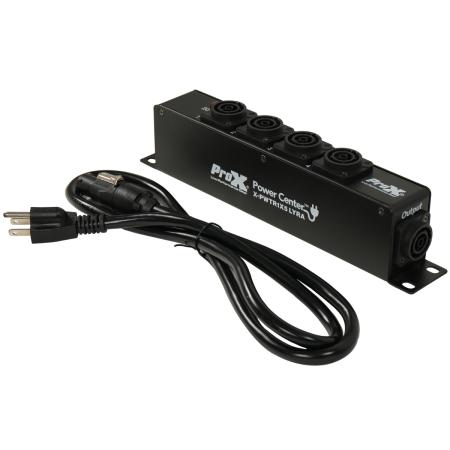

The unit uses a side-mounted REAN by NEUTRIK PowerX RCAC3M-X-000 male locking input connector and five RCAC3F-X-000 female locking outputs. Four outputs are positioned on the top panel, while a fifth is located on the side, providing multiple cable-routing options for truss-mounted and ground-based systems. Twist-lock connections help prevent accidental disconnection during setup and operation.

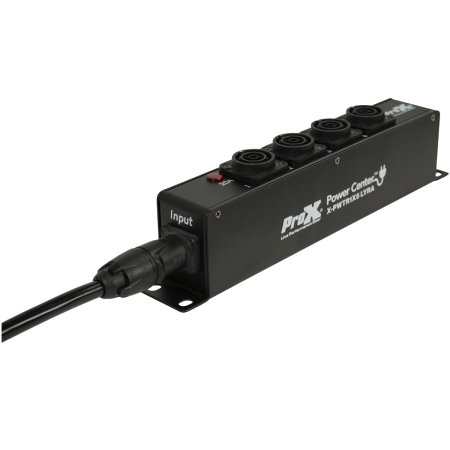

Inside the chassis, 12 AWG pure copper conductors distribute power across the outputs. The unit is specified for up to 20A at 100-240V AC, 50/60 Hz, although the allowable operating current must always remain within the limits of the connected input plug, cable, branch circuit, and power source. The included 12 AWG power cable terminates in a NEMA 5-15P Edison plug and a REAN by NEUTRIK PowerX RCAC3F-X-000 locking connector.

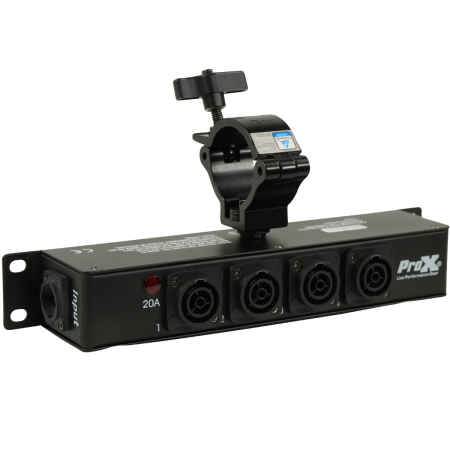

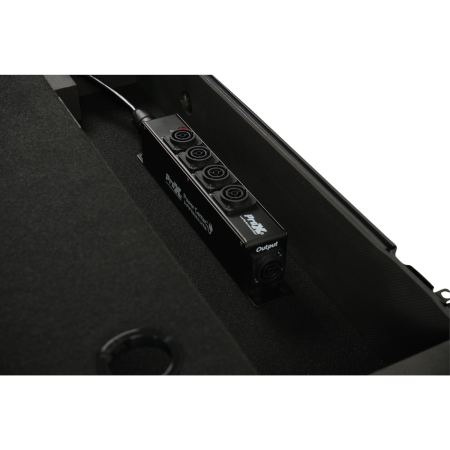

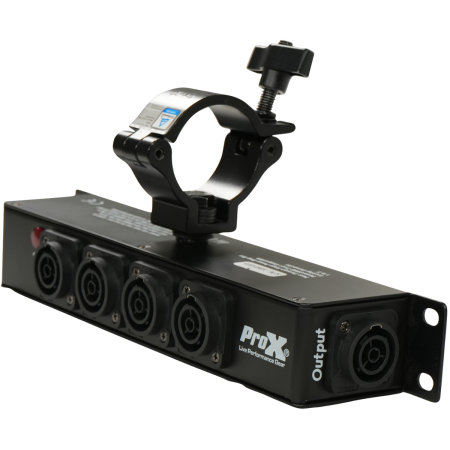

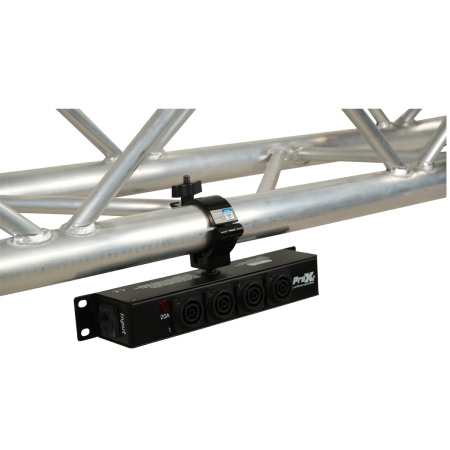

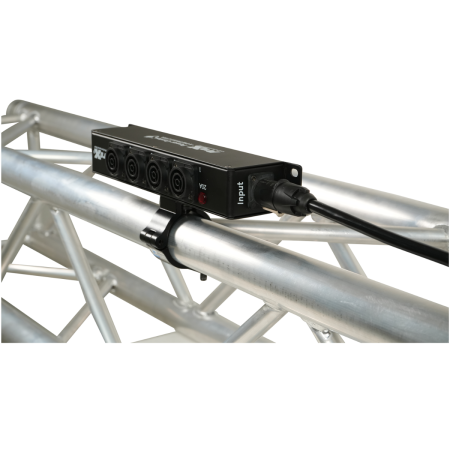

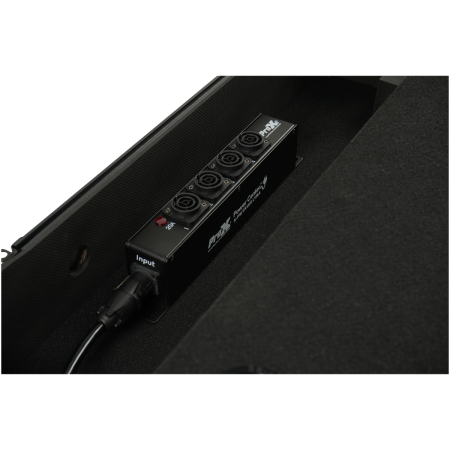

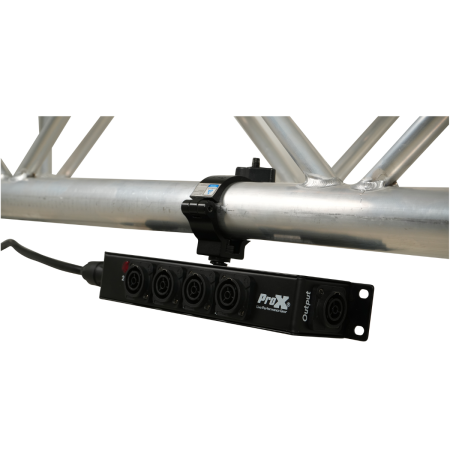

The rugged metal chassis is designed for repeated live-production use while remaining compact at 3.00 x 1.75 x 11.75 inches and 1.80 lb. An M10 threaded rear mounting point allows attachment to compatible truss clamps, while four mounting holes support wall or case installation. The unit can also be integrated into a 1U rack space, although its 11.75-inch length means it does not span the full width of a standard 19-inch rack bay.

X-PWTR1X5LYRA Features

• 1-to-5 locking AC power distribution
• One side-mounted REAN by NEUTRIK PowerX RCAC3M-X-000 male input connector
• Five REAN by NEUTRIK PowerX RCAC3F-X-000 female output connectors
• Four top-mounted outputs and one side-mounted output
• Twist-lock connector design helps prevent accidental disconnection
• Rated for up to 20A at 100-240V AC, 50/60 Hz
• 12 AWG pure copper internal conductors
• Includes 12 AWG input power cable
• Included cable uses NEMA 5-15P Edison male and PowerX RCAC3F-X-000 female connectors
• Metal chassis with rugged steel construction
• M10 threaded rear mount for compatible truss clamps and rigging hardware
• Four mounting holes for wall or case installation
• Compatible with 1U rack installations
• Linkable design for expanding power distribution across larger systems
• UL and cUL tested components
• IP20 rated for indoor use only

X-PWTR1X5LYRA Specifications

• Power Input: 1 x REAN by NEUTRIK PowerX RCAC3M-X-000 male locking connector
• Power Outputs: 5 x REAN by NEUTRIK PowerX RCAC3F-X-000 female locking connectors
• Output Configuration: 4 top-mounted, 1 side-mounted
• Maximum Unit Rating: 20A
• Operating Voltage: 100-240V AC
• Frequency: 50/60 Hz
• Internal Conductors: 12 AWG pure copper
• Included Cable Gauge: 12 AWG
• Included Cable AC Plug: NEMA 5-15P Edison male
• Included Cable Locking Connector: REAN by NEUTRIK PowerX RCAC3F-X-000 female
• Mounting: M10 threaded rear mount and 4 mounting holes
• Rack Compatibility: 1U installation compatible; chassis does not span a full 19-inch rack width
• Ingress Protection: IP20
• Use: Indoor only
• Exterior Dimensions: 3.00 x 1.75 x 11.75 in (H x W x L)
• Weight: 1.80 lb
• Shipping Dimensions: 12.00 x 4.00 x 3.00 in (H x W x L)
• Shipping Weight: 3.00 lb

What's In The Box

• ProX X-PWTR1X5LYRA power distribution box
• 12 AWG power cable with NEMA 5-15P male plug and REAN by NEUTRIK PowerX RCAC3F-X-000 female connector

Safety Information

• Do not exceed the rated capacity of the power distribution unit or any connected plug, cable, branch circuit, or upstream power source.
• IP20 rated for indoor use only.
• Do not expose the unit to rain or moisture.
