ProX XS SLAM18U24

Vertical Shock Mount Rack Case

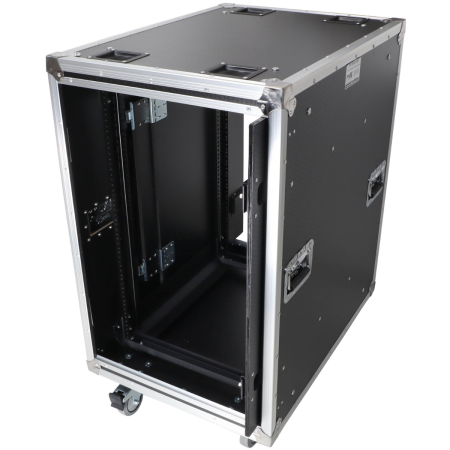

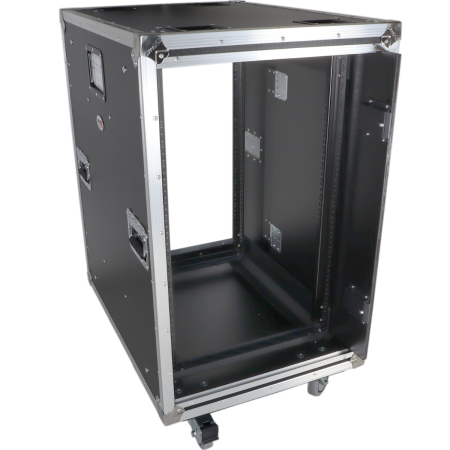

The ProX XS SLAM18U24 is an 18U vertical rack case designed to protect rack-mounted equipment from vibration, impact, and demanding transportation conditions. Its suspended internal rack frame, reinforced plywood construction, sliding front and rear doors, and locking casters make it suitable for touring, studio, broadcast, and professional AV systems.

ProX XS SLAM18U24 Competitive Differences

• Internal suspension system uses four shock-absorbing mounts to isolate sensitive rack equipment from vibration and impact
• 24-inch front-to-rear rack rail depth accommodates amplifiers, processors, power equipment, and other deep rack components
• Provides an additional 4 inches of clearance between the rack frame and rear door for cables and oversized connections
• Front and rear sliding slam doors provide fast, tool-free access without requiring full removable lids
• Laminated birch plywood construction with reinforced aluminum edges supports demanding touring and production use
• Four locking 4-inch caster wheels and recessed side handles simplify transportation and positioning

ProX XS SLAM18U24 Description

The ProX XS SLAM18U24 combines an 18U vertical rack frame with a shock-absorbing suspension system engineered to reduce the transfer of vibration and impact to installed equipment. Four internal shock mounts suspend the rack frame inside the reinforced outer shell, helping protect amplifiers, signal processors, power distribution equipment, and other sensitive electronics during transport.

The internal rack rails provide 24 inches of front-to-rear mounting depth. An additional 4 inches of space between the rack and rear door provides clearance for cable connections, power cords, and components with extended rear panels. Equipment can remain installed, connected, and ready for operation without being removed from the case.

Front and rear sliding slam doors provide quick access to the rack while reducing the handling associated with traditional detachable lids. The laminated birch plywood shell, reinforced aluminum edges, and recessed heavy-duty handles provide the structural strength required for touring, studio, broadcast, and professional AV environments.

Four 4-inch locking caster wheels support efficient movement across venues and production spaces while allowing the case to be secured once positioned. With an assembled weight of 137 pounds, the case is designed as a heavy-duty transport and operating platform for valuable rack-mounted systems.

XS SLAM18U24 Features

• 18U vertical rack configuration
• Internal shock-absorbing suspension system
• Four shock mounts supporting the internal rack frame
• Helps isolate equipment from vibration and transportation impact
• 24-inch front-to-rear rack rail depth
• 4 inches of additional rear cable clearance
• Front and rear sliding slam doors
• Laminated birch plywood construction
• Reinforced aluminum edges
• Recessed heavy-duty side handles
• Four locking 4-inch caster wheels
• Allows installed equipment to be operated without removal
• Suitable for touring, studio, AV, and broadcast applications

XS SLAM18U24 Specifications

• Model: XS-SLAM18U24
• Rack Capacity: 18U vertical
• Rack Unit Height: 1.75 in per rack unit
• Shock Mount System: Four shock-absorbing mounts
• Rack Rail Depth: 24 in front to rear
• Rear Clearance: 4 in between rack frame and rear door
• Door Configuration: Front and rear sliding slam doors
• Construction: Laminated birch plywood with reinforced aluminum edges
• Handles: Recessed heavy-duty side handles
• Casters: Four 4 in locking caster wheels
• Interior Dimensions: 31.50 x 24.00 x 19.00 in (80.01 x 60.96 x 48.26 cm)
• Exterior Dimensions: 37.50 x 33.00 x 24.00 in (95.25 x 83.82 x 60.96 cm)
• Weight: 137 lb (62.14 kg)
• Shipping Dimensions: 40.00 x 34.00 x 26.00 in (101.60 x 86.36 x 66.04 cm)
• Shipping Weight: 149 lb (67.59 kg)
• UPC: 804589621041

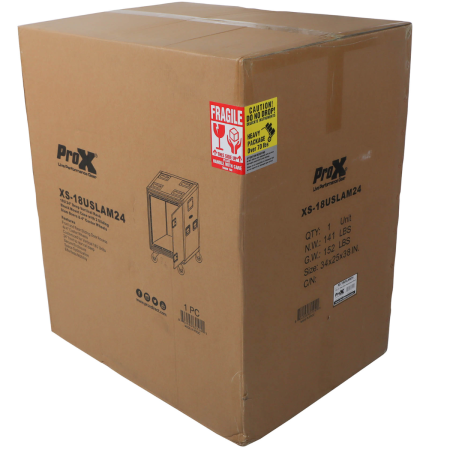

What's In The Box

• ProX XS-SLAM18U24 18U shock mount rack case
• Four 4-inch locking caster wheels

ProX XS-SLAM18U24 (ProX XSSLAM18U24)
