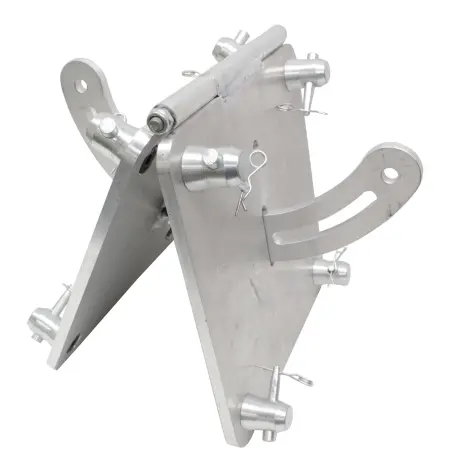

ProX XT-BOOKHINGE

Adjustable 0° to 180° Book-Hinge for F34 Conical Truss

$275.00

Adjustable Book-Hinge for Custom Truss Configurations

The ProX XT-BOOKHINGE Adjustable Book-Hinge Truss Connection offers a versatile truss solution for creating custom angles between truss sections. Designed for mobile DJs, outdoor performances, bands, and permanent installations, this book-hinge adjusts from 0° to 180°, allowing for unique and adaptable truss configurations. With its lightweight yet durable aluminum construction, it’s ideal for easy transport and setup while maintaining the highest standards of safety and performance.

ProX XT-BOOKHINGE Competitive Differences

  • Adjustable hinge from 0° to 180° for custom truss designs
  • Compatible with ProX 12" SQ F34 Conical trussing
  • High-grade, lightweight aluminum for easy handling and setup
  • Includes conical connectors, spigots, and cotter pins for secure assembly
  • Works with many other brands of trussing using standard conical connectors
  • EN-AWT6 6061 Aluminum material with TUV-certified welding for safety and reliability

ProX XT-BOOKHINGE Description

The ProX XT-BOOKHINGE is a highly flexible trussing accessory that enables custom truss angles not possible with standard corners. The adjustable arm locks the desired angle, allowing for creative and secure truss construction projects. Made from premium EN-AWT6 6061 aluminum, this hinge ensures durability while remaining lightweight, making it perfect for mobile setups. With TUV-certified welding, you can trust its safety and long-term reliability. Compatible with standard conical connector systems, the XT-BOOKHINGE integrates seamlessly with other truss brands, providing limitless configuration possibilities.

XT-BOOKHINGE Features

  • Adjustable angle range: 0° to 180°
  • Material: EN-AWT6 6061 Aluminum
  • Includes conical connectors, spigots, and cotter pins (8 sets)
  • Lightweight and durable design
  • TUV-certified aluminum welding for safety

XT-BOOKHINGE Specifications

  • Height: 11.42 in (290 mm)
  • Width: 11.42 in (290 mm)
  • Weight: 19 lbs (8.6 kg)
  • Main Tube Diameter: 2 in (50 mm)
  • Main Tube Wall Thickness: 0.08 in (2 mm)
  • Braces: 0.75 in (20 mm)
  • Shipping Dimensions: 14 in x 14 in x 13 in
  • Shipping Weight: 20 lbs (9.1 kg)
  • UPC: 019372412649
