Name: ProX XT-F32-492 | 4.92ft I-Beam Truss Segment, 2mm Wall Thickness
Brand: ProX
SKU: 116018
Price: 186.99 USD
Availability: InStock

Durable Lightweight Aluminum Truss for Lighting and Rigging

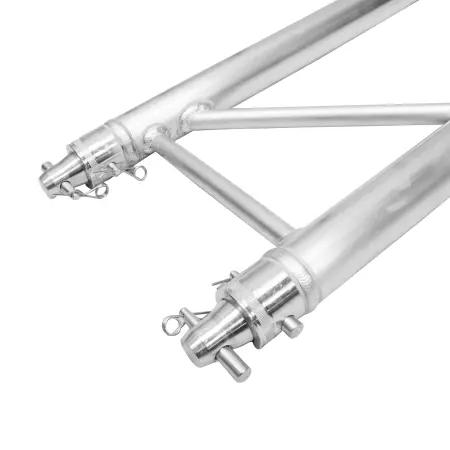

The ProX XT-F32-492 is a 4.92-foot (1.50m) I-beam segment truss designed for versatility and strength in compact builds. Ideal for mobile DJs, live events, trade shows, and permanent installations, this 2-point truss combines a lightweight structure with professional-grade durability. The 2mm wall thickness offers increased load capacity without compromising portability.

ProX XT-F32-492 Competitive Differences

High-strength EN-AWT6 6082 aluminum construction
2mm (0.08in) wall thickness for enhanced load-bearing capability
Lightweight design ideal for portable or fixed installations
Industry-standard conical connectors for cross-brand compatibility
TUV-certified aluminum welding for safety and performance
Compatible with a wide range of corners, base plates, and accessories
Includes connecting hardware

ProX XT-F32-492 Description

The XT-F32-492 by ProX is part of the F32 truss series, engineered for high-performance staging and rigging setups. Its compact yet durable 2-point I-beam design is suited for environments ranging from exhibitions and trade shows to live productions and nightclub installations. Built with precision using EN-AWT6 6082 aluminum, this segment is manufactured in-house by ProX to ensure tight quality control and consistency. The unit includes a tolerance-free conical connector system, ensuring seamless mating with other trussing components from ProX or compatible manufacturers. The .08in (2mm) wall thickness gives it the edge for medium-duty applications where a strong and stable truss is needed, yet weight needs to be kept to a minimum. This truss segment comes with a full set of connection hardware and is backed by TUV certification, demonstrating its compliance with international safety standards.

XT-F32-492 Features

Made from EN-AWT6 6082 aluminum
TUV-certified aluminum welding
Standard conical connection system
Includes one set of connection hardware
Lightweight and easy to handle
Compatible with many other brand trusses
Excellent for mobile and fixed installations

XT-F32-492 Specifications

Length: 4.92ft (1.50m)
Width: 11.42in (290mm)
Main tube diameter: 2in (50mm)
Wall thickness: 0.08in (2mm)
Brace diameter: 0.75in (20mm)
Material: EN-AWT6 6082 aluminum
Shipping dimensions: 60.00in x 12.00in x 3.00in
Shipping weight: 9.00 lbs
UPC: 019372410416

Pro X 4.92ft I-Beam (ProX XTF32 492)

Brand	ProX
Name	ProX XT-F32-492 \| 4.92ft I-Beam Truss Segment, 2mm Wall Thickness
Primary Category	Truss

Build Material	EN-AWT6 6082 aluminum
Dimensions	60.00in x 12.00in x 3.00in
Included Accessories	One set of connection hardware
Mounting Options	Standard conical connection system compatible with many other brand trusses
Weight	9.00 lbs lbs
Width	11.42in in

Warranty Length	TUV-certified aluminum welding for safety and performance years

High-strength EN-AWT6 6082 aluminum construction; 2mm (0.08in) wall thickness for enhanced load-bearing capability; Lightweight design ideal for portable or fixed installations; Industry-standard conical connectors for cross-brand compatibility; TUV-certified aluminum welding for safety and performance; Compatible with a wide range of corners, base plates, and accessories; Includes connecting hardware.

Length: 4.92ft (1.50m); Width: 11.42in (290mm); Main tube diameter: 2in (50mm); Wall thickness: 0.08in (2mm); Brace diameter: 0.75in (20mm); Material: EN-AWT6 6082 aluminum; Shipping dimensions: 60.00in x 12.00in x 3.00in; Shipping weight: 9.00 lbs; UPC: 019372410416.
