ProX XT-F32TOPC

Roof Truss Element

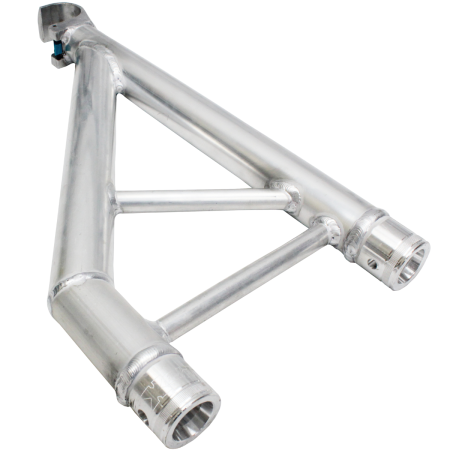

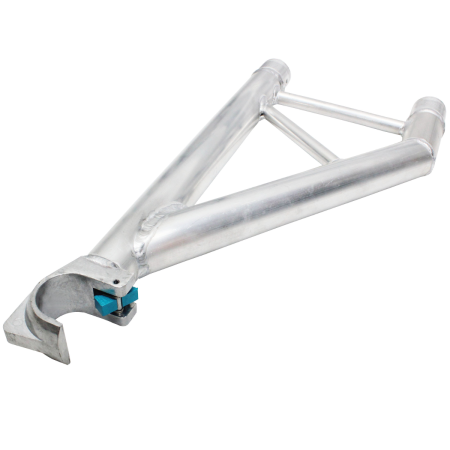

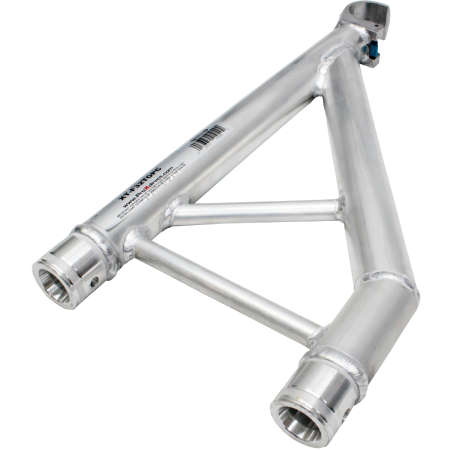

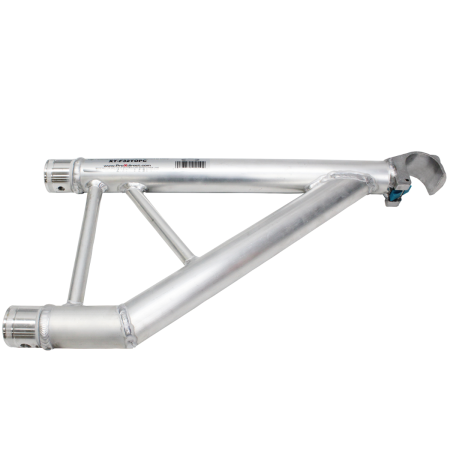

ProX XT-F32TOPC is a specialty F32 roof element designed to transition from F32 2-point truss to a single clamp on the upper chord for attachment to roof support truss structures. Its compact aluminum design is useful for event technology, exhibition builds, shop construction, and low-room-height horizontal mounting applications.

ProX XT-F32TOPC Competitive Differences

• Specialty F32 truss part designed for stage roofing applications
• Transitions from 2-point F32 truss to 1-point truss with clamp
• 23.622 in overall length with 19.685 in extension length
• EN-AWT6 6082 aluminum construction with 2mm tube walls and TUV certified aluminum welding

ProX XT-F32TOPC Description

The ProX XT-F32TOPC is built for roof support applications where an F32 truss system needs to transition to a single clamp on the upper chord. This specialty truss component helps create practical support configurations for stage roofing, temporary event structures, exhibitions, and retail display builds.

Designed for horizontal or vertical F32 truss mounting, the XT-F32TOPC is especially useful in event technology and low-room-height applications. Its compact 0.5 meter extension length gives installers a purpose-built option for attaching F32 truss structures to roof support systems.

Manufactured from EN-AWT6 6082 aluminum with 2mm tube walls, this component balances lightweight handling with dependable truss construction. TUV certified aluminum welding and included connecting hardware support safe, consistent integration with compatible F32 truss systems.

XT-F32TOPC Features

• Special F32 truss part for stage roofing
• Transitions from 2-point F32 truss to 1-point truss with clamp
• Single side clamp on the upper chord for roof support attachment
• Suitable for event technology, exhibition, and shop construction applications
• Can be mounted horizontally or vertically with compatible F32 truss
• Ideal for roof structures and low-room-height horizontal mounting
• Manufactured from EN-AWT6 6082 aluminum
• 2mm tube walls
• TUV certified aluminum welding
• Includes one set of connecting hardware

XT-F32TOPC Specifications

• Truss Type: F32 roof element with single side clamp
• Application: 2-point to 1-point truss transition for roof support
• Overall Length: 23.622 in (60 cm)
• Extension Length: 19.685 in (0.5 m)
• Tube Wall Thickness: 2 mm
• Material: EN-AWT6 6082 aluminum
• Mounting Orientation: Horizontal or vertical with compatible F32 truss
• Connector Hardware: One set included
• Shipping Dimensions: 3.00 x 13.00 x 24.00 in
• Shipping Weight: 6.00 lb
• Suggested Shipping Method: Parcel

What's In The Box

• ProX XT-F32TOPC roof element with single side clamp
• One set of connecting hardware

ProX XT-F32TOPC (ProX XTF32TOPC)
