ProX XT-HINGEX4

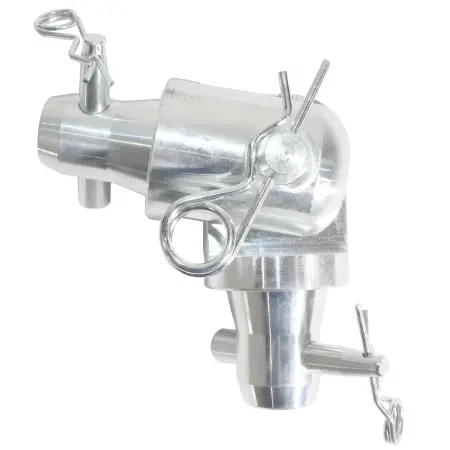

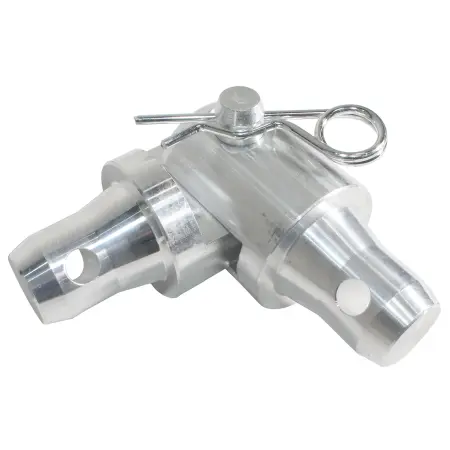

The ProX XT-HINGE Pack of (4) Single Tube Hinge Block fits standard F31 - F32 - F34 Conical 2” Truss tubes and can make 90 deg., 120 deg. and 135 deg. corners.  The hinge sets, mainly used as hinges in towers, are also usable to make various shapes with standard lengths. Mix and combine different pipes and hinges to create unique shapes, angles, and displays. Made from high-grade 6082-T6 aluminum and securely fastened with locking pins and cotter keys, the Single Tube Hinge Block can carry the weight of most stage and lighting while giving you a one of a kind display.

ProX specializes in high-quality, general-purpose aluminum lighting and stage trussing designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications. Our products are built using 6082-T6 Aluminum Alloy compositions. This lightweight, corrosion-resistant aluminum has a very high tensile strength, giving you the support and stability you need. The ProX Truss Conical Coupling System allows for genderless trusses, providing a more precise line up of chords and fastening points, while the conical shape of the couplers helps to maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly quick and easy with very few tools needed to complete set up.

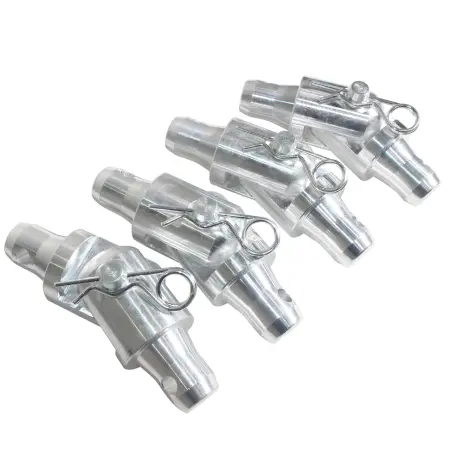

Comes packaged with:

(4) Male Tube Hinge
(4) Female Hinge
(12) Locking Pins
(12) Pin Clips

FEATURES:

In-house ProX Manufactured Truss
Built to exacting specifications
TUV Certified Welding & Processes
Compatible with most Conical Coupled trussing
Includes tapered shear pins with clips and 2 conical coupling

SPECIFICATIONS:

XT-HINGE (4)   F31 F32 F34 Conical Single Tube Hinge Unit


To Fit
Standard 2" Size Truss Configurations.  F31, F32, F34

Pro X XT-HINGE X4 (ProX XT-HINGE-X4)
