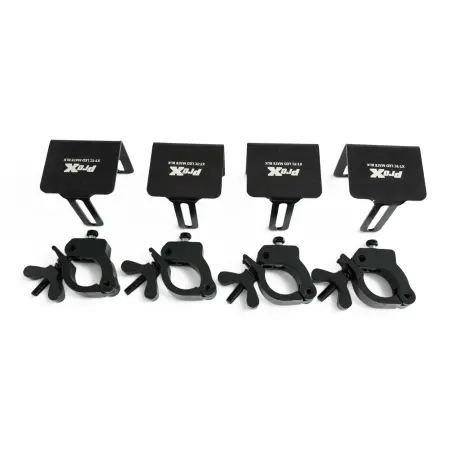

ProX XT-TCLEDMATEBLKX4

LED Video Panel Truss Clamps

ProX XT-TCLEDMATEBLKX4 is a set of four direct LED video panel clamps built for clean, low-profile attachment to 2" truss pipe or Schedule 40 pipe. Designed for production, touring, rental, and installation environments, this clamp set helps create a secure panel-to-pipe connection without requiring an extension arm.

ProX XT-TCLEDMATEBLKX4 Competitive Differences

• Set of four direct-mount LED video panel clamps for consistent LED wall hardware setups
• Designed to mount 1, 2, or 4 LED panels with a load capacity up to 150 lb
• Includes a 2" aluminum side clamp with each unit, reducing the need for separate clamp purchases
• Industrial-strength stainless steel mounting plate fits M8 and M10 bolts
• Low-profile direct-mount design eliminates the need for an extension arm

ProX XT-TCLEDMATEBLKX4 Description

The ProX XT-TCLEDMATEBLKX4 is designed for direct LED video panel mounting to 2" truss pipe or Schedule 40 pipe. Its direct-attach layout keeps the connection tight and streamlined, making it useful for LED wall builds where a clean profile and solid mounting point are important.

Each unit includes a 2" aluminum side clamp and a stainless steel mounting plate, giving production crews the key hardware needed for panel-to-pipe mounting in one package. The mounting plate is built from industrial-strength stainless steel and is designed to fit both M8 and M10 bolts.

This set is specifically designed to support 1, 2, or 4 LED panels and can withstand up to 150 lb. The black finish helps the hardware stay visually discreet behind LED panels, keeping attention on the video display rather than the rigging hardware.

As part of the ProX LED Video Panel Wall Support ecosystem, the ProX XT-TCLEDMATEBLKX4 is suited for truss-based LED wall installations, ground support builds, touring systems, rental inventories, live events, concerts, trade shows, and corporate productions.

XT-TCLEDMATEBLKX4 Features

• Set of 4 direct LED video panel to 2" truss pipe clamps
• Designed for use with 2" truss pipe or Schedule 40 pipe
• Direct-mount design for a clean, low-profile panel-to-pipe connection
• No extension arm required
• Includes 2" aluminum side clamp with each unit
• Mounting plate made from industrial-strength stainless steel
• Mounting plate fits M8 and M10 bolts
• Designed to mount 1, 2, or 4 LED panels
• Load capacity up to 150 lb
• Black finish for a discreet, stage-ready appearance
• Part of the ProX LED Video Panel Wall Support ecosystem
• Ideal for truss-based LED wall installations, touring, rental, live events, trade shows, and corporate productions

XT-TCLEDMATEBLKX4 Specifications

• Product Type: Direct LED video panel to truss pipe clamp set
• Quantity: Set of 4 clamps
• Compatible Pipe Size: 2" truss pipe or Schedule 40 pipe
• Load Capacity: Up to 150 lb
• Mounting Plate Material: Industrial-strength stainless steel
• Clamp Material: Aluminum side clamp
• Mounting Bolt Compatibility: M8 and M10
• Finish: Black
• Individual Box Dimensions: 5.00 x 6.00 x 10.00 in
• Individual Shipping Weight: 10.00 lb
• Master Carton Dimensions: 11 x 11 x 11 in
• Master Carton Shipping Weight: Approximately 35 lb
• UPC: 798239009146

What's In The Box

• 4 ProX XT-TCLEDMATEBLKX4 direct LED video panel clamps
• 4 included 2" aluminum side clamps

Pro X XT-TCLEDMATEBLK X4 (ProX XT-TCLEDMATE BLK X4)
