ProX XT-SQPL328
3.28 FT 1M F34 Professional Ladder Truss Segment

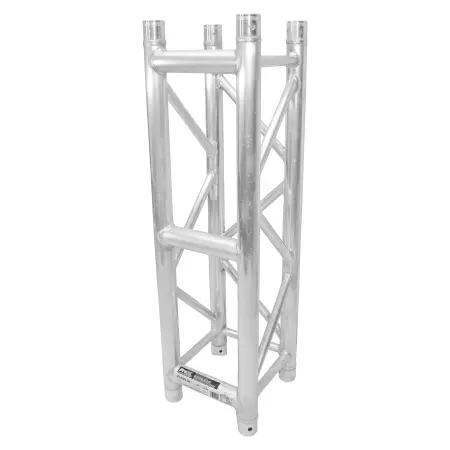

ProX XT-SQPL328 | 3.28 FT 1M F34 Professional Ladder Truss Segment

The ProX XT-SQPL328 is a 3.28 ft (1 meter) F34 conical truss section with a ladder brace on one side, designed for enhanced vertical load capacity. It features 3mm thick tube walls, providing strength and durability for various applications, including indoor and outdoor lighting rigs, live events, and more.

Key Features

• 3.28 ft (1 meter) F34 ladder truss segment with ladder brace on one side
• 3mm wall thickness for enhanced strength
• Compatible with standard F34 truss systems
• Designed for vertical installation to aid climbing and safety
• Includes truss pins and clips
• TÜV Rheinland® certified welding

Competitive Differences

• Thicker tube walls for increased load capacity
• Compatible with multiple truss brands using conical connectors

Full Description

The ProX XT-SQPL328 ladder truss segment is engineered for professional use, featuring a 3mm wall thickness and a ladder brace for safe climbing. The truss segment is ideal for use in various staging applications, ensuring robust support and compatibility with standard F34 truss systems. Its vertical installation design makes it perfect for truss roofing systems and indoor structures, providing easy and secure access.

Features

• 3.28 ft (1 meter) F34 ladder truss segment with ladder brace on one side
• 3mm wall thickness for enhanced strength
• Compatible with standard F34 truss systems
• Designed for vertical installation to aid climbing and safety
• Includes truss pins and clips
• TÜV Rheinland® certified welding

Specifications

• Height: 11.42 in (290 mm)
• Width: 11.42 in (290 mm)
• Weight: 21 lb per 3.28 ft (9.5 kg per meter)
• Main Tube: 2 in (50 mm)
• Premium Tubing - Wall Thickness: 1/8 in (3 mm)
• Braces: 0.75 in (20 mm)
• Ladder Steps: 2 in (50 mm)
• Ladder Step Spacing: 9.84 in (250 mm)
• Material: EN-AWT6 6082 Certified Aluminum Welding
• Exterior Dimensions: 11.50 x 11.50 x 39.36 in
• Exterior Weight: 23.00 lbs
• Shipping Dimensions: 13.00 x 13.00 x 40.00 in
• Shipping Weight: 25.00 lbs

What's in the Box

• ProX XT-SQPL328 Ladder Truss Segment
• Truss pins and clips

Accessories

• Additional truss segments
• Truss corner pieces

Pro X XT SQPL328 (ProX XT-SQPL-328)
