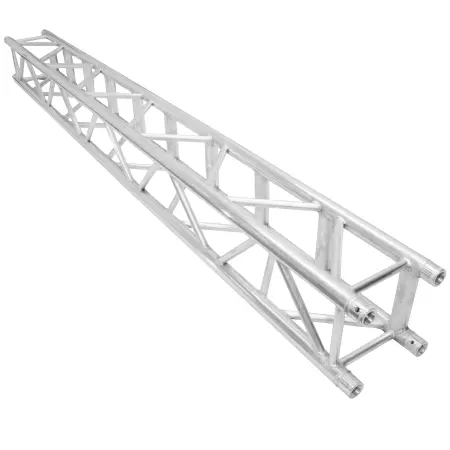

ProX XT-SQPL984 | 9.84 FT F34 Ladder Truss Segment
$1,048.99
ProX XT-SQPL984 9.84 FT 3M F34 Professional Ladder Truss Segment 3mm Tubing is a Standard F34 Conical Truss Section with a ladder brace on one side (for safe climbing and with thicker tube walls) for enhancing vertical load capacity in combination with standard main rig trussing. Prox Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and professional trussing solution great for creating indoor or lighting rigs for Live Evnts, Parties, Galas, Nightclubs, Tradeshows, Mobile productions, and more.
The Easy to Climb, Professional Ladder Truss is a square truss that has one side as a ladder with 2" tubes with 9 3/4" spacing and utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your need.
It is important to note that the ladder truss is designed to be installed in a vertical orientation. It is typically used at the lift/support points of a truss roofing system or indoor truss structure to make climbing of the structure easier and safer. It should not normally be used in a horizontal position. However, because it has 3mm wall tubes it will still be as strong as the 2mm tube standard XT-SQ trussing and the loading chart for the XT-SQ Truss should be used. The ladder side has no diagonal bracing so if ever used horizontally the ladder side should be oriented down.
VERY IMPORTANT: Always know your load weight for your equipment:
DOWNLOAD PDF – F34 TRUSS LOADING CHART
XT-SQPL SERIES DIMENSIONS:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9.5kg per meter
Main Tube: 2in / 50mm
Premium Tubing - Wall Thickness: 1/8in / 3mm
Braces: .75in / 20mm
Ladder Steps: 2in / 50mm
Ladder Step Spacing: 9.84in / 250mm
Material: EN-AWT6 6082 Certified Aluminum Welding
TÜV Rheinland® is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TÜV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality. ProX Truss products utilize industry standard dimensions to be compatible to connect to and work with, many other manufacturers F31/F32/F34 trussing products with conical connectors.
Features
In-house Manufacturing to Specifics
TÜV Certified Welding
Compatible with most Conical Truss
Includes Truss Pins & Clips
To Fit
Standard F34 Square Conical Truss
Shipping Dimensions
120.00"L x 13.00"D x 13.00"H
Shipping Weight: 60.00 lbs
Suggested Shipping Method: LTL
UPC
019372409977
| Brand | ProX |
| Name | ProX XT-SQPL984 | 9.84 FT F34 Ladder Truss Segment |
| Primary Category | Ladder Truss Segment |
| Build Material | EN-AWT6 6082 Certified Aluminum Welding |
| Dimensions | 120.00"L x 13.00"D x 13.00"H |
| Height | 11.42in in |
| Weight | 21lb per 3.28 ft lb |
| Width | 11.42in in |
| Warranty Length | Not specified years |
