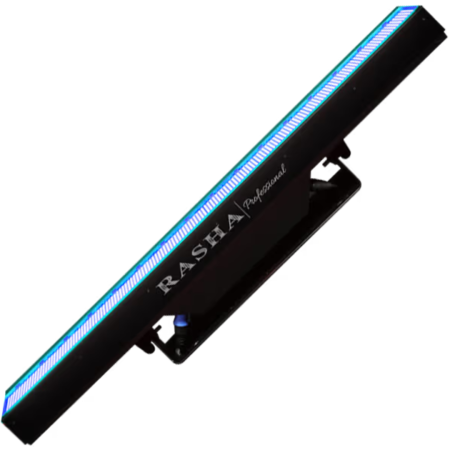

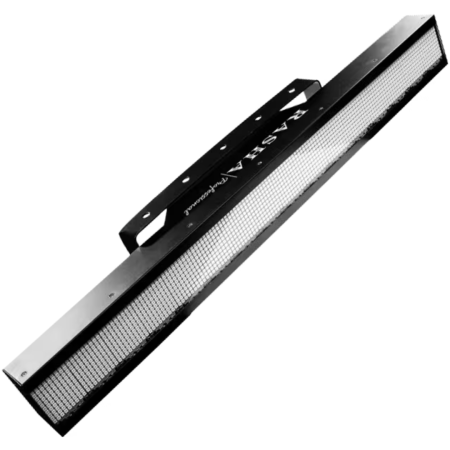

Pixel-Mappable RGB LED Bar
Rasha Nash Bar is a high-output, multi-color LED strobe and pixel bar that brings precision control and intense visual impact to any stage or lighting design. With 1,440 RGB LEDs across 16 pixel-mappable segments, it delivers bright, uniform color washes and stunning dynamic effects. The 20 Hz strobe adds punch, while built-in macros and auto programs offer creative control straight out of the box.
Rasha Nash Bar Competitive Differences
- 3,500 lux brightness with 60° beam angle
- 16 pixel-mappable segments with 18 built-in FX macros
Rasha Nash Bar Description
The
Rasha Nash Bar is engineered for professionals who need advanced visual flexibility with high-output brightness. Its sleek linear design makes it ideal for wall washing, pixel effects, blinder applications, and strobe bursts in clubs, concerts, or broadcast sets. The RGB color engine delivers full-spectrum mixing, enhanced by 16 individually controllable pixel segments for detailed animations and chases.
Equipped with DMX control (from 3 to 56 channels), sound-activation, and auto-run modes, it easily adapts to both automated shows and complex lighting rigs. The Nash Bar includes 18 FX macros and a virtual color wheel for quick programming, while the high-speed 20 Hz electronic strobe provides crisp, high-energy effects.

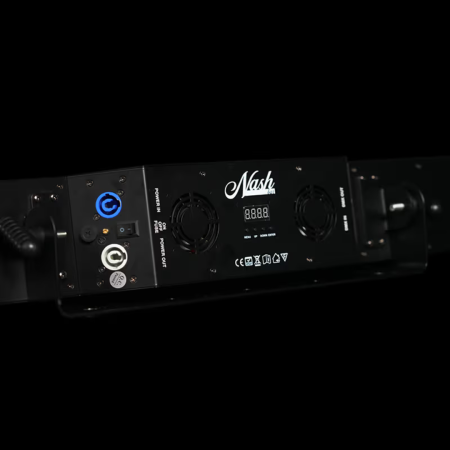

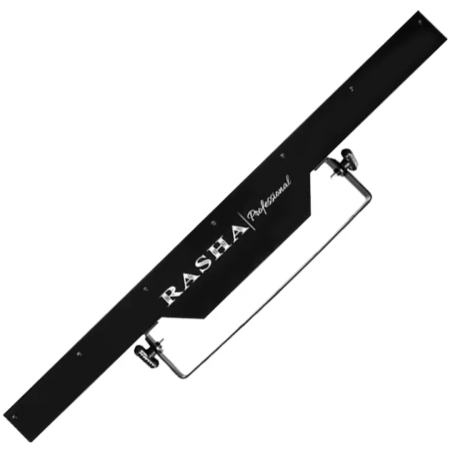

The active cooling system ensures stable operation under high-demand use. Housed in durable sheet metal with a satin finish and clear acrylic lens, the Nash Bar is rugged enough for touring yet refined enough for installs. With adjustable yoke mounting, PowerCON I/O, and DMX in/out, it's ready to integrate seamlessly into your lighting environment.
Model Features
- 1,440 RGB LEDs across 16 pixel-mappable segments
- 3,500 lux at 1 meter with 60° beam angle
- Electronic strobe up to 20 Hz
- 18 dynamic FX macros with speed/direction control
- 7 auto-run programs with adjustable speed
- DMX control with modes from 3 to 56 channels
- Durable sheet metal housing with active cooling
Model Specifications
- Max Brightness: 3,500 lux @ 1 m
- Beam Angle: 60°
- Power Consumption: 255W max
- Dimensions: 38.9 x 2.8 x 4.3 in (987 x 72 x 110 mm)
- Weight: 17 lb (7.7 kg)
What's In The Box
- Rasha Nash Bar fixture
- Yoke arm with T-handle tension screws
- Edison to PowerCON power cable
- 3-pin DMX cable
- User manual
RASHA Nash Bar
(Rasha RP-NBAR-BLK)
