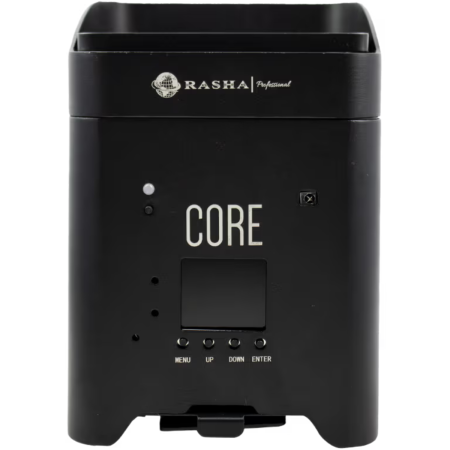

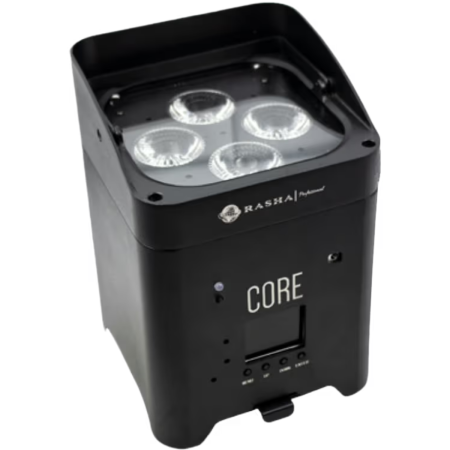

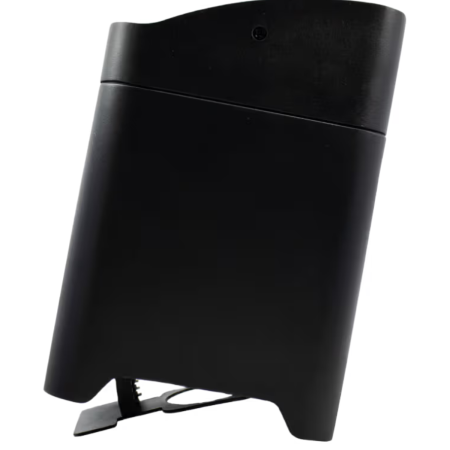

Rasha RP-HXCOR-BLK

Battery-Operated LED Uplight

The Rasha RP HXCOR BLK Core is a compact battery-operated LED uplight featuring four 18W Hex RGBAW+UV LEDs, a 25° beam angle, and multiple wireless control options. Designed for mobile DJs, event production, stages, venues, and architectural lighting, it combines up to 10 hours of battery operation with smooth color mixing, advanced dimming, and flexible floor or truss mounting.

Rasha RP HXCOR BLK Competitive Differences

• Four 18W Hex RGBAW+UV LEDs provide six-color mixing for saturated colors, pastels, white tones, amber, and UV effects
• Built-in 14,000 mAh Li-Ion battery provides up to 10 hours of operation on a full charge
• Wi-Fi app control supports compatible iOS and Android devices for convenient wireless programming
• Integrated 2.4 GHz wireless DMX supports cable-free lighting control at distances up to 1000 ft
• Advanced 18-bit dimming provides smooth fades and precise 0–100% intensity control
• 25° optics are designed to produce evenly blended output without harsh edges or visible hotspots
• Compact 5.2 lb metal housing makes the fixture easy to transport and position for mobile applications

Rasha RP HXCOR BLK Description

The Rasha RP HXCOR BLK Core combines portable battery power with versatile RGBAW+UV color mixing for event and stage lighting applications. Four 18W Hex LED chips provide a broad color palette, while 25° optics help create smooth, evenly blended projection suitable for uplighting walls, scenic elements, stages, and architectural surfaces.

A built-in 14,000 mAh Li-Ion battery provides up to 10 hours of operation, reducing the need to run power cables throughout a venue. The battery charges in approximately four hours, while PowerCON AC input and thru connections allow conventional powered operation when required. Its compact metal enclosure measures approximately 5.375 x 5.375 x 7.750 inches and weighs just 5.2 lb for convenient mobile transport.

Control options include Wi-Fi app control for iOS and Android, wired DMX, 2.4 GHz wireless DMX, IR remote control, sound-active operation, automatic programs, and static color modes. Six- and 10-channel DMX modes allow the Core to integrate into both simple and more detailed lighting systems, while a built-in microphone offers adjustable sensitivity for music-triggered effects.

For visual programming, the fixture offers 38 preset colors, variable-speed strobe and pulse effects, random strobe, built-in shows, and advanced 18-bit dimming. An adjustable folding mounting bracket supports floor or truss placement in any orientation. The IP20-rated enclosure is intended for indoor use in applications such as weddings, private events, corporate functions, clubs, theaters, houses of worship, and mobile DJ productions.

RP HXCOR BLK Features

• Battery-operated LED uplight
• Four 18W Hex RGBAW+UV LED chips
• Red, green, blue, amber, white, and ultraviolet color mixing
• 25° minimum LED beam angle
• 18-bit electronic dimming
• 0–100% dimming range
• 38 preset colors
• Variable-speed strobe and pulse effects
• Random strobe effect
• Built-in 14,000 mAh Li-Ion battery
• Up to 10 hours of battery operation
• Approximately 4-hour charging time
• Wi-Fi app control
• Compatible with iOS and Android devices
• 2.4 GHz wireless DMX control
• Wireless DMX range up to 1000 ft
• IR remote control with up to 10 ft control distance
• Wired DMX control via 3-pin locking XLR connections
• 6- and 10-channel DMX modes
• Sound-active operation with adjustable microphone sensitivity
• Auto, static, music-triggered, and built-in show modes
• Wireless master/slave linking
• 1.8-inch LED menu display
• Four-button menu interface
• Adjustable folding mounting bracket
• Can be operated in any orientation
• Metal housing
• IP20 rated for indoor use
• Two low-noise cooling fans
• 50,000-hour rated LED lifetime to greater than 70% luminous output under manufacturer test conditions

RP HXCOR BLK Specifications

• Light Source: 4 x 18W Hex RGBAW+UV LEDs
• Color Mixing: RGBAW+UV
• Beam Angle: 25° minimum
• Electronic Dimming: 0–100%, 18-bit
• Color Presets: 38
• DMX Channels: 6 / 10
• Wireless DMX: 2.4 GHz
• Wireless DMX Control Distance: Up to 1000 ft (304.8 m)
• IR Control Distance: Up to 10 ft (3.05 m)
• DMX Data In/Thru: 3-pin locking XLR
• AC Power In/Thru: PowerCON male/female
• Input Voltage: 110–240 VAC, 50/60 Hz, auto-ranging
• Power Consumption: 130W, 1.1A at 120V / 60Hz
• Fuse: T5A
• Battery: 14,000 mAh Li-Ion
• Battery Runtime: Up to 10 hours
• Battery Charger: 2A
• Charging Time: Approximately 4 hours
• Display: 1.8 in LED menu display
• Menu Interface: 4-button
• Housing: Metal
• Lens: Plastic
• Protection Rating: IP20
• Installation Location: Indoor use only
• Mounting: Adjustable folding bracket
• Operating Orientation: Any
• Cooling: 2 low-noise fans
• Maximum Ambient Temperature: 122°F (50°C)
• Minimum Ambient Temperature: 32°F (0°C)
• Dimensions: 5.375 x 5.375 x 7.750 in (136.5 x 136.5 x 196.9 mm)
• Weight: 5.2 lb (2.36 kg)
• Color: Black
• UPC: 766429777786

What's In The Box

• 1 x Rasha Core uplight
• 1 x 3 ft power cable
• 1 x IR remote
• 1 x Quick reference guide

RASHA RP-HXCOR-BLK (Rasha RPHXCORBLK)
